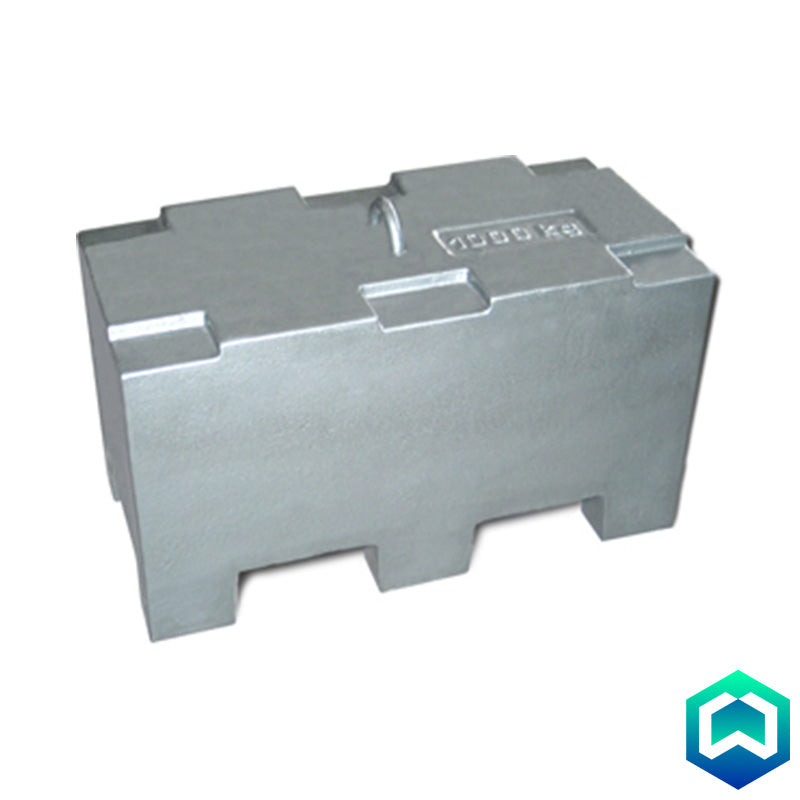

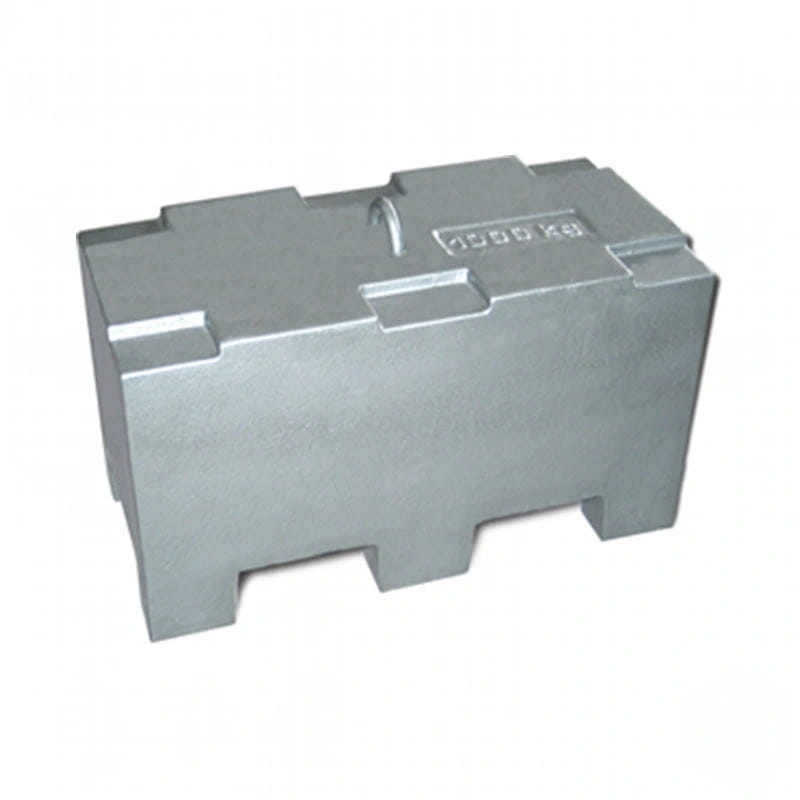

CIBE M1 High Capacity Calibration Weights

CIBE M1 Precision Class Block Weights for Large Capacity Scales

By Cibe

The CIBE M1 Large Capacity Calibration Weights are robust, high-accuracy weights specifically designed for the calibration and verification of weighbridges and high-capacity weighing systems. Conforming precisely to the OIML-R111 Recommendation in M1 class, these weights are suitable for checking and calibrating Class III scales with up to 10,000e divisions, and are an indispensable tool for legal metrology and ISO quality weighing instrument verification. Available in painted cast iron (100kg–1000kg) or painted steel with ferrous filler (2000kg), with optional ACCREDIA (EA) calibration certificate.

select weight
ACCREDIA (EA) Certificate:
£710.00
Product Information

Features:

  • OIML-R111 Compliant: Fully adheres to the international OIML-R111 Recommendation, ensuring global metrological consistency and reliability.
  • M1 Precision Class: Guarantees a high level of accuracy, essential for calibrating and verifying large-capacity weighing instruments and weighbridges to exacting standards.
  • Robust Construction: Built for demanding industrial environments, with two construction variants to suit the application:
    • WM1PK2000: Painted steel with ferrous filler for exceptional density and durability.
    • WM1VK100, WM1VK200, WM1VK500, WM1VT1: Painted cast iron, offering inherent strength and longevity.
  • Hermetically Sealed Calibration Slot: Equipped with a watertight, high-density lateral calibration bush, protecting internal calibration material and ensuring greater accuracy stability over time.
  • Practical Handling: Designed for efficient logistics — stackable, compact, and transportable by trolley or crane, optimising storage and handling in industrial settings.
  • Initial Verification Stamp: Available upon request, providing legal metrological verification where required.
  • ACCREDIA (EA) Calibration Certificate: Available upon request, providing internationally recognised traceability and verification of the weight's accuracy.

Applications:

  • Weighbridge Calibration: Verification and calibration of high-capacity weighbridges and vehicle weighing systems.
  • Legal Metrology: Calibration of trade-approved weighing instruments in regulated environments.
  • Industrial Weighing: Routine checking of large-capacity platform scales and industrial weighing systems.
  • ISO Quality Regimes: Ideal for weighing instrument verification within ISO quality management systems.

Compliance:

  • Metrological Standard: OIML-R111, M1 Accuracy Class
  • Optional Certification: ACCREDIA (EA) Calibration Certificate available on request
Specification

Construction:

  • Painted steel with ferrous filler: (WM1PK2000)
  • Painted cast iron (WM1VK100-WM1VK200-WM1VK500-WM1VT1)

Available Weights: 100kg, 200kg , 500kg, 1000kg, 2000kg
Downloads

Please click here for the CIBE M1 Precision Class Large Capacity Weights datasheet
