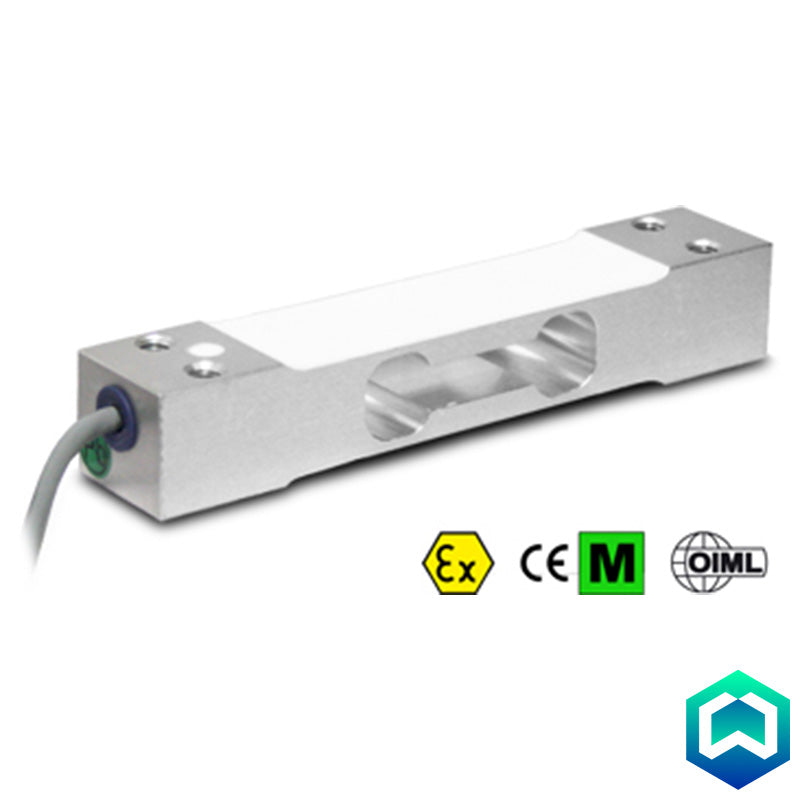

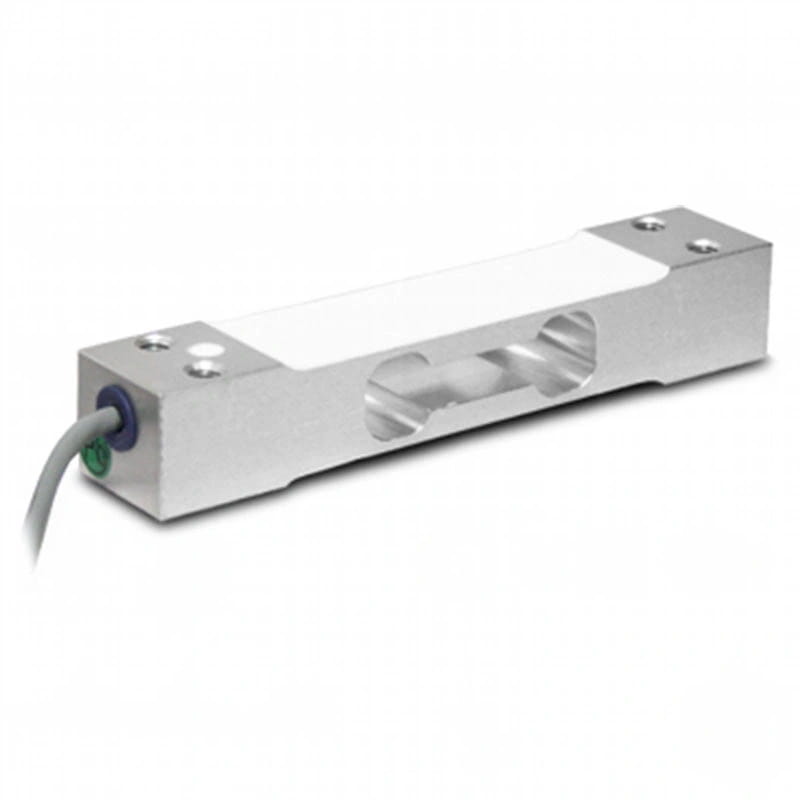

Dini Argeo ATEX SPO Single Point Load Cell

The Dini Argeo SPO series single point load cell is designed for accurate and reliable weighing of off-center loads, with maximum platform dimensions of up to 300 x 300 mm. This model is available in an ATEX certified version, making it suitable for use in hazardous areas with the following protection methods according to the CCATEX certificate.

Model

£121.00
Product Information

Features:

  • OIML R60 C3 Precision Class: Ensures high accuracy and reliability for demanding weighing applications.
  • Off Center Load Compensated: Guarantees accurate readings regardless of the load's position on the platform, within specified limits.
  • Aluminium Alloy Construction: Provides a lightweight yet robust and cost-effective sensor solution.
  • IP67 Protection: Offers excellent resistance to dust and water ingress, ensuring reliable performance in various industrial environments.
  • Wide Capacity Range: Available in capacities from 3 kg to 40 kg to suit diverse weighing needs.
  • Ideal for Compact Platforms: Specifically designed for platforms up to 300 x 300 mm when using a single load cell.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission.
  • OIML and Test Certificates Available: Certification can be provided upon request, ensuring compliance with relevant metrology standards.

ATEX Version:

This model of the Dini Argeo SPO single point load cell is available with ATEX certification, making it suitable for use in hazardous areas with the following protection methods according to the CCATEX certificate:

  • Gas: ATEX II 1G Ex ia IIC T6 Ga (for ambient temperatures Ta -20°C to +40°C) / TX Ga (for ambient temperatures Ta -20°C to +65°C)
  • Dust: ATEX II 1D Ex ta IIIC TX°C Da IP65 (for ambient temperatures Ta -20°C to +40°C) / TX°C Da IP65 (for ambient temperatures Ta -20°C to +65°C)

IMPORTANT NOTE: The ATEX certificate applies to the individual load cell. For weighing systems utilising multiple SPO load cells in a hazardous area, it is necessary to order a separate ATEX certificate for each load cell within the system.

Specification

Minimum load cell verification interval:
Vmin = EMax/8.000-15.000

Maximum number of verification intervals: nLC = 3000

Full Scale Output: 2mV/V +/- 10%

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -10°C/+50°C

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 300..500 Ohm

Output Resistance: 300..500 Ohm

Insulation Resistance: >2000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 300% F.S.

4-wire shielded cable, 40cm long, 3,2mm diameter

Downloads

Please click here for the Dini Argeo ATEX SPO Single Point Load Cell datasheet
