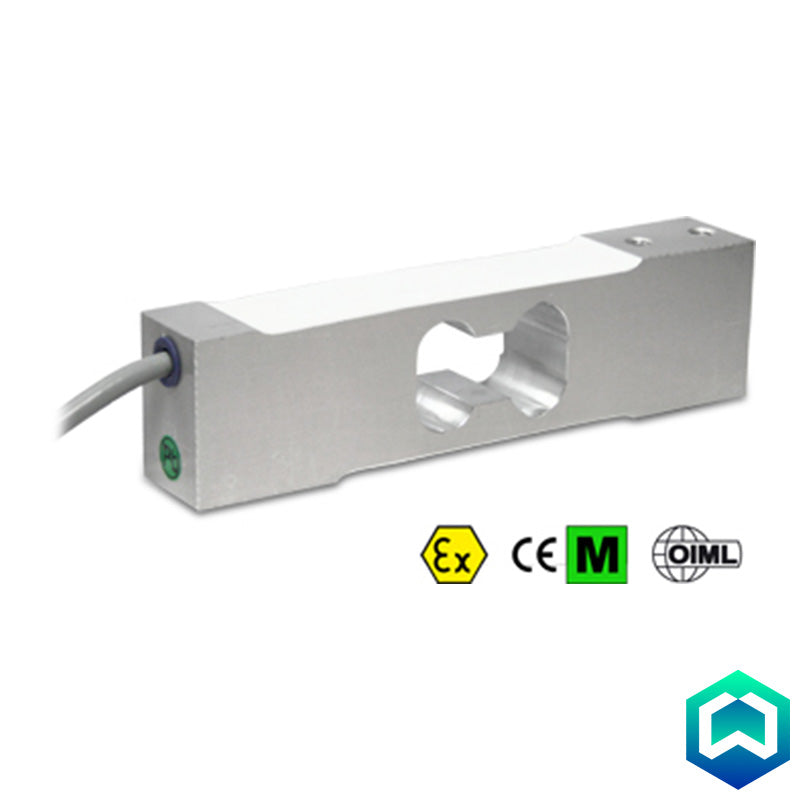

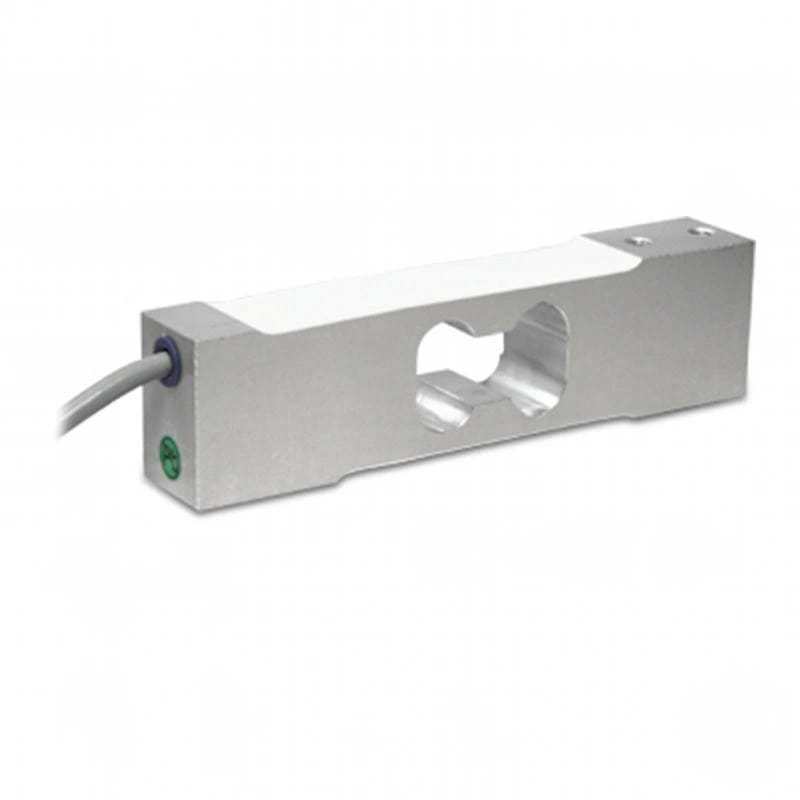

Dini Argeo ATEX SPG Single Point Loadcell C6 Class

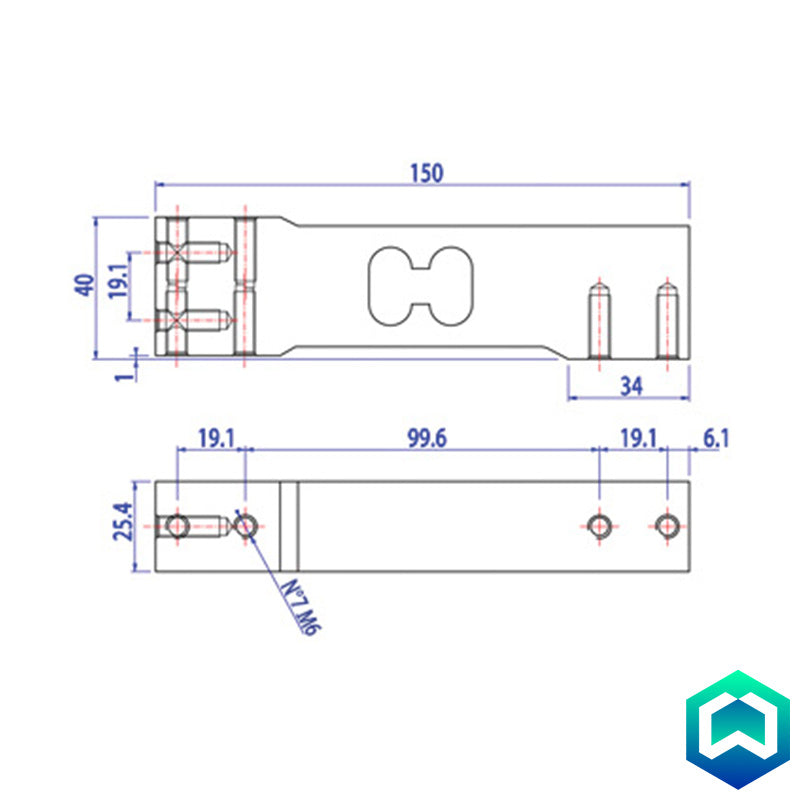

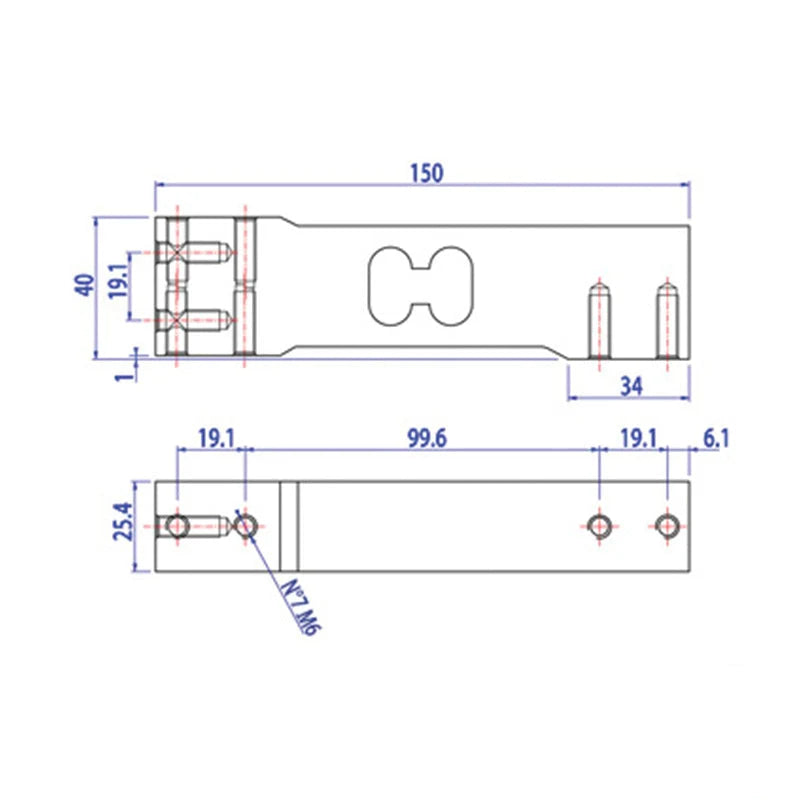

Dini Argeo ATEX SPG Single Point Loadcell C6 Class - Diagram

Dini Argeo ATEX SPG Series Single Point Load Cells C6 Class

By Dini Argeo

The Dini Argeo SPG series single point load cell, C6 precision class, with ATEX certification, is designed for highly accurate weighing of off-center loads on single load cell platforms (up to 450 x 450 mm) in potentially explosive atmospheres. This makes it an ideal choice for constructing high-precision CE-M approved scales for demanding applications within hazardous zones.

Model
£193.00
Product Information

Features:

  • OIML R60 C6 Precision Class: Provides high accuracy (C6) for critical weighing applications demanding precise measurements.
  • Off Center Load Compensated: Ensures highly accurate readings even when the load is positioned away from the center of the platform.
  • Aluminium Alloy Construction: Offers a lightweight yet robust and cost-effective sensor solution.
  • IP67 Protection: Provides excellent resistance to dust and water ingress, ensuring reliable performance in various industrial environments.
  • Optimised Capacity Range: Available in capacities of 7kg, 10kg, 18kg, and 36kg, ideal for medium-capacity, high-precision weighing tasks on appropriately sized platforms.
  • Ideal for Medium-Sized Platforms: Specifically designed for single load cell platforms with dimensions up to 450 x 450 mm.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a 3-meter length.
  • OIML and Test Certificates Available: Compliance with metrology standards can be verified with certificates available upon request.

ATEX Version:

This model of the Dini Argeo SPG single point load cell is an ATEX certified version, making it suitable for use in hazardous areas with the following protection methods according to the CCATEX certificate:

  • ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) Ga
  • ATEX II 1G Ex ia IIC TX (Ta -20÷+65°C) Ga
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) Da IP65
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+65°C) Da IP65

IMPORTANT NOTE: The ATEX certificate applies to the single load cell unit. For weighing systems utilising multiple load cells, it is necessary to order an individual ATEX certificate for each load cell within the system.
Specification

Minimum load cell verification interval:
Vmin = EMax / 14.000-25.000

Maximum number of verification intervals: nLC = 6000

Sensitivity: 2mV/V ± 10%

Temperature effect on zero:
7kg: ±0,0084% F.S./10K
10kg: ±0,0070% F.S./10K
18kg: ±0,0070% F.S./10K

36kg: ±0,0070% F.S./10K


Temperature effect on Full Span:
range -10°C/+20°C: 0,0058% F.S./10K
range +20°C/+40°C: 0,0087% F.S./10K

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -10°C/+50°C

Maximum excitation voltage without damage: 15 Vdc

Input Resistance: 300..500 Ohm

Output Resistance: 300..500 Ohm

Zero Balance: 0 ±0,1mV/V (at 100V)

Destructive load: 300% F.S.

6-wire shielded cable, 3m long, 4,7mm diameter
Downloads

Please click here for the Dini Argeo ATEX SPG Single Point Load Cell C6 Class datasheet
