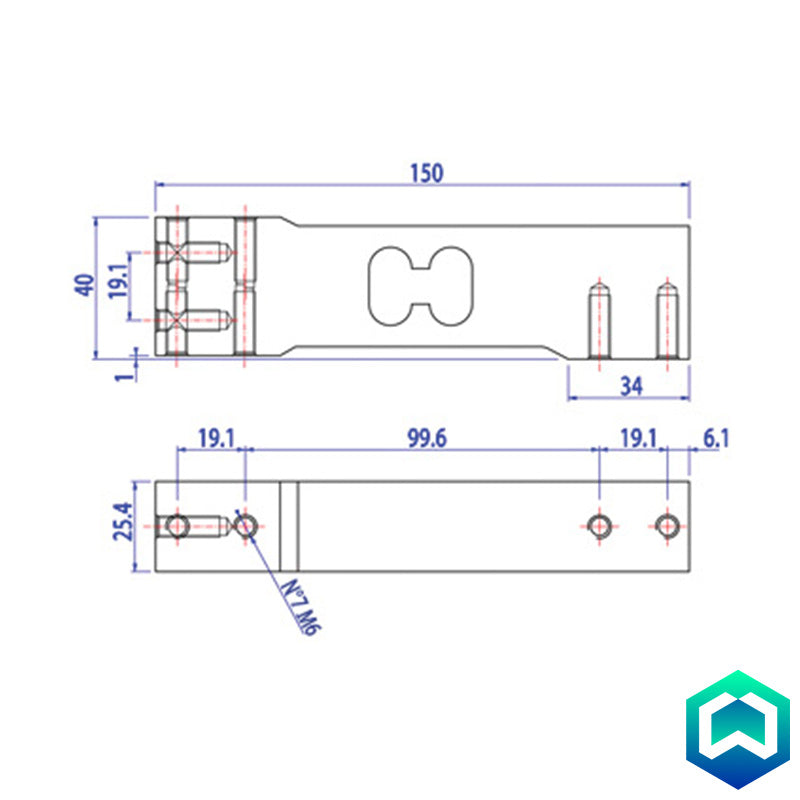

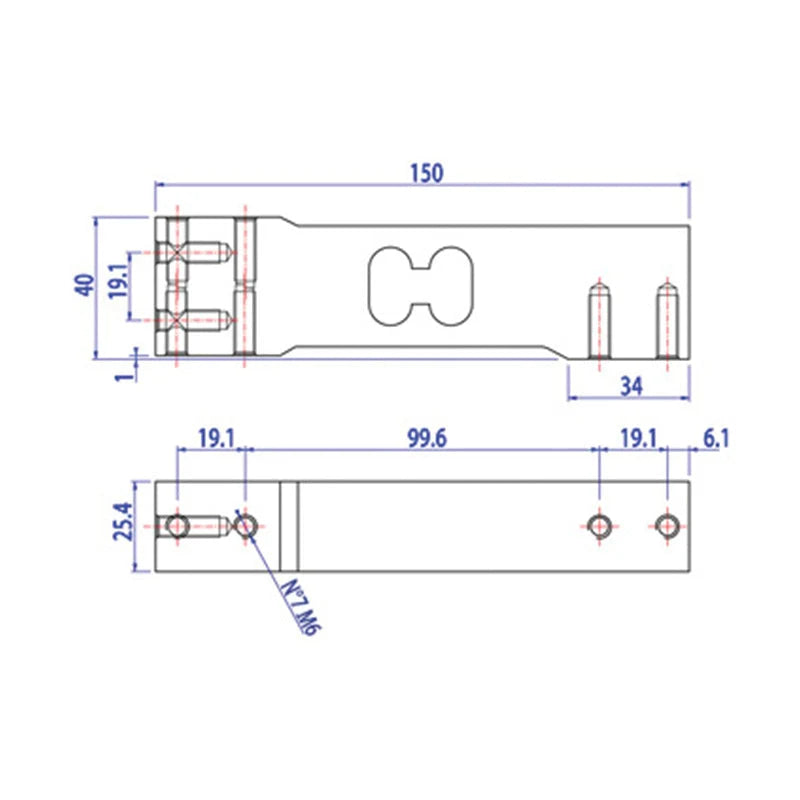

Dini Argeo ATEX SPG Single Point Loadcell - Diagram

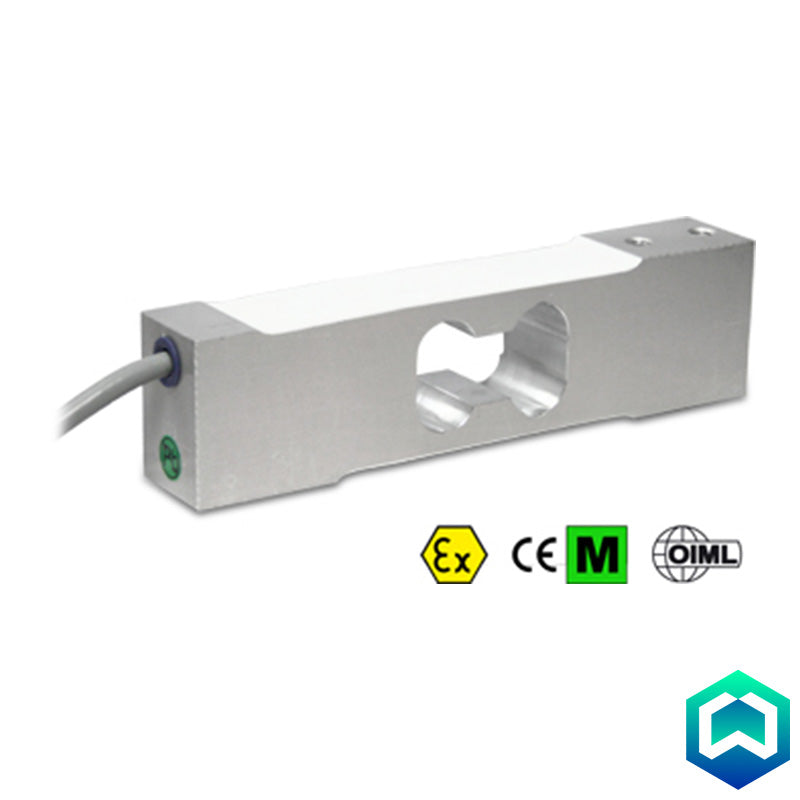

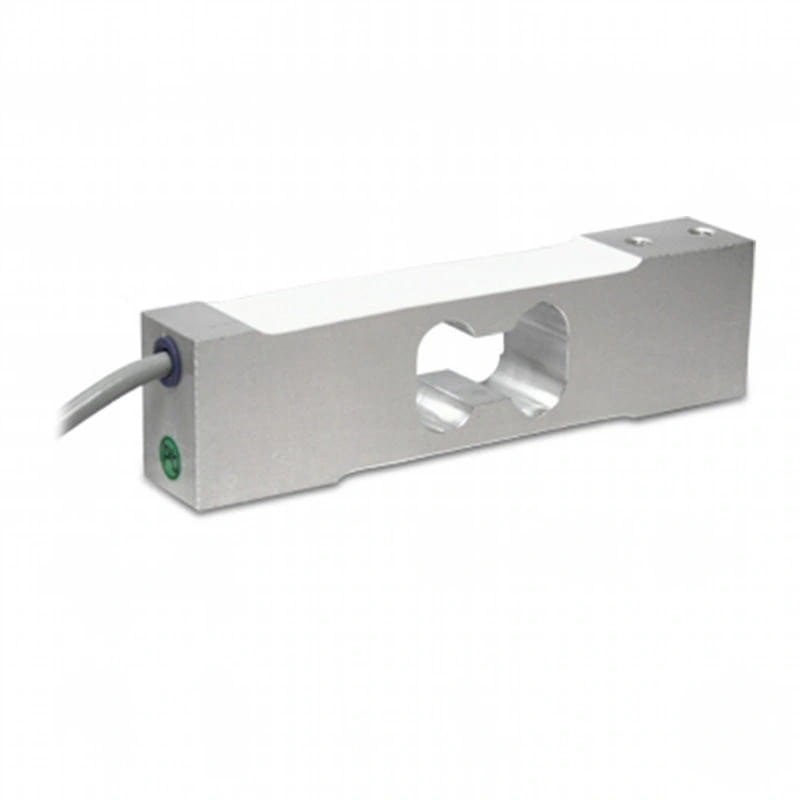

Dini Argeo ATEX SPG Series Single Point Load Cell C3 Class

By Dini Argeo

The Dini Argeo SPG series single point load cell, certified for use in potentially explosive ATEX environments, is specifically designed for accurate weighing of off-center loads on larger single load cell platforms, with maximum dimensions of up to 600 x 600 mm. This makes it an excellent choice for constructing ATEX approved scales with a single, centrally mounted load cell, offering a balance of capacity and platform size for hazardous areas.

Model
£136.00
Product Information

Features:

  • OIML R60 C3 Precision Class: Ensures reliable and accurate weighing performance for various industrial and commercial applications.
  • Off Center Load Compensated: Delivers precise readings even when the load is not placed directly in the center of the platform.
  • Aluminium Alloy Construction: Provides a durable yet lightweight and cost-effective weighing solution.
  • IP67 Protection: Offers good resistance to dust and water ingress, ensuring reliable operation in typical industrial environments.
  • Wide Capacity Range: Available in capacities from 10kg to 200 kg, catering to a broader range of weighing requirements for larger platforms.
  • Optimized for Medium-Sized Platforms: Specifically designed for single load cell platforms with dimensions up to 600 x 600 mm.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a 3-meter length.
  • OIML and Test Certificates Available: Compliance with metrology standards can be verified with certificates available upon request.

ATEX Version:

This model of the Dini Argeo SPG single point load cell is an ATEX certified version, making it suitable for use in hazardous areas with the following protection methods according to the CCATEX certificate:

  • ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) Ga
  • ATEX II 1G Ex ia IIC TX (Ta -20÷+65°C) Ga
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) Da IP65
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+65°C) Da IP65

IMPORTANT NOTE: The ATEX certificate applies to the single load cell unit. For weighing systems utilising multiple load cells, it is necessary to order an individual ATEX certificate for each load cell within the system.
Specification

Minimum load cell verification interval:
Vmin = EMax / 10.000-15.000

Maximum number of verification intervals: nLC = 3000

Sensitivity: 2mV/V ± 10%

Temperature effect on zero:
7kg: ±0,0084% F.S./10K
10kg: ±0,0070% F.S./10K
18kg: ±0,0070% F.S./10K
36kg: ±0,0070% F.S./10K

Temperature effect on Full Span:
range -10°C/+20°C: 0,0058% F.S./10K
range +20°C/+40°C: 0,0087% F.S./10K

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -10°C/+50°C

Maximum excitation voltage without damage: 15 Vdc

Input Resistance: 300..500 Ohm

Output Resistance: 300..500 Ohm

Zero Balance: 0 ± 0,12 mV/V (at 100 V)

Insulation Resistance: >2000 MOhm

Mechanical limit load in service: 150% F.S.

Destructive load: 300% F.S.

6-wire shielded cable, 3m long, 4,7mm diameter
Downloads

Please click here for the Dini Argeo ATEX SPG Single Point Load Cell C3 Class datasheet
