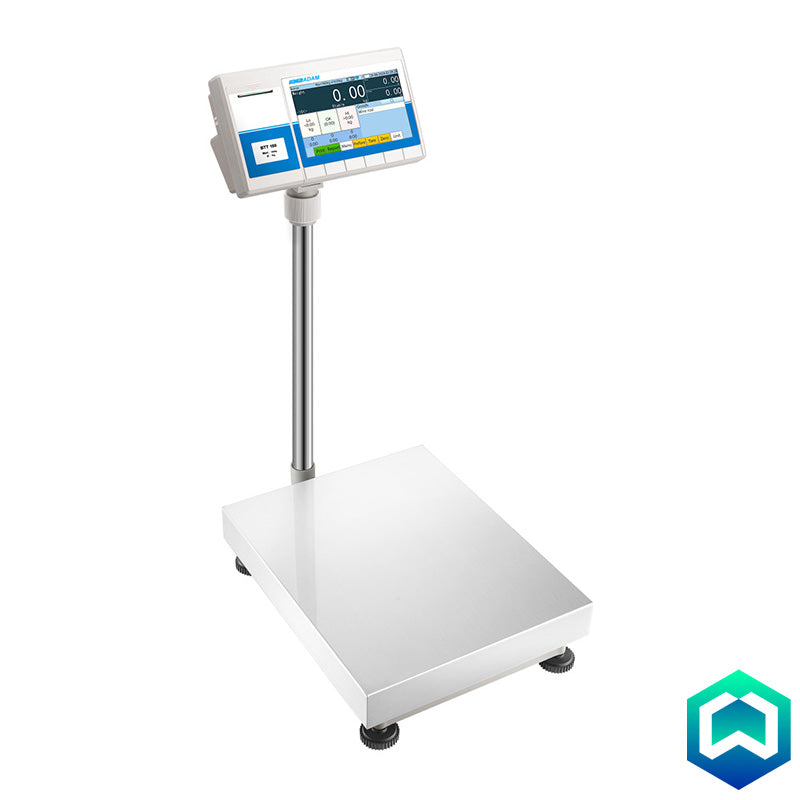

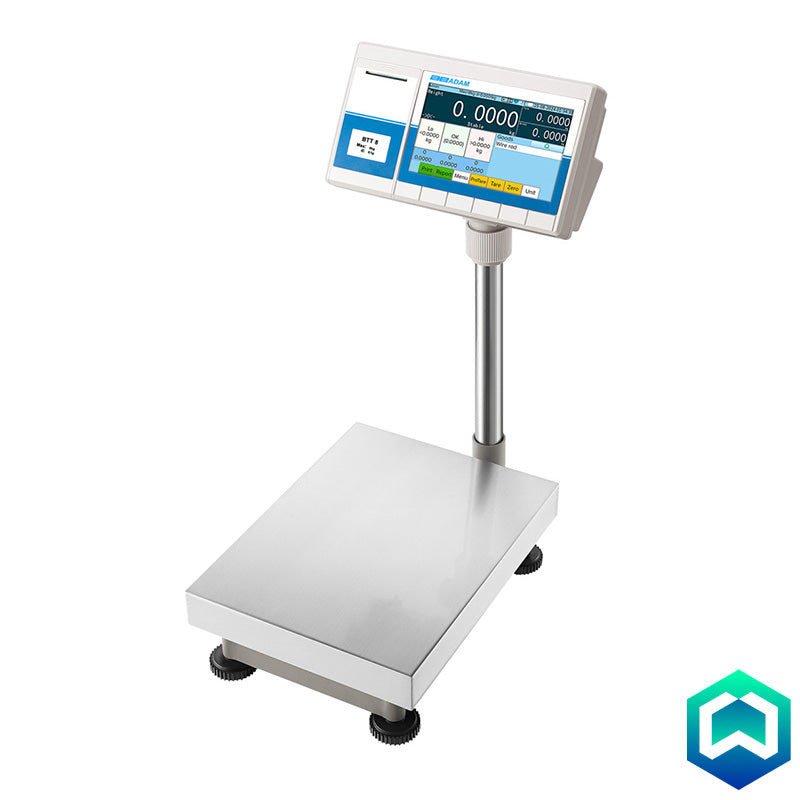

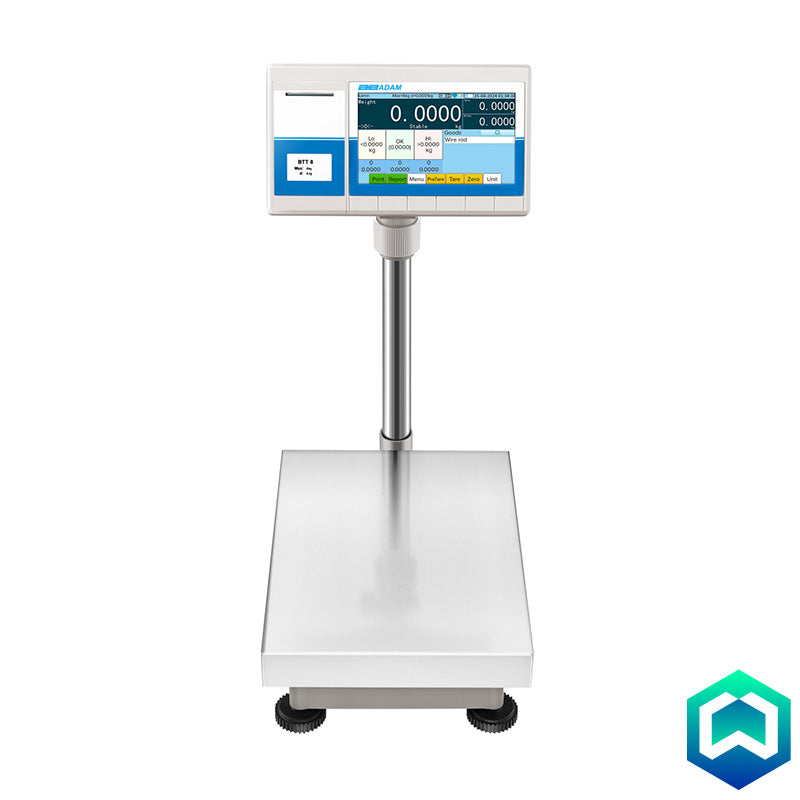

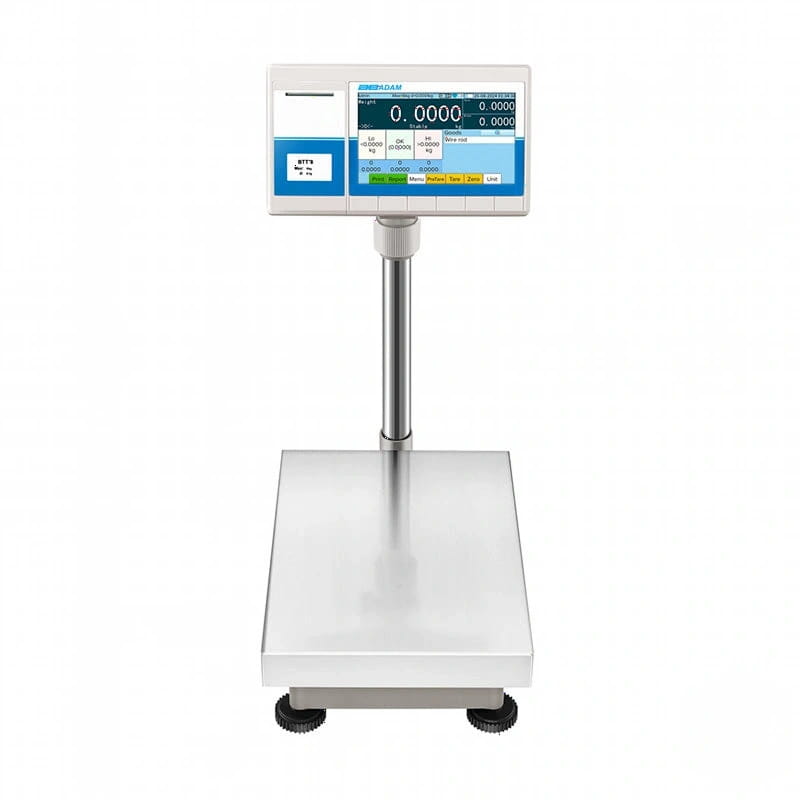

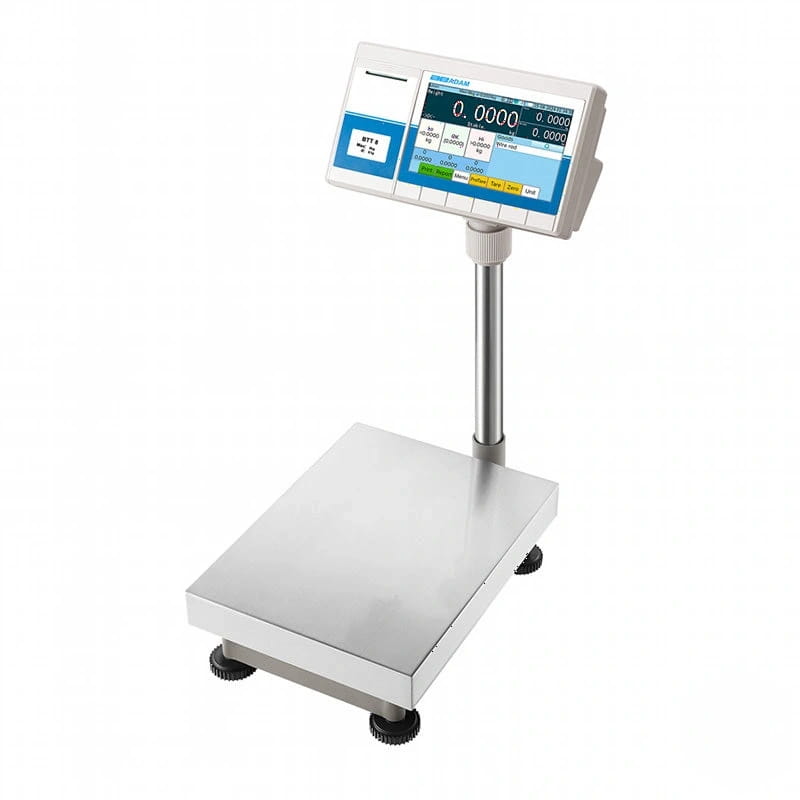

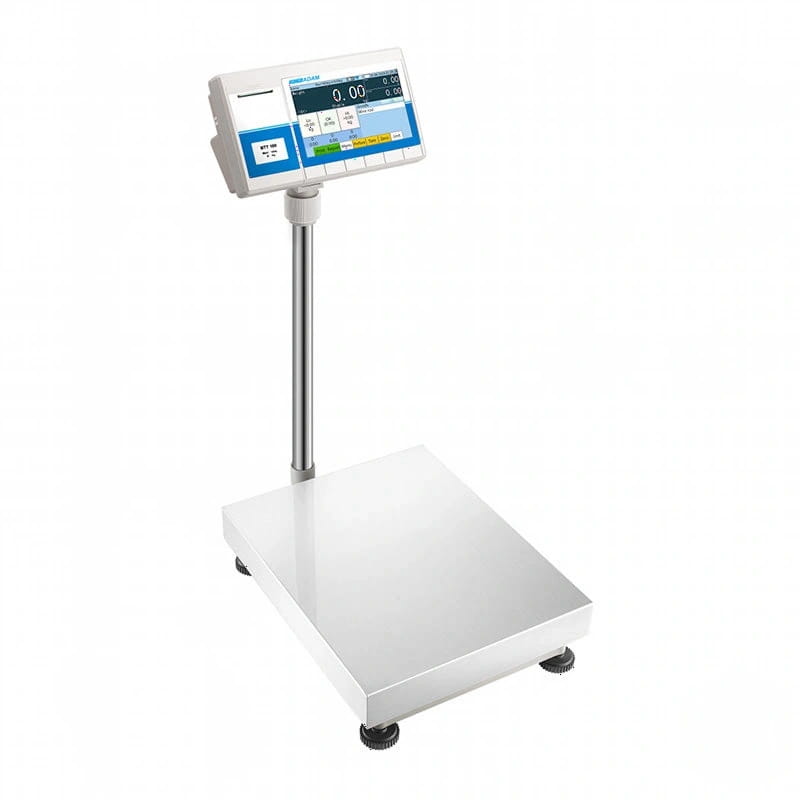

Adam Equipment BTT Touch-Screen Label Printing Scales

For quality control processes where stock needs to be counted, weighed and recorded, Adam Equipment's BTT Touch-screen Label Printing Scales make it easy. With an 8" touchscreen display, BTT offers an intuitive, user-friendly interface, the convenience of a built-in printer. Includes a port to connect a barcode scanner.

Pan Size
Capacity and Readability

£1,075.00
Product Information

Features:

  • Ideal for complex logistics tasks: BTT bench and floor scales combine user-friendly touch-screen controls with advanced weighing technology, offering users enhanced accuracy, built-in connectivity and all-in-one label printing convenience.
  • Intuitive operation: BTT features a generously sized 8-inch / 200mm touch-screen interface for excellent visibility and simplified operations.
  • Customisable labels: Use the built-in printer to output bespoke labels (create with Adam’s easy-to-use label design software) and the internal memory to store and recall up to 10 label designs. Labels can be created with text, images, barcodes and QR codes, date and time and weight/count/PLU information.
  • 1000+ Product Look-Ups: BTT bench and floor scales offer a pop-up QWERTY keyboard to enter more than 1,000 PLU numbers and descriptions.
  • Advanced connectivity: Easily connect to PCs, printers or barcode scanner via integrated RS-232 and USB ports, as well as optional wireless, Wi-Fi or RJ45 Ethernet modules.
  • Rugged weighing pan: The grade 304 stainless steel pan is easy to keep clean; underneath, a tough mild steel base that is built to last.
  • Selectable digital filtering: Helps minimise the effects of vibration and disturbances.
  • Zero-tracking: After use, the display will always return to a zero reading.
  • Parts counting mode with parts counting optimisation: The BTT automatically refines piece weight as parts are added, ensuring the total count is accurate when you have finished adding items to the scale. Freely selectable sample sizes means greater flexibility when you are determining piece weight by adding a sample to the scale.
  • Use the BTT anywhere: The internal rechargeable battery means this scale can be taken to where it's needed, regardless of where the nearest plug socket is.
  • 3-year manufacturer's warranty: Get peace of mind from Adam's leading manufacturer's warranty.
Specification

Pan Sizes:

  • 400x300mm
  • 500x400mm

Repeatability:

  • 8kg - 0.2g
  • 16kg - 1g
  • 32kg - 2g
  • 60kg - 4g
  • 75kg - 5g
  • 150kg - 10g
  • 300kg - 20g

Linearity:

  • 8kg - 0.3g
  • 16kg - 1g
  • 32kg - 2g
  • 60kg - 4g
  • 75kg - 10g
  • 150kg - 20g
  • 300kg - 40g

Weighing Units: g,kg,lb,lb:oz,oz,ct,dr,mm,tl.T,T

Stabilisation Time (seconds): 2

Interface: RS-232/Optional USB

Calibration: External calibration

Display: 8 Inch Touchscreen

Power Supply: Power cord / Internal rechargeable battery

Operating Temperature [C]: 0° to 40°C / 32° to 104°F

Construction: ABS plastic indicator with die-cast aluminum base

Downloads

Please click here for the Adam Equipment BTT Touch-Screen Label Printing Scales datasheet
