Dini Argeo 3590ETKR Touch Screen Display for Vehicle and Axle Weighing

By Dini Argeo

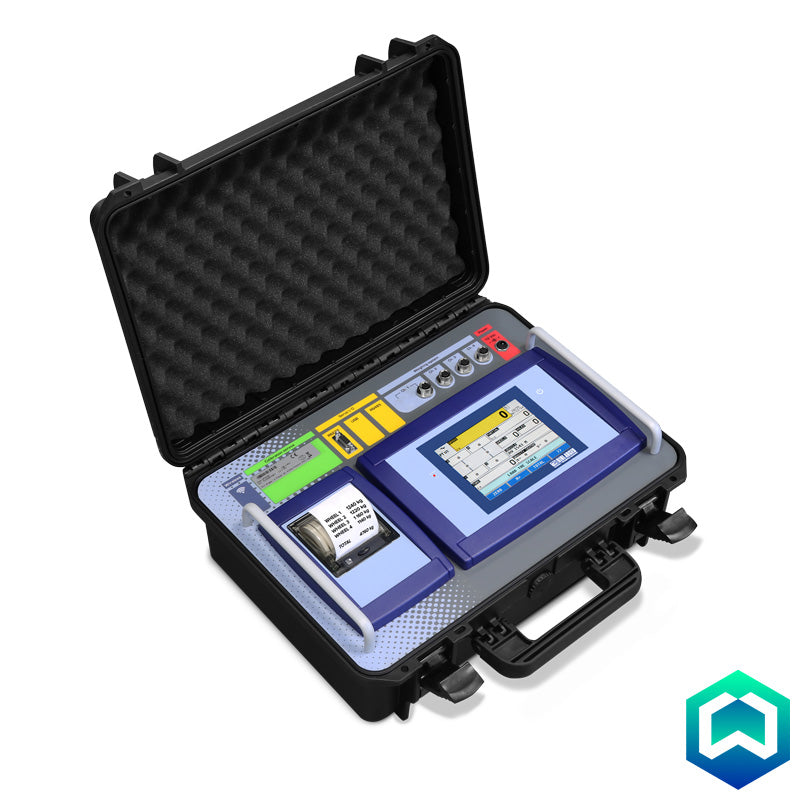

The Dini Argeo 3590ETKR indicator, with a large touchscreen display, is ideal for weighing vehicles, aircraft, and objects with multiple support points. Its intuitive interface provides clear data visualisation and customisable screens for simplified operation. Featuring three serial ports, configurable transmission protocols, customisable printouts, integrated alibi memory, and a port for barcode/badge readers, it ensures seamless data handling and traceability. CE-M approved (OIML R-76 / EN 45501).

Model
£995.00
Product Information

Features:

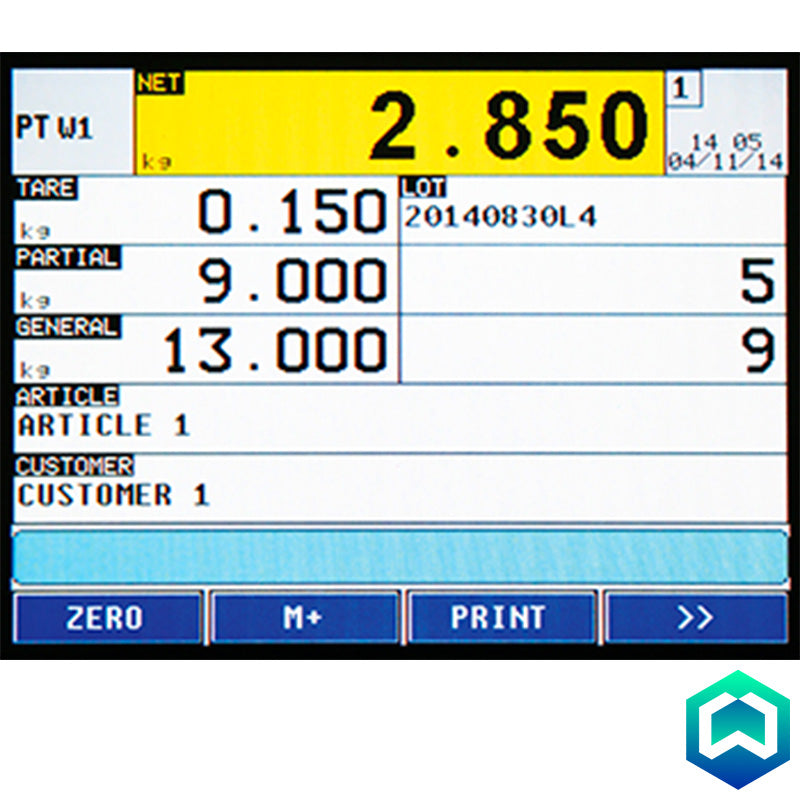

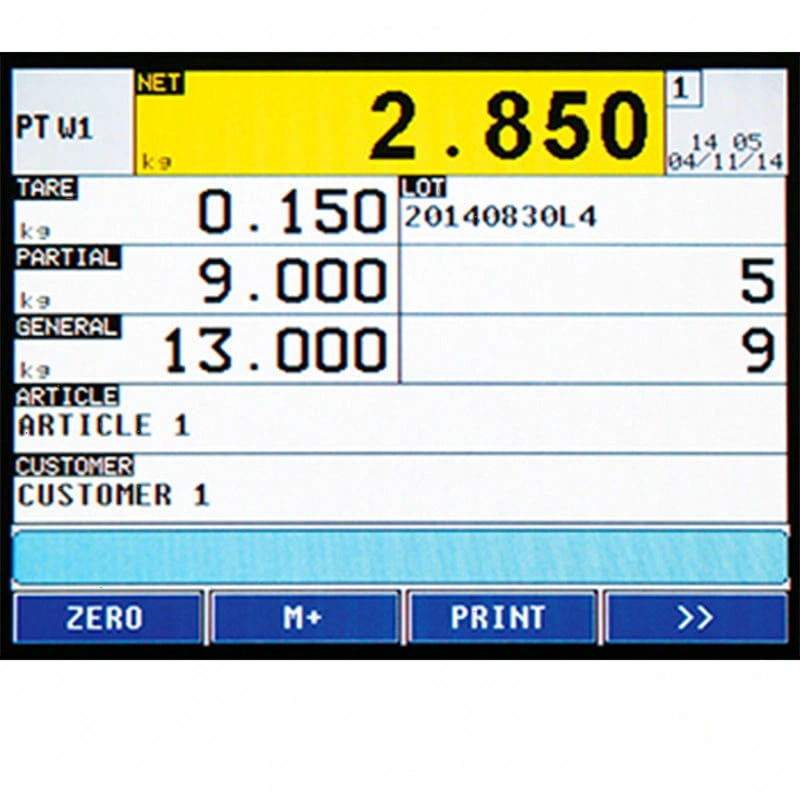

  • User-Friendly Interface: A large, backlit 120x90mm graphic touchscreen display with customisable screens and selectable QWERTY, AZERTY, or QWERTZ keyboard provides intuitive operation in multiple languages.
  • Integrated Printing: A built-in thermal printer allows for immediate hard copies of weighing data.
  • Data Management: Real-time clock, permanent data storage, and integrated alibi memory ensure data integrity. A micro SD card slot allows for configuration backups, logo storage, and custom screen uploads.
  • Powerful Software: The DINITOOLS utility simplifies configuration, data entry, print formatting, data recording and archiving on a PC, configuration retrieval, numeric calibration, and screen customisation.
  • High-Performance Measurement: A 24-bit A/D converter with 4 channels, up to 3200 conv./sec., and up to 8 signal linearization points delivers exceptional accuracy. It supports up to 16 x 350 Ohm (or 45 x 1000 Ohm) analog load cells.
  • Multiple Weighing Ranges: Offers up to 10,000e OIML or 3 x 3000e @ 0.3 µV/e CE-M legal for trade, and up to 1,000,000 displayable divisions for internal factory use (with internal resolution up to 3,000,000 points).

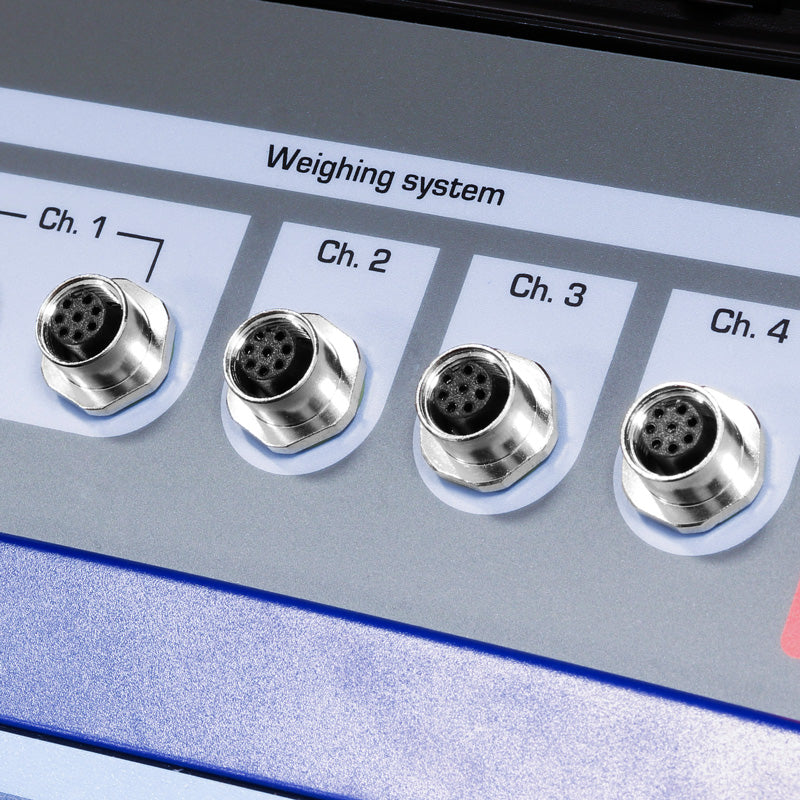

  • Connectivity: Connects to printers and labelers with freely programmable print formats. 4 independent analog channels (up to 2 in the E-AF03 version) for weight reading.
  • Portable Power: Powered by a built-in rechargeable battery providing approximately 10 hours of operation.

Customised Applications:
Thanks to our integrated development, you can create complete customised applications in autonomy:

  • wizards, operator messages
  • serial port management, protocols customization
  • digital I/O full management
  • sequential or simultaneous automations
  • data entry, custom archives
Specification

Dimension: 243x145x78.4 mm

Display: Backlit graphic display with touch screen technology, lxh= 120x90mm.

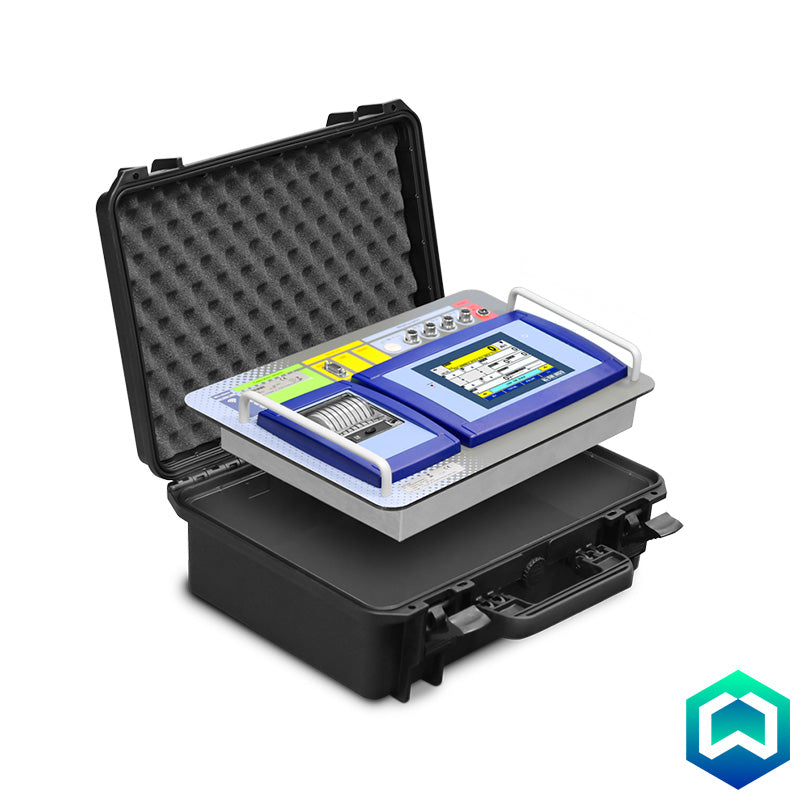

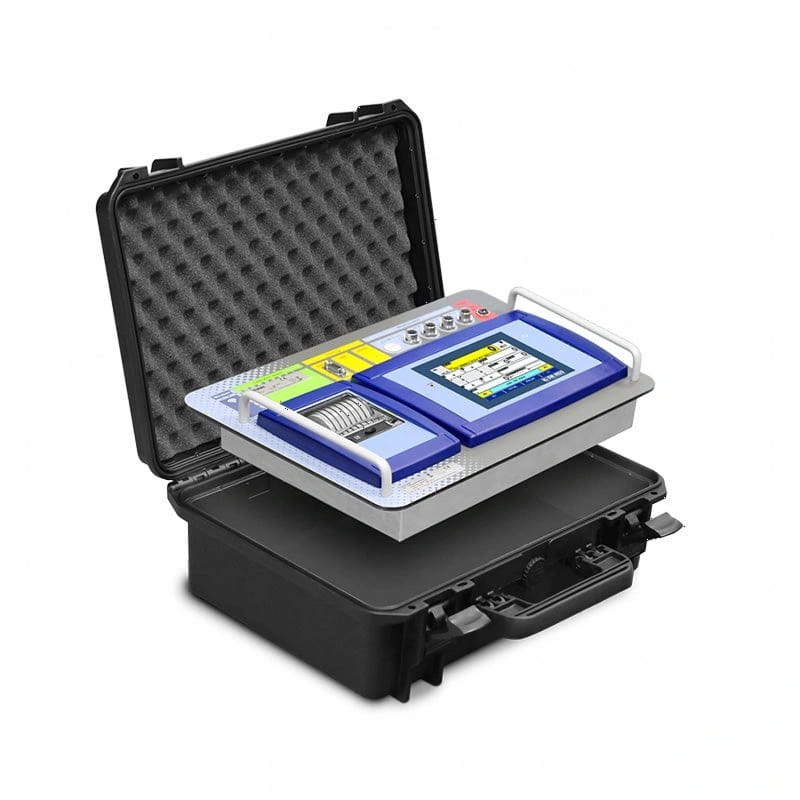

Material: ABS transport case, with housing for the indicator

Power Requirements: Power supply through built-in rechargeable battery, operating time of around 10 hours.

I/O Section:

  • Available on panel:
    - One RS232 serial ports, for connection to PC, on 9-pole connector.
  • Available on internal side:
    - 1 RS232 serial ports, for connection to printer, radio module, PC or PLC, badge reader or remote scale.
    - 1 RS232 serial port, for connection to printer, remote scale, badge reader, or digital load cells.
    - Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
    - Up to 4 optoisolated outputs (optional).
    - Up to 2 optoisolated inputs (optional).
Downloads

Please click here for the Dini Argeo 3590ETKR Touch Screen Display Datasheet
