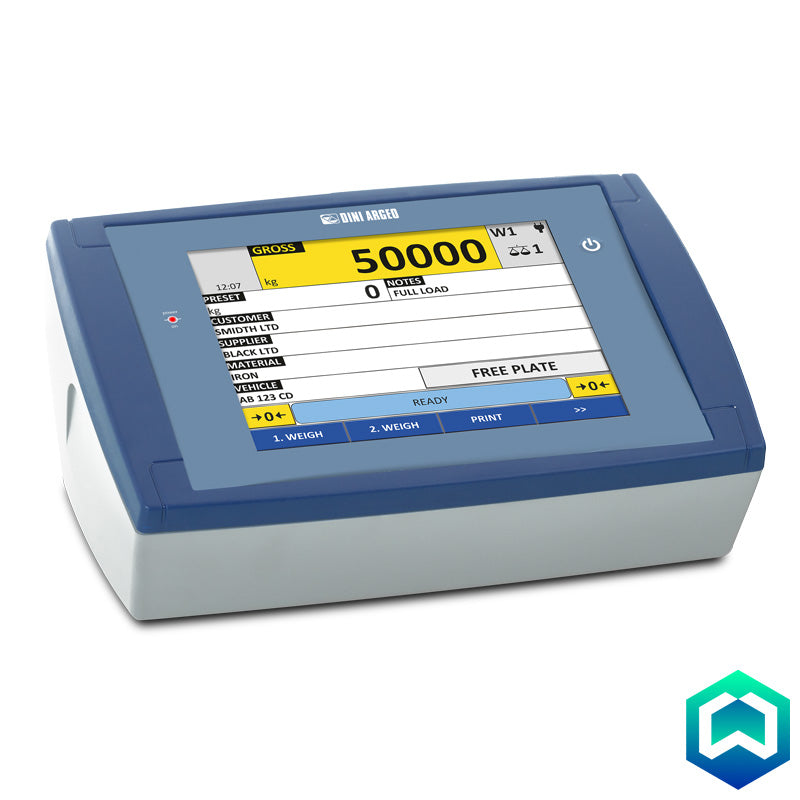

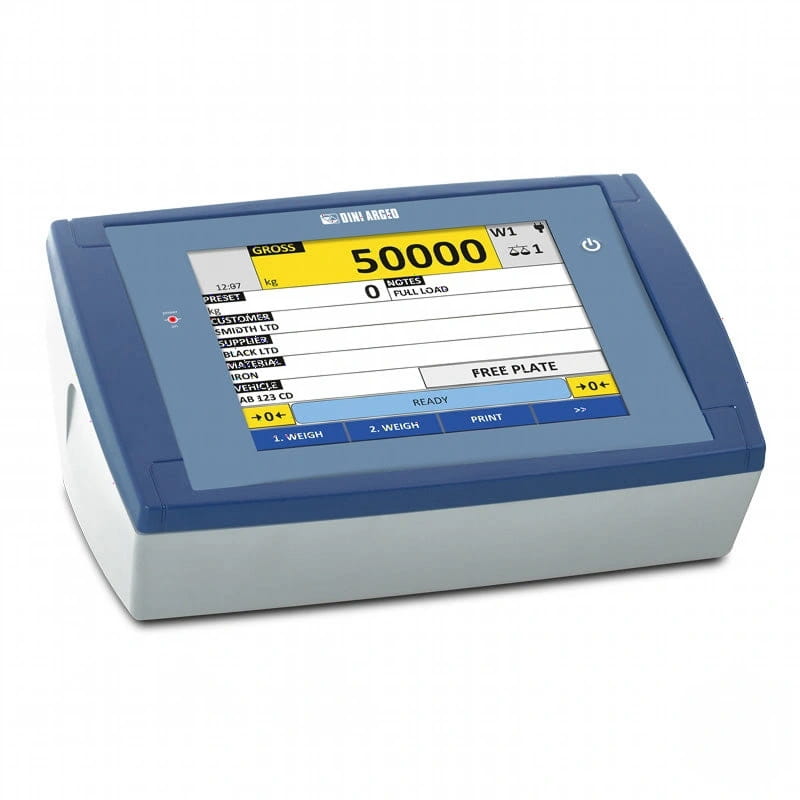

Dini Argeo 3590ET8 Touch Screen weight indicator for industrial applications‎‏‏‎‏‏‏‏‎

Features:

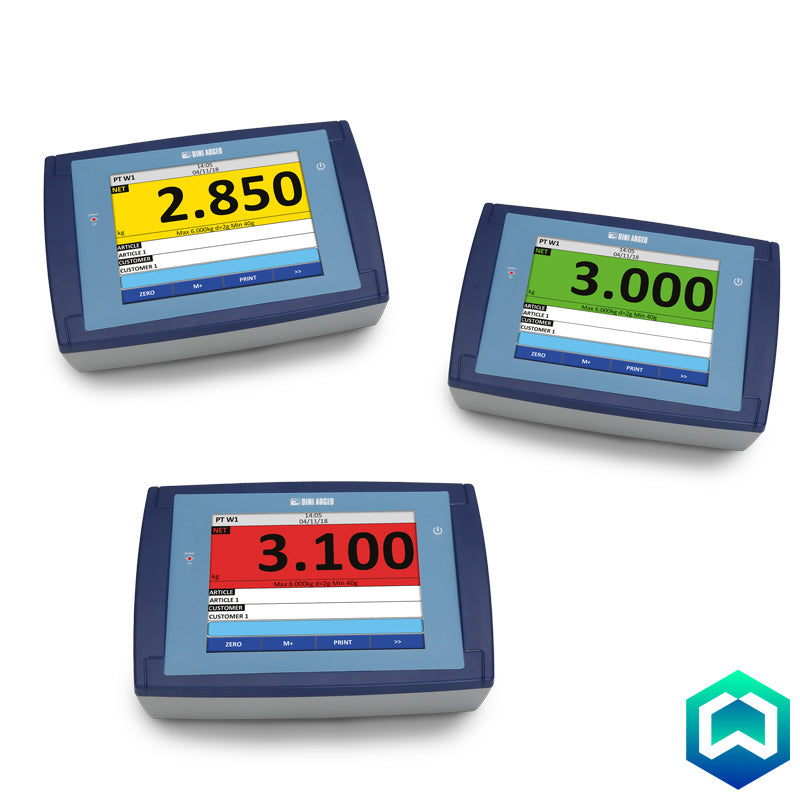

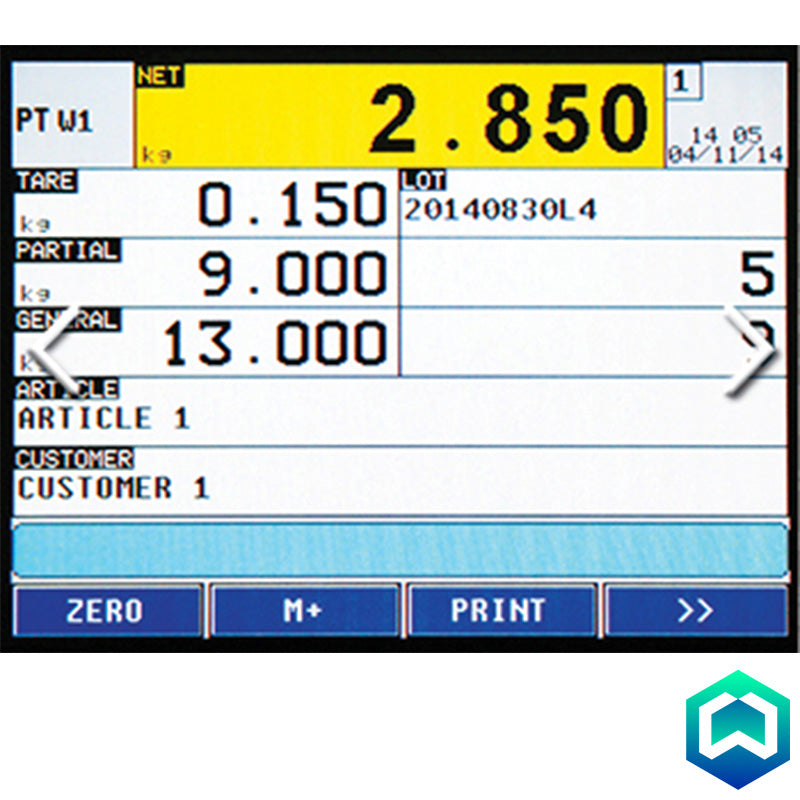

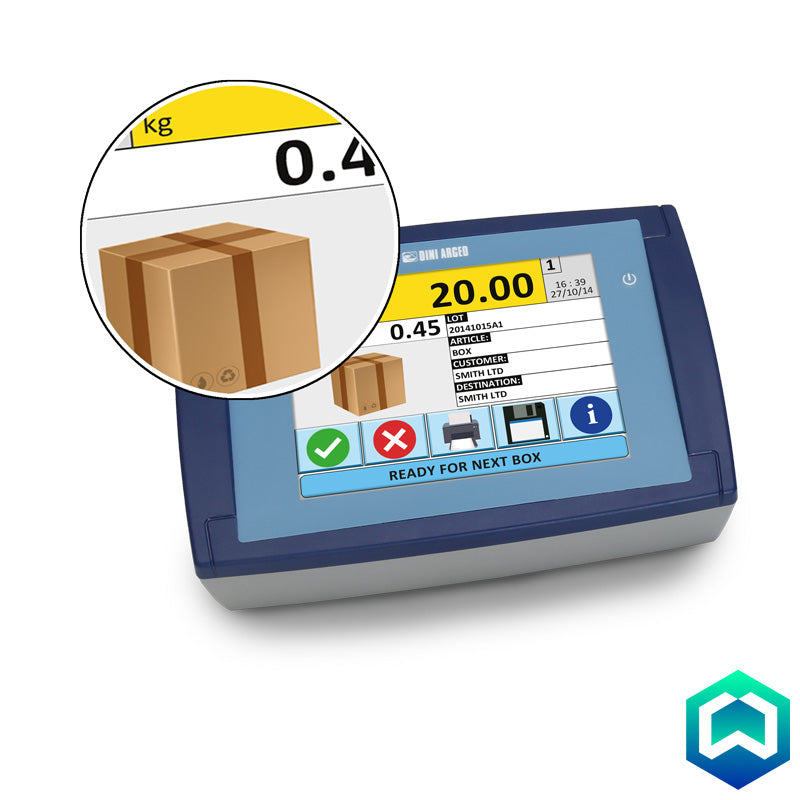

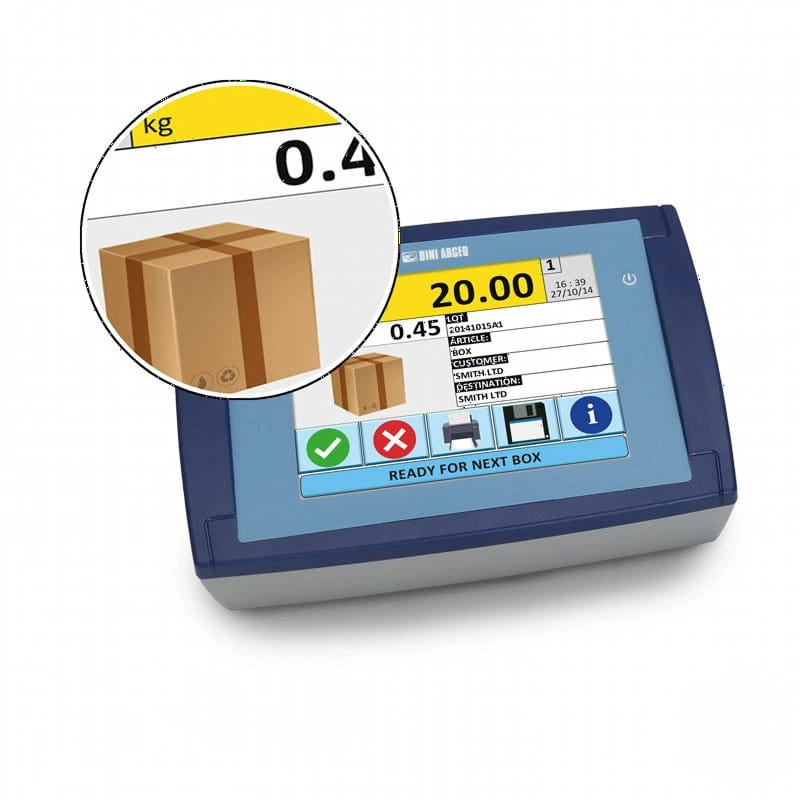

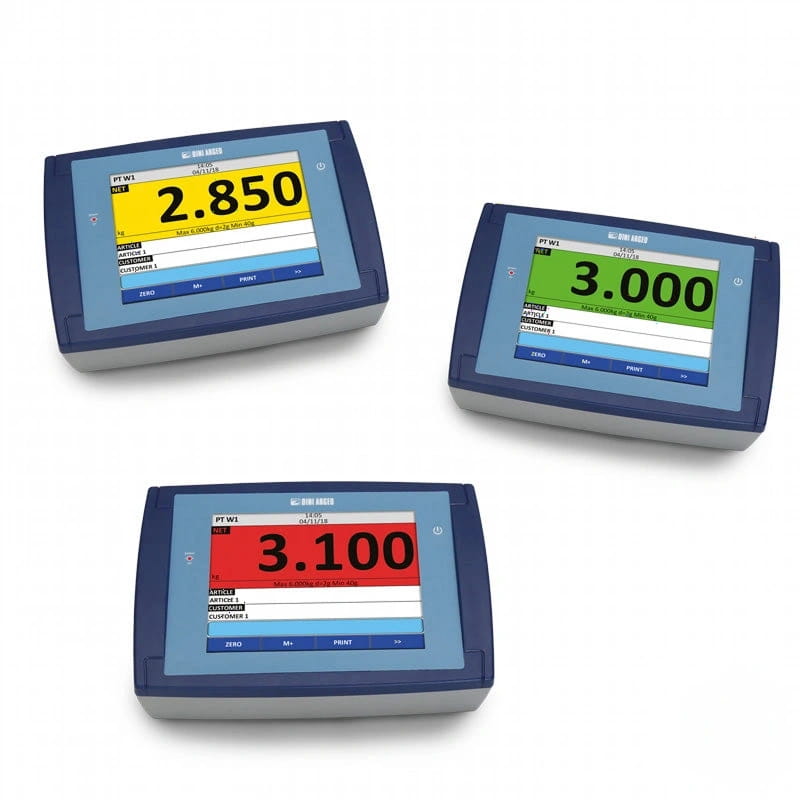

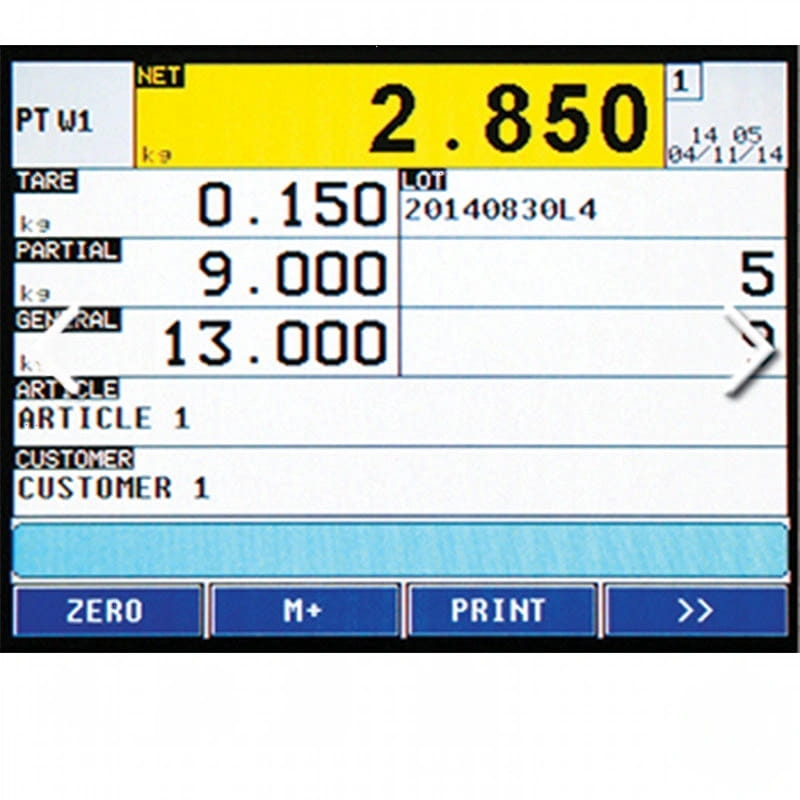

• Customisable Touchscreen Display: A large, backlit graphic display (120 x 90mm) with touchscreen technology allows for completely customisable screens and intuitive operation. Multi-language software enhances usability for diverse workforces.
• Flexible Keyboard Options: Choose from QWERTY, AZERTY, or QWERTZ keyboard layouts to suit individual preferences.
• Durable and Waterproof Enclosure: The ABS waterproof enclosure with IP65 protection ensures reliable performance in demanding environments. Suitable for table, column, or wall mounting. Dimensions: 278 x 125 x 186 mm.
• Data Management and Storage: Features a real-time clock, permanent data storage, and an integrated alibi memory on the motherboard for secure data logging. A micro SD card slot (available upon request) allows for logo storage.
• Powerful Software Utility (DINITOOLS): DINITOOLS software provides advanced functionality, including:
  • Configuration, data entry, and print formatting.
  • Data recording and filing on a PC.
  • Complete configuration retrieval.
  • Instrument calibration with numeric values.
  • Screen customization.
• High-Performance Measurement: A 24-bit A/D converter with 4 channels provides up to 3200 conversions per second and up to 8 signal linearization points.
• Multiple Analogue Channels: Offers 4 independent analogue channels (up to 2 in the E-AF03 version) for weight readings.
• Extensive Load Cell Compatibility: Connects to up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and is compatible with major digital load cells (mod. E-AF03).
• High Resolution and Accuracy: Supports up to 10,000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade applications. Offers up to 1,000,000 displayable divisions for internal factory use, with an internal resolution of up to 3,000,000 points.

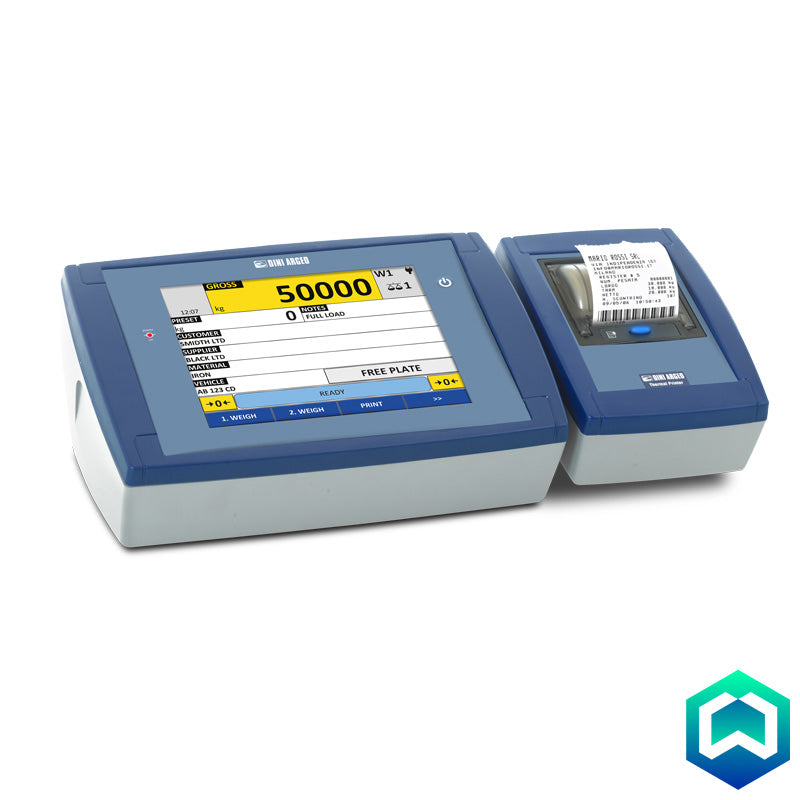

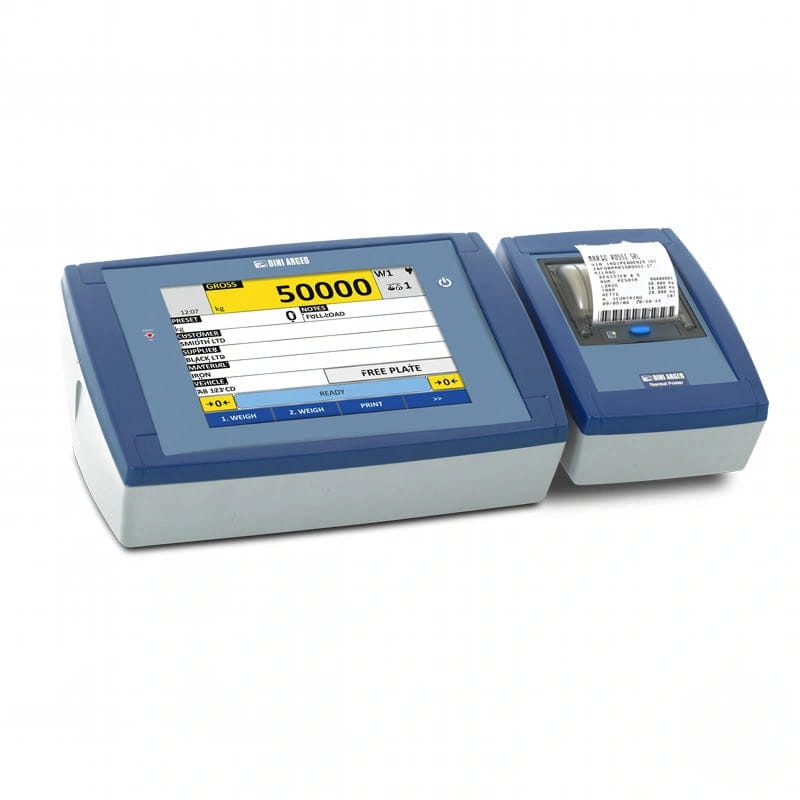

• Printer and Labeler Connectivity: Connects to printers and labelers with free programming of printout formats.


Certification:

• EC Type Approval (EN45501)
• OIML R76
• OIML R51 - MID
• OIML R134 (AF09)

Application Software:

• AF01: Totalisation and formula weighing (integrated)
• AF02 : Pieces / quantity counting (optional)
• AF03 : Weighbridges - Input / Output vehicle (optional)
• AF04: Statistical checking of prepackaged goods (optional)
• AF05: Price computing and industrial labelling (optional)
• AF06: Management of wheel and axle weighing systems (optional)
• BATCH1: Single product dosage systems in loading and unloading (optional)

Customised Applications:

Thanks to our integrated development, you can create complete customised applications in autonomy:

• wizards, operator messages
• serial port management, protocols customization
• digital I/O full management
• sequential or simultaneous automations
• data entry, custom archives

Womag Weighing can offer the service of custom development programs.

I/O Options:

• Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
• 4 optoisolated outputs (optional).
• 2 optoisolated inputs (optional).
• External Profibus interface (optional), for automation management.
• Modbus RTU Protocol.
• Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC, tablet or smartphone.
