3590EGT-IECEX3GD ATEX Touch Screen Indicator for Ex 2 and 22 Zones

£2,068.00 £2,295.00

Whats New

  • IECEx certification.
  • New enclosure with screw-less front closure for easy cleaning of the indicator.

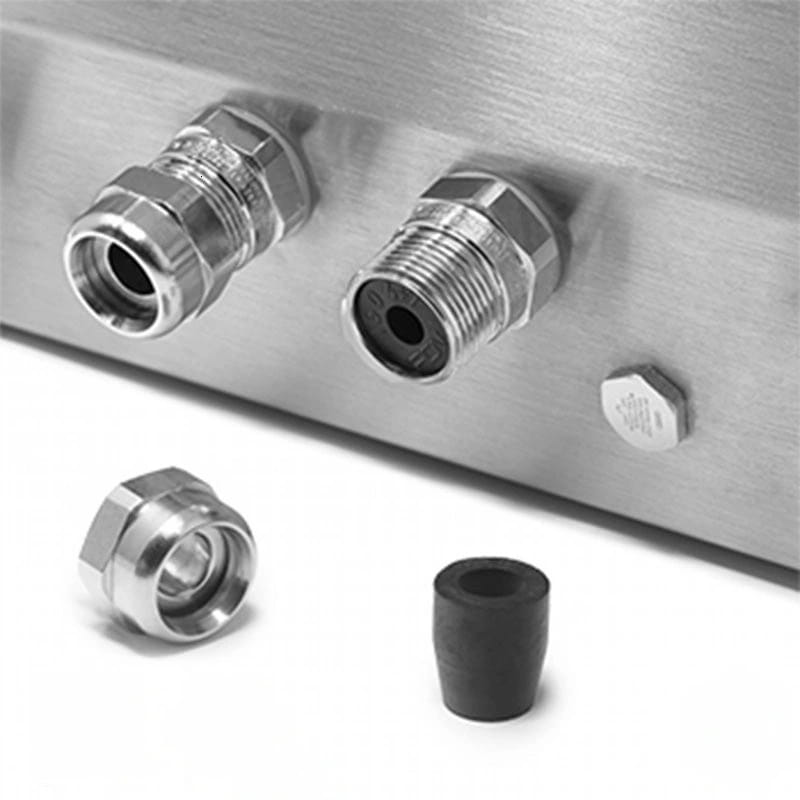

  • PG7 and PG9 cable glands with adaptors for 4 to 7 mm and 7 to 10 mm cable routing. Equipped with anti-friction system that does not require additional external cable fixing, as required by the IECEx scheme and ATEX directives.

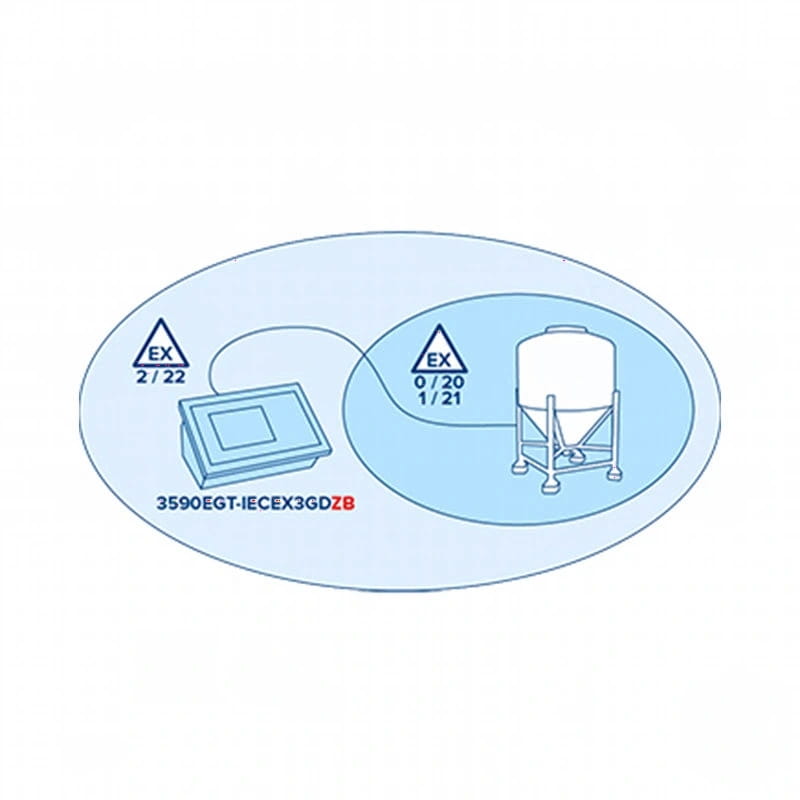

  • Available in specific version for direct connection to load cells installed in zone 1/21 and 0/20.

Technical Features

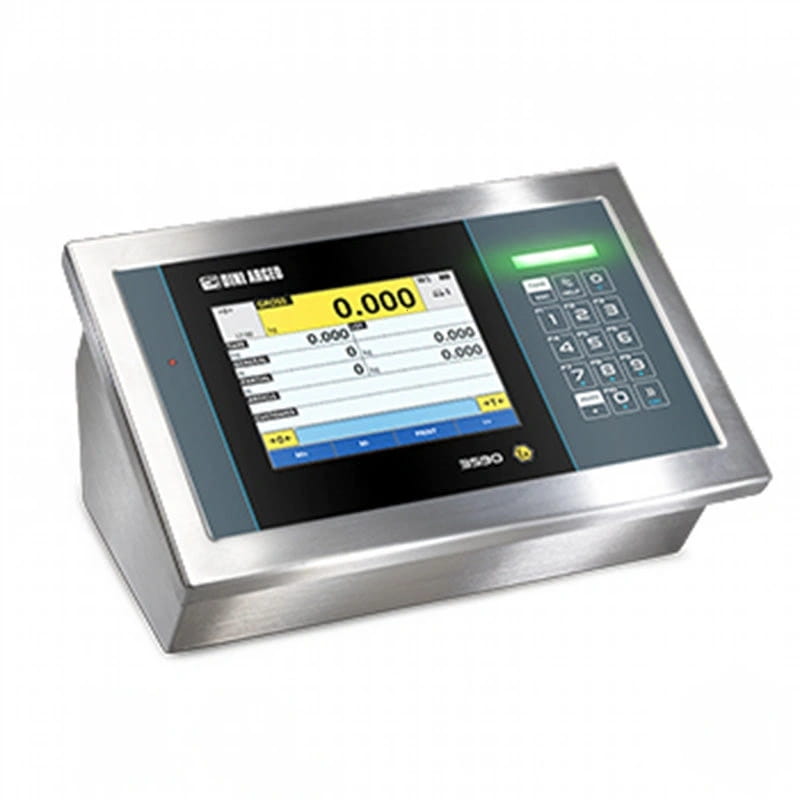

  • 5,7' colour touch screen display.
  • Multi-language software.
  • 15-key alphanumerical waterproof keyboard.
  • 3-way control light.
  • Selectable QWERTY, AZERTY or QWERTZ keyboard integrated in the touch screen.
  • Stainless steel waterproof enclosure, with new IP68 protection system.
  • Dimensions: 280x143x185mm.
  • Suitable for use on the table, column or wall.
  • Real time clock and permanent data storage.
  • Alibi memory as standard, integrated on the motherboard.
  • Slot for built-in micro SD to record the configuration, logos, and customised screens (upon request).
  • Functions available with DINITOOLS utility
    - Configuration, data entry and print formatting.
    - Recording and filing of all the information on PC.
    - Complete retrieval of the configuration.
    - Instrument calibration with numeric values.
    - Customisation of the screens.
  • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. with automatic frequency selection and up to 8 signal linearisation points.
  • 4 independent analogue channels for weight reading (up to 2 in E-AF03 version).
  • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm).
  • Up to 10.000e OIML or multi-range 3 x 3000e @ 0,3 µV/d CE-M legal for trade.
  • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
  • Connectable to printers and labellers with free programming of the printout formats.
  • Power supply from 110-240Vac line or 12-24 Vdc Max. 25.2W

Completely Programmable for Customised Applications

  • Thanks to the integrated development area, fully customised applications can be created independently:
    - Specific weighing software according to customer requirements
    - Tailor-made weighing software to replace terminals in existing installations
    - Wizards, messaging for the operator
    - Serial port management, protocol customisation
    - Complete digital I/O management
    - Sequential or simultaneous automation
    - Data entry, tailor-made archivesDini Argeo also offers the service of software development (to be quoted).

Standard Applications

  • AF01: Totalization and formula weighing (standard)
  • AF02: Piece/quantity counting (optional)
  • AF03: Weighbridges - Vehicle In/Out (optional)
  • AF04: Statistical check of prepackaged goods (optional)
  • AF05: Price computing and industrial labelling (optional)
  • AF08: Static wheel and axle weighing with 2 or more pads (optional)
  • AF09: Software for dynamic or static axle weighing with 1 or 2 pads (optional)
  • BATCH1: Single product dosage systems in loading and unloading (optional)
  • BATCH: Software for multicomponent dosage systems in loading and unloading (optional, requires IOEXPB expansion board)

I/O Section

  • 1 Internal serial ETHERNET port, for connection to the company computer system (excludes a serial port).
  • 2 RS232 serial ports on terminals, for connection to printer, PC, radio module and optional interfaces.
  • 1 RS485/RS232 serial port on terminals, for connection to weight repeater,remote scale, badge readers or digital load cells.
  • 4 serial optoisolated outputs, up to 16 with optional board.
  • 2 serial optoisolated inputs, up to 8 with optional board.
  • External Profibus interface (optional), for automation management.
  • Modbus RTU interface.
  • Optional Bluetooth connection, for fast wireless programming of archives, via PC, tablet or smartphone.
  • Analog output DAC16O requires IOEXPB expansion board.

Main Certifications

  • EU Type Examination Certificate (45501:2015)
  • OIML R76
  • OIML R51 - MID
  • OIML R134 (AF09)
  • EN/IEC 60079-0
  • EN/IEC 60079-11 (ZB version)
  • EN/IEC 60079-15
  • EN/IEC 60079-31

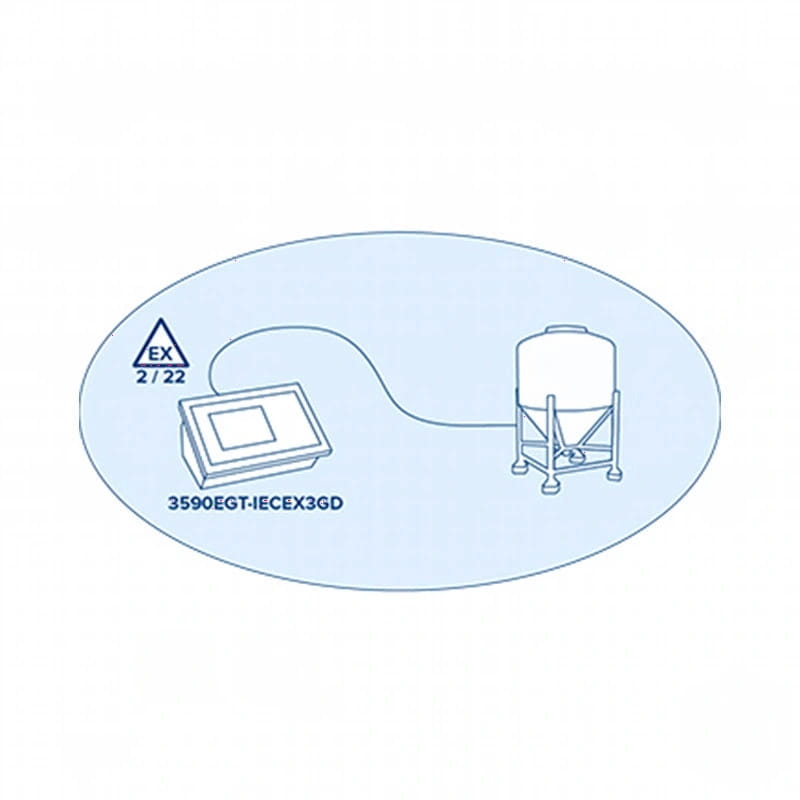

  • Certification according to ATEX directive 2014/34/EU and in compliance with IECEx scheme, group II category 3GD according to EN/IEC 60079-0, EN/IEC 60079-11, EN/IEC 60079-15, EN/IEC 60079-31.

Available Upon Request

  • Power supply 24 Vdc.
  • PG13,5 anti-friction cable glands with adaptors for the passage of cables from 5,5 to 8 mm and from 10,5 to 13 mm.

Please click here for the 3590EGT-IECEX3GD datasheet .....
