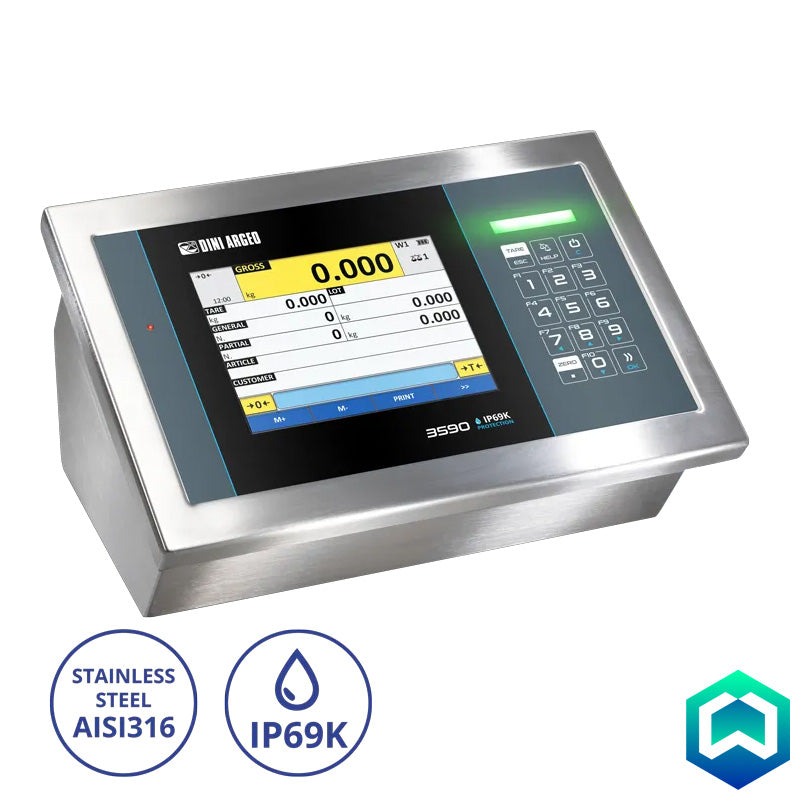

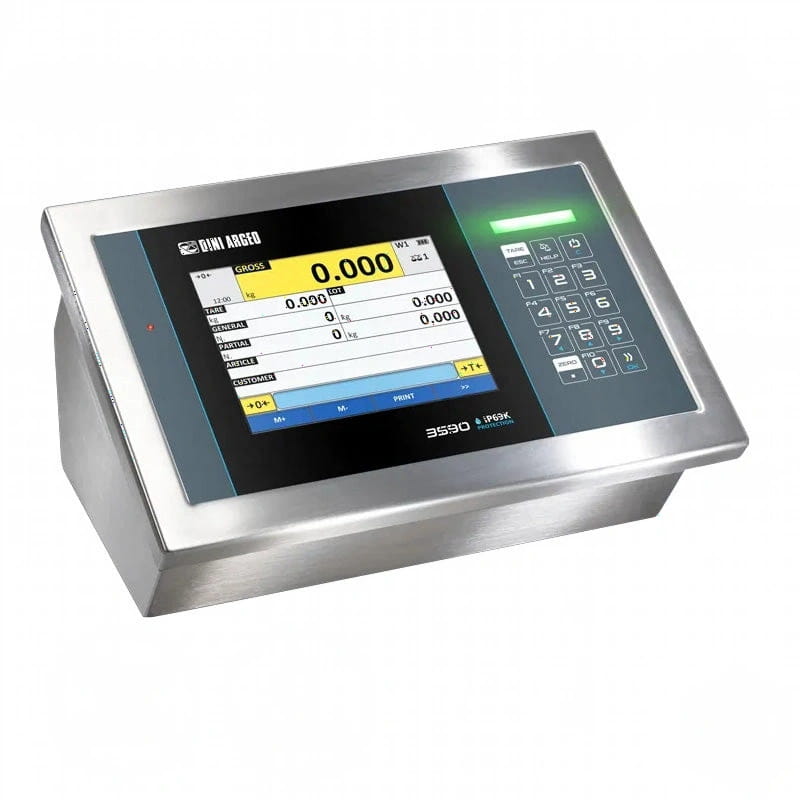

3590EGT HygienX Stainless Steel Touch Screen Weight Indicator

£1,530.00 £1,699.00

Main Features:

  • Touchscreen backlit graphic display, dimensions lxh= 120x90 mm.
  • Multilanguage software.
  • Waterproof alphanumeric keyboard with 15 keys.
  • Traffic light with 3 colors.
  • Touchscreen keyboard type QWERTY, AZERTY or QWERTZ, selectable.
  • AISI 316L stainless steel case.
  • IP68/IP69K certification against water, dust and high pressure hot water jets.
  • Dimensions: 280x143x185 mm.
  • Suitable for use on a table, column or wall.
  • Calendar clock and permanent data memory.
  • Alibi Memory as standard, integrated on the motherboard.
  • Internal micro SD slot (optional) for saving logos.
  • Functions available with DiniTools utilities:
    - Configuration, data entry and print formatting.
    - Storage and archiving of all information on PC.
    - Complete configuration back-up.
    - Customization of displays.
  • A/D converter 24 bit, 4 channels, up to 3200 conv./sec. with autoselect and up to 8 signal linearization points.
  • 4 independent analogue channels for reading the weight.
  • Management of up to 16 analogue load cells of 350 Ohm (45 cells at 1000 Ohm).

Application Software:

  • Supplied as Standard:
    AF01: Totalization and formula weighing
  • Optional:
    AF02: Pieces/quantity counting
    AF04: Statistical checking of pre-packaged goods
    AF05: Price computing and industrial labelling
    BATCH1: Single product dosage systems in loading and unloading
    BATCH: Multicomponent dosage systems in loading and unloading (IOEXPB board must be included).

Customised Applications:

  • Thanks to the integrated development area, it is possible to create completely customized applications:
    - Guided procedures, messaging for the operator
    - Management of serial ports, customization of protocols
    - Complete management of digital I/O
    - Sequential or simultaneous automations
    - Data entry, customized archives

Main Certifications:

  • EU Type Examination Certificate (45501:2015)
  • OIML R76
  • OIML R51 - MID
  • Australian legal for trade certificate of approval (NMI S788)
  • IP68 and IP69K protection rating

I/O Section:

  • 2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optional interfaces.
  • 1 RS232 serial port (RS485 optional), for connection to repeater, remote scale, badge reader or digital load cells.
  • Standard keyboard emulation input, for connection to barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
  • 4 optoisolated outputs (optional).
  • 2 optoisolated inputs (optional).
  • Modbus RTU interface as standard.
  • Profibus or modbus TCP interface (optional).
  • External Profinet, Ethernet/IP, EtherCAT, CANopen or DeviceNet interface (optional, only with AF01 standard weighing program).
  • Optional Bluetooth connection, for fast wireless programming of the archives, through PC, tablet or smartphone.
  • Analog output configurable (4-20 mA, 0-20 mA or 0-10 V), needs IOEXPB expansion board.

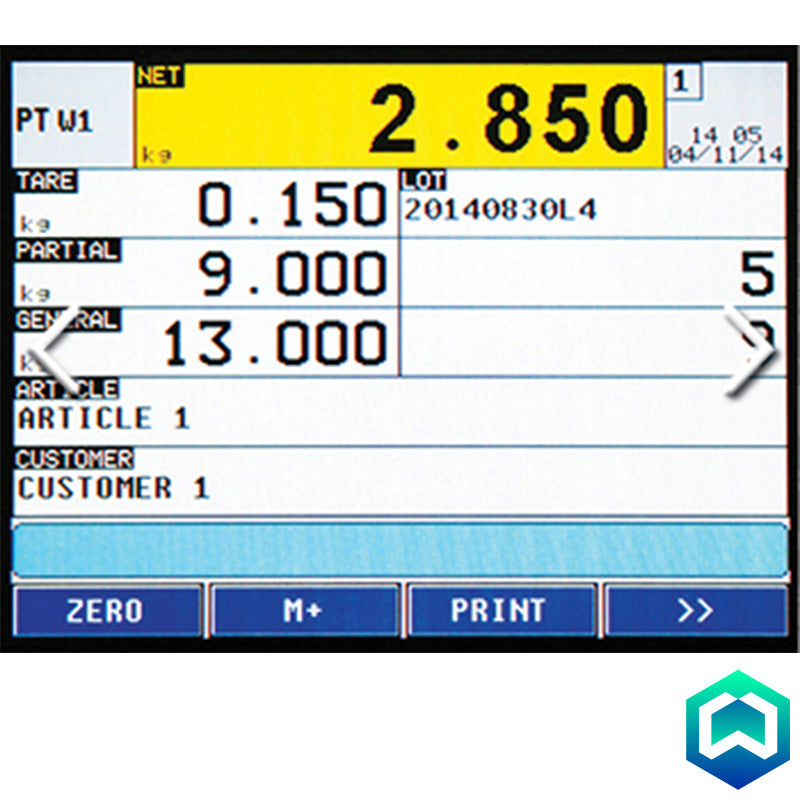

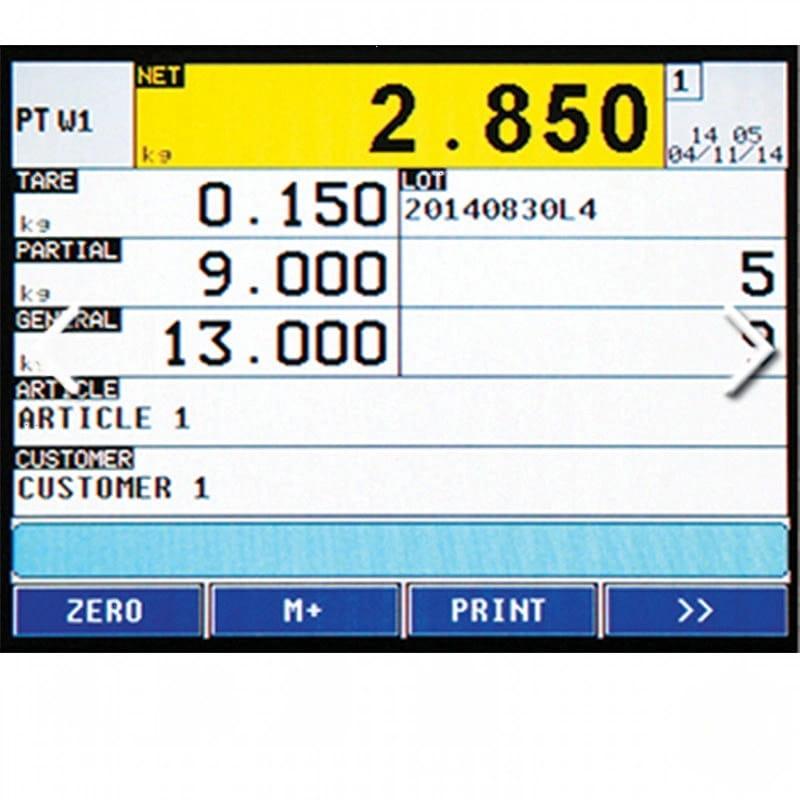

Completely Customizable Screens:

Thanks to the programmable touchscreen display, you can create custom-made interfaces for any application.
