Vessel Weighing and Dosing Systems with 3 CPX Load Cells - DGTPKF

By Dini Argeo

The Complete Vessel Weighing and Dosing Solution is a precision-engineered system designed for accurate measurement and automated dosing in tanks, silos, and industrial vessels. Combining four durable CPX stainless steel compression load cells with KCPN mounting modules and the advanced DGTPKF microcontroller, the system delivers dependable performance in demanding process environments. Supplied pre-calibrated and ready for installation, it removes the need for complex on-site calibration, allowing engineers to quickly install the load cells and offset the empty vessel weight without affecting accuracy. The DGTPKF controller supports single or multi-product dosing in both loading and unloading modes and is available in standard or analog output versions to suit different control requirements. With the addition of the IP67-rated JB4 junction box for secure load cell connectivity and electrical protection, this complete solution provides a reliable, efficient, and easy-to-integrate weighing system for industrial dosing applications.

£0.00
Product Information

Complete Vessel Weighing and Dosing Solution

A precision-engineered vessel weighing system combining four CPX compression load cells with the DGTPKF microcontroller, designed for accurate measurement and automated dosing in tanks, silos, and industrial vessels.

Delivered pre-calibrated and installation-ready, this complete weighing solution eliminates on-site calibration complexity. Your engineer can install the load cells with mounting modules, then offset the empty vessel weight without affecting system calibration—reducing commissioning time and ensuring measurement accuracy from day one.

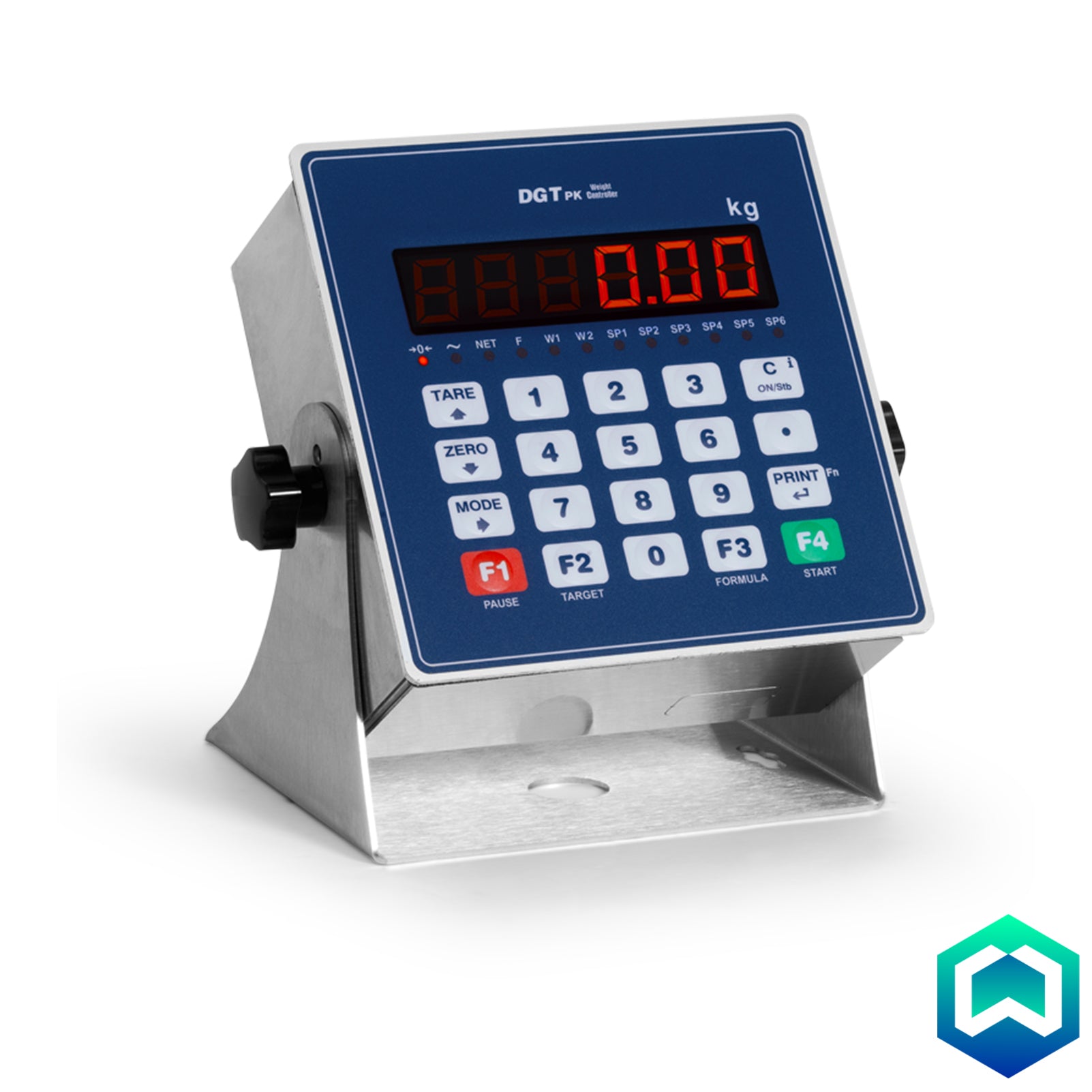

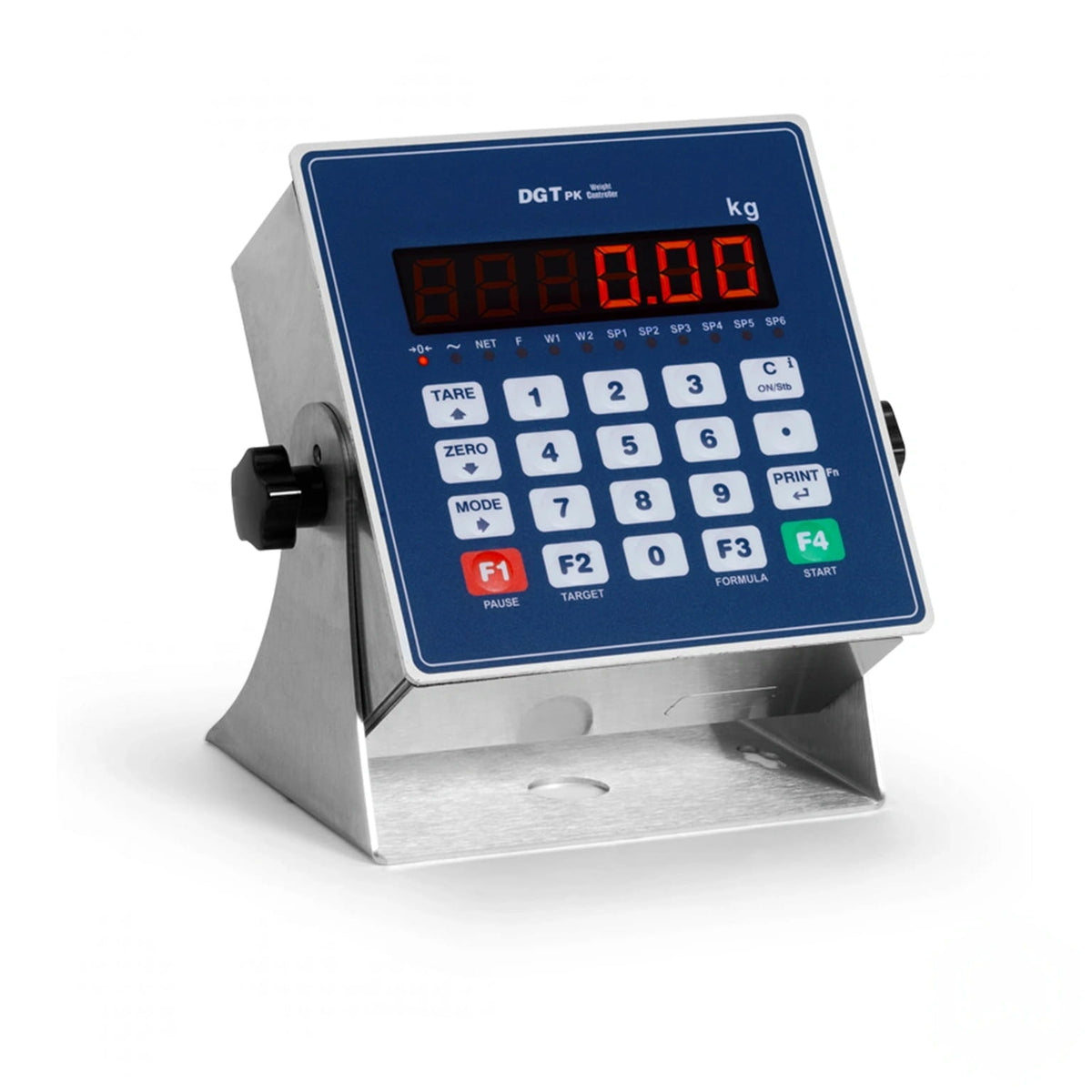

DGTPKF Microcontroller

High-performance dosing controller for table or panel mounting. Through straightforward parameter programming, the DGTPKF manages single-product dosage systems in loading or unloading modes, as well as multi-product dosages and mixtures.

Available Versions:

  • DGTPKFV2 – External 12V power supply, 4 inputs and 6 outputs
  • DGTPKFANV2 – External 12V power supply, 4 inputs and 6 outputs, with analog output

CPX Compression Load Cells

IP68-rated stainless steel compression load cells engineered for vessel, silo, and hopper weighing applications. When paired with KCPN mounting modules, CPX load cells deliver reliable performance in demanding industrial environments. Supplied with 5 metres of cable as standard.

KCPN Mounting Modules

AISI304 stainless steel mounting kits designed specifically for CPX compression load cells in vessel, silo, tank, and hopper installations.

  • Superior resistance to lateral forces
  • Height-adjustable via locking nut
  • Straightforward installation procedure
  • Overload protection locking nut
  • Self-centring connection segment between lower and upper plates

JB4 IP67 Junction Box

IP67-rated junction box with electronic board for connecting 2, 3, or 4 load cells. Features screw terminal boards for simplified connection and integrated protection circuitry against lightning and overvoltage. Ideal for static weighing systems including silos, tanks, vessels, and large containers.
Specification

Technical Specifications

System Configuration

  • Load Cells: 4 × CPX compression load cells
  • Mounting Hardware: 4 × KCPN10 stainless steel mounting modules
  • Controller: DGTPKF microcontroller (choice of DGTPKFV2 or DGTPKFANV2)
  • Junction Box: JB4 IP67-rated, 4-input
  • Calibration Status: Pre-calibrated, installation-ready

CPX Load Cell Specifications

  • Construction: Stainless steel
  • Protection Rating: IP68
  • Capacity Range: 250kg to 12,500kg (per load cell)
  • Cable Length: 5 metres (standard)
  • Application: Compression weighing for tanks, silos, vessels, hoppers

DGTPKF Controller Specifications

  • Type: Microcontroller for dosing and weighing
  • Mounting: Table or panel mount
  • Power Supply: External 12V DC
  • Digital I/O: 4 inputs, 6 outputs
  • Analog Output: Available on DGTPKFANV2 version
  • Functions: Single-product dosage (loading/unloading), multi-product dosage, mixture control
  • Programming: Parameter-based configuration

KCPN10 Mounting Module Specifications

  • Material: AISI304 stainless steel
  • Compatibility: CPX compression load cells up to 12,500kg
  • Height Adjustment: Locking nut mechanism
  • Lateral Force Resistance: High
  • Overload Protection: Integrated locking nut
  • Connection: Self-centring segment between plates

JB4 Junction Box Specifications

  • Protection Rating: IP67
  • Load Cell Inputs: 4 (supports 2, 3, or 4 load cells)
  • Connection Type: Screw terminal boards
  • Protection Circuitry: Lightning and overvoltage protection
  • Application: Static weighing systems (silos, tanks, vessels, containers)

System Capabilities

  • Weighing Applications: Tanks, silos, vessels, hoppers
  • Dosing Modes: Loading, unloading, batch control
  • Product Handling: Single-product or multi-product mixtures
  • Installation: Engineer-installable with tare offset capability
  • Total System Weight: Approximately 50kg
