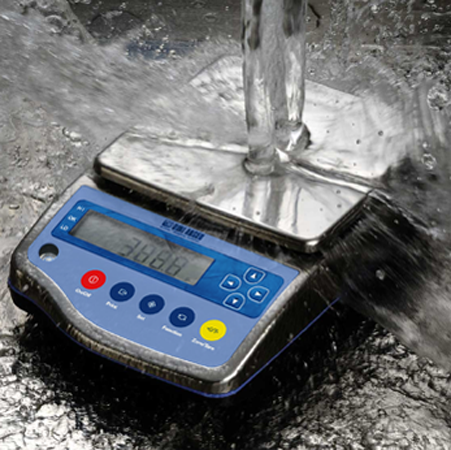

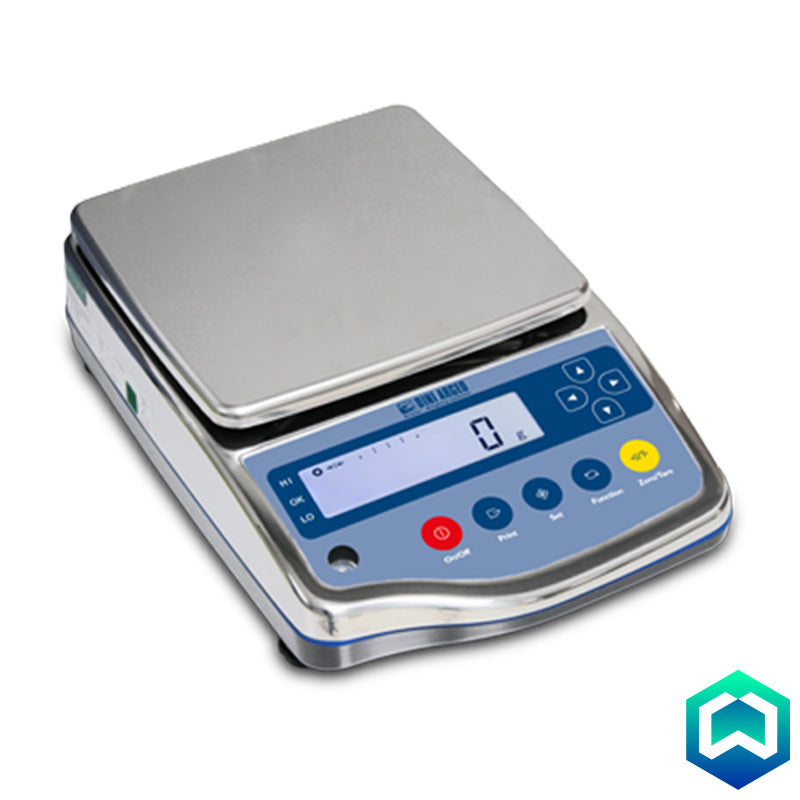

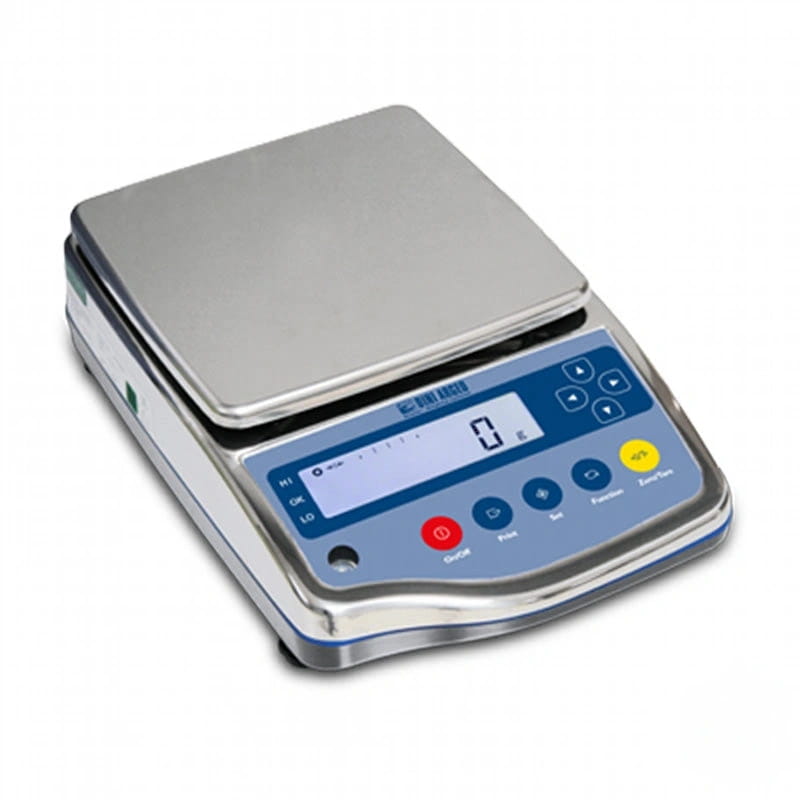

GAM Series Stainless Steel Technical Precision Scale

GAM TECHNICAL FEATURES

• High contrast back-lit display.
• Splash proof membrane keypad.
• Splash proof construction, upper structure completely in stainless steel.
• Overall IP65 protection.
• Stainless steel plate, size:
  - GAM320 and GAM820 models Ø 140mm
  - GAM2200, GAM3200, GAM6200, GAM8200, GAM15000 models 190x190mm.
• Weight detection through tuning fork system.
• Level and adjustable foot assembly.
• Power supply: standard fitted with 230 Vac power adapter or optional kit for power supply through 4 AA batteries.
• RS232/c port for connection to PC, 3590E series indicator or printer.
• Upon request:
  - ACCREDIA calibration with issuing of relative certificate;
  - CE-M approval (Initial Verification Included, validity 3 years);

STANDARD FUNCTIONS

• Totalisation;
• Weight checking;
• Counting;
• % Weight;
• Suspended weighing (for gravimetric measurements);
• Animals weighing;
• Zeroing;
• Semi-automatic tare;
• Digital calibration.

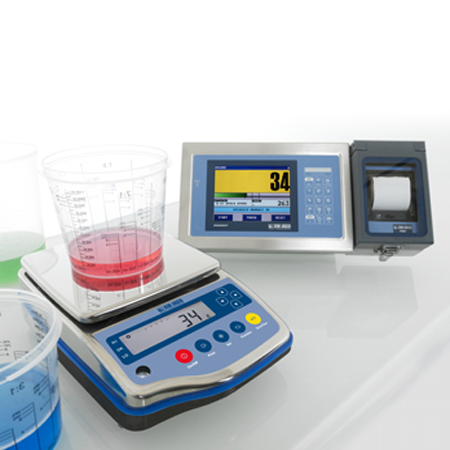

ADVANCED APPLICATION WITH 3590E TOUCH SCREEN

• This configuration allows you to use the GAM scale as a digital platform for 3590E TOUCH SCREEN indicators.
• To create a weighing station with 3590E TOUCH SCREEN, you need to order together with the scale, the indicator, the RSCBSHG cable, and the S1 advanced configuration service.ADVANCED FUNCTIONS via serial port connection:
• Statistical sampling of prepackaged goods
• Microdosing
• Multiscale counting
• Tolerance control
• Wizard formulation
• Receipts, labels printing, storage and data transmission
