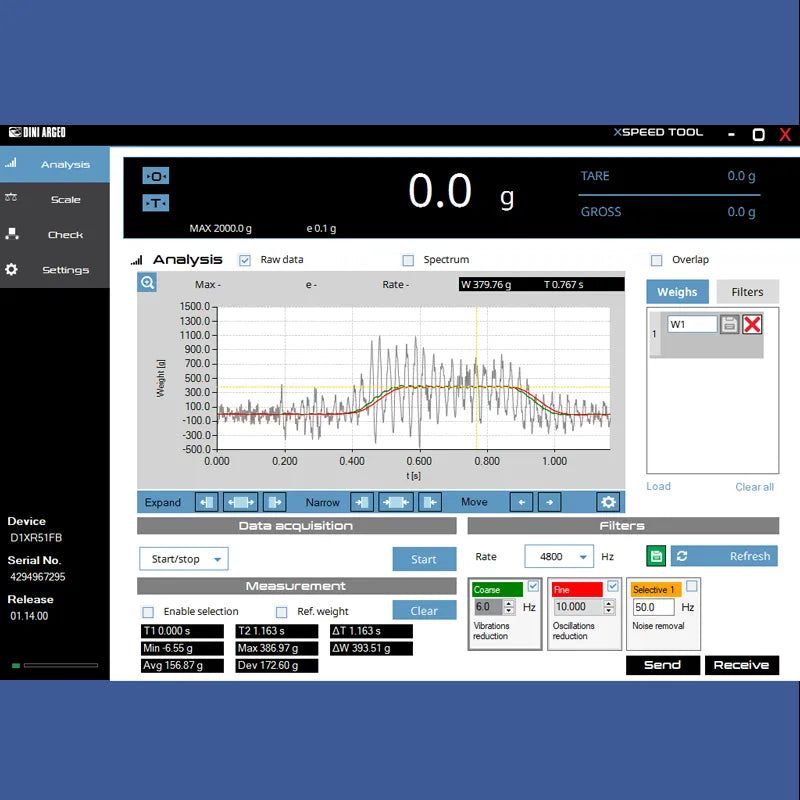

Xspeed Software Analysis Screen

XSPEED TOOL: Free Diagnostic and Weighing Filter Configuration Software

By Dini Argeo

XSPEED TOOL is free PC software for real-time load cell signal analysis and filter configuration. Compatible with the DGT4X and DGT1SX series, it enables precise, fast weighing in automated systems by applying fully configurable filters to remove vibrations, noise, and signal disturbance.

£0.00
Product Information

Supported Products

  • DGT4X Series
  • DGT1SX Series

XSPEED TOOL

Free download from the Download section. PC software that allows you to record the signal coming from the load cell in real time and process it by applying specific filters to remove vibrations, disturbance and noise. Indispensable to obtain precise and fast weighs in automated weighing systems.

Features

  • Time and frequency domain signal analysis.
  • Data reception at very high speed (up to 2,600 readings per second).
  • Automatic data acquisition based on time or weight thresholds.
  • Real time signal processing.
  • Application of filters of your choice, fully configurable, to remove vibrations, oscillations, peaks etc., making the weight stable and the scale reactive and performing.

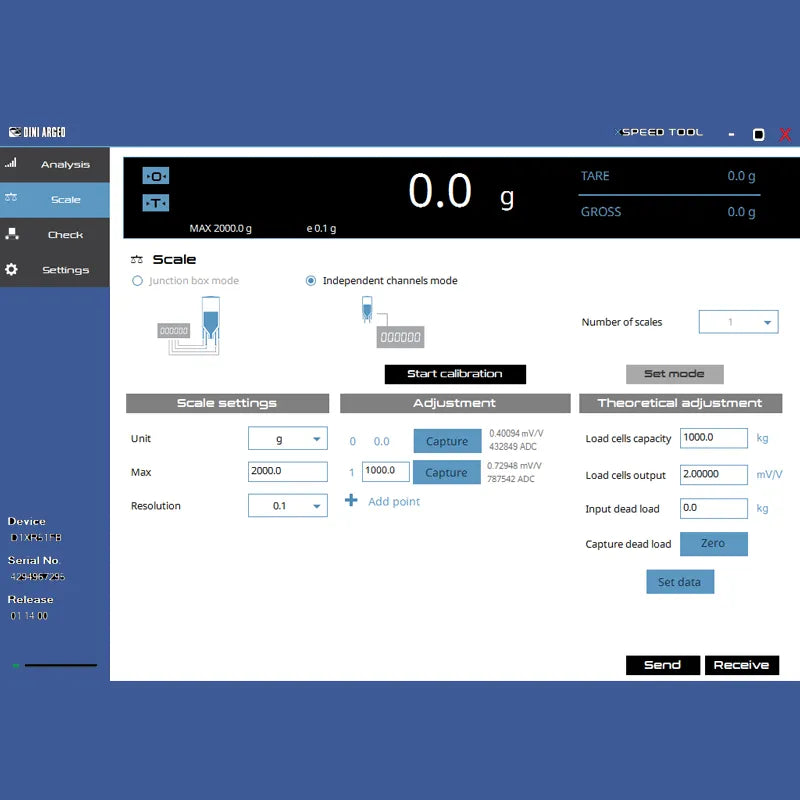

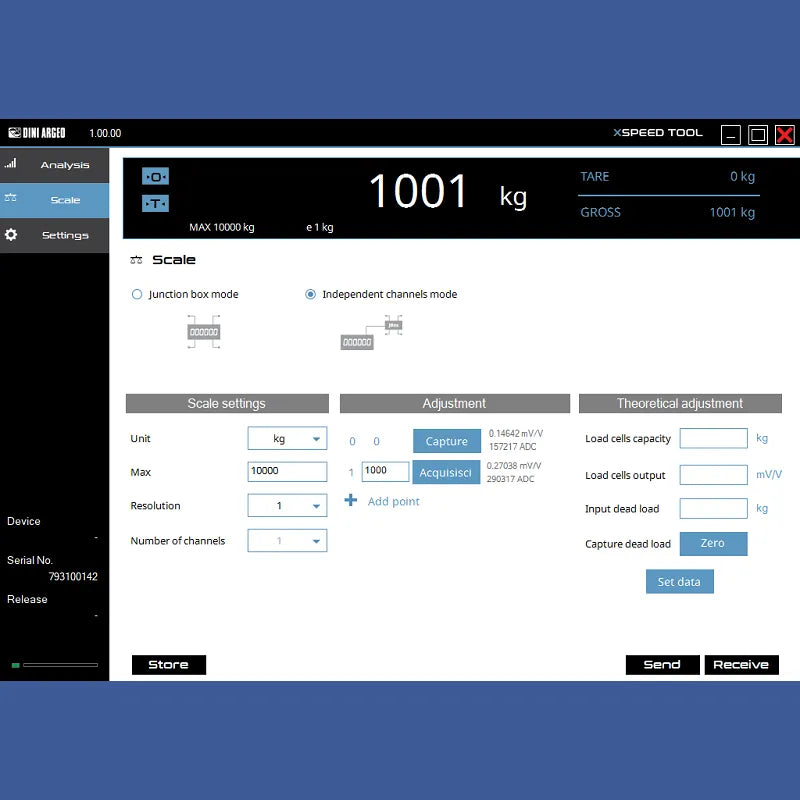

  • Calibration of the instrument, which includes:
    • Calibration using sample weights, with the possibility to linearise the system up to 8 points.
    • Theoretical calibration, with the insertion of the data of the system to be realised (load cells, dead load etc.).
  • Archive of weighs and configured filters.

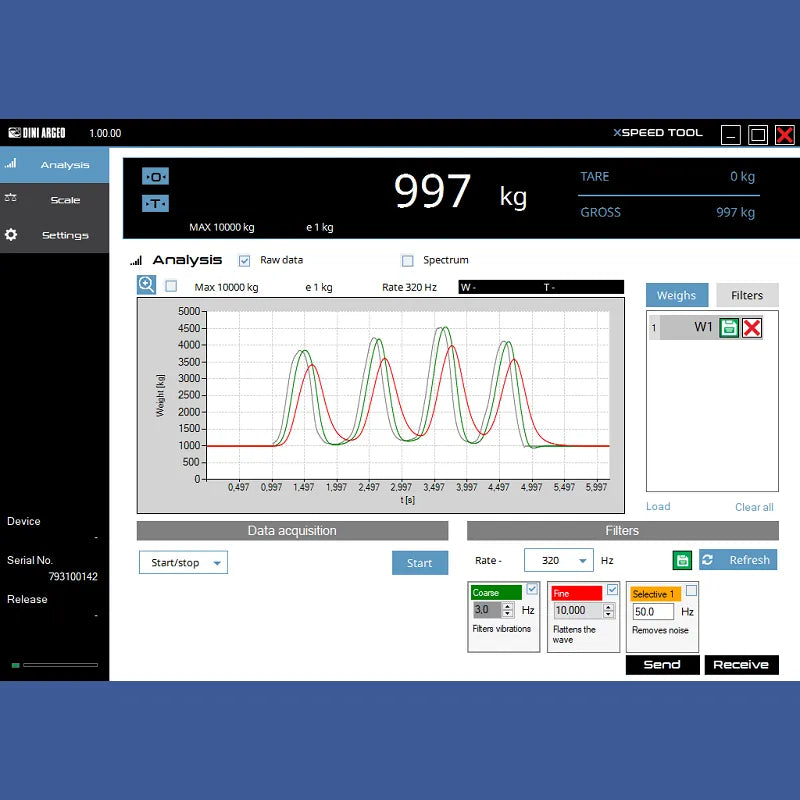

Filters

  • Coarse filter — removal of signal background noise and weight stabilisation.
  • Fine filter — increases reading accuracy.
  • Selective filter — isolates and eliminates noise with precise frequencies.

Minimum Requirements

  • Operating System: Windows 10
  • Processor: 1.6 GHz
  • RAM: 4 GB
  • Free Hard Disk Space: 250 MB
Specification

Compatible Instruments

  • DGT4X Series
  • DGT1SX Series

Data Acquisition

  • Reading speed: up to 2,600 readings per second
  • Time and frequency domain signal analysis
  • Automatic acquisition based on time or weight thresholds

Filters

  • Coarse filter — background noise removal and weight stabilisation
  • Fine filter — increased reading accuracy
  • Selective filter — elimination of noise at precise frequencies

Calibration

  • Sample weight calibration with up to 8-point linearisation
  • Theoretical calibration using load cell and dead load data

PC Minimum Requirements

  • Operating System: Windows 10
  • Processor: 1.6 GHz
  • RAM: 4 GB
  • Free hard disk space: 250 MB

Licensing

  • Free download — no licence required
