VisioPointer® Vision Inspection System

VisioPointer®: High-Speed Vision Inspection for Food and Pharma Packaging

The VisioPointer® from TriVision is a high-speed vision inspection system designed for thorough quality control of food and pharmaceutical packaging. Built as a compact turnkey solution, VisioPointer® combines seal, label and artwork, print, and barcode inspection in a single unit, enabling manufacturers to detect defects reliably at production speed and reduce downstream quality failures.

Comprehensive Inspection in a Single Unit

VisioPointer® is available in multiple configurations, supporting seal inspection, label and artwork verification, print quality assessment, and barcode reading. Top, bottom, and side cameras provide complete package coverage in one pass, removing the need for separate inspection stations and reducing system complexity on the production line.

Intuitive Software with Integrated Data Analytics

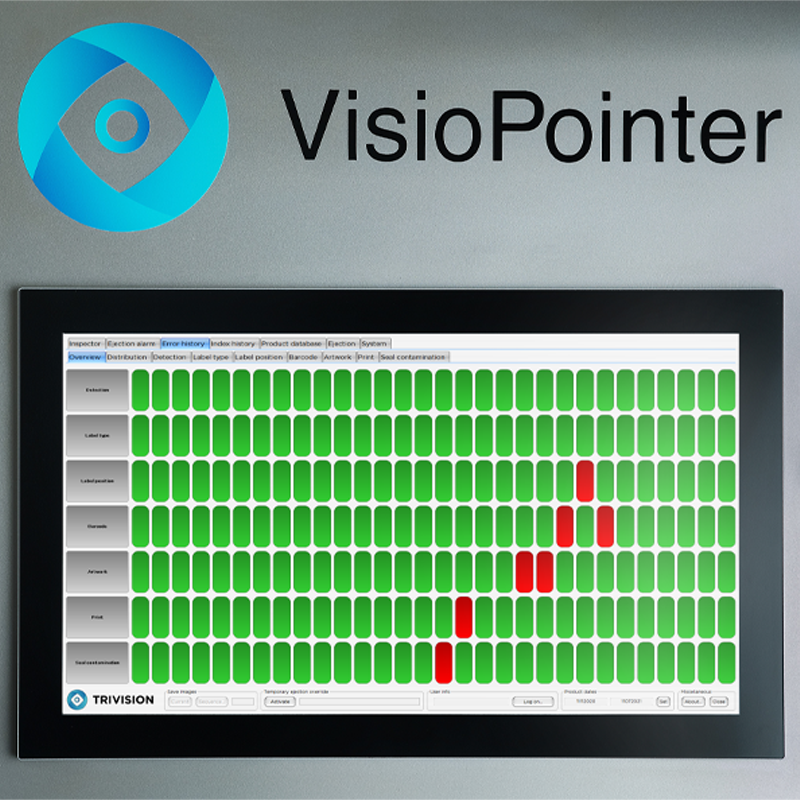

Powered by TriVision's intuitive vision software, VisioPointer® makes it straightforward for operators to monitor production and make real-time adjustments. The integrated data analytics tool enables manufacturers to identify trends, conduct root cause analyses, and implement early error detection — converting inspection data into actionable production intelligence.

Turnkey Construction for Fast Integration

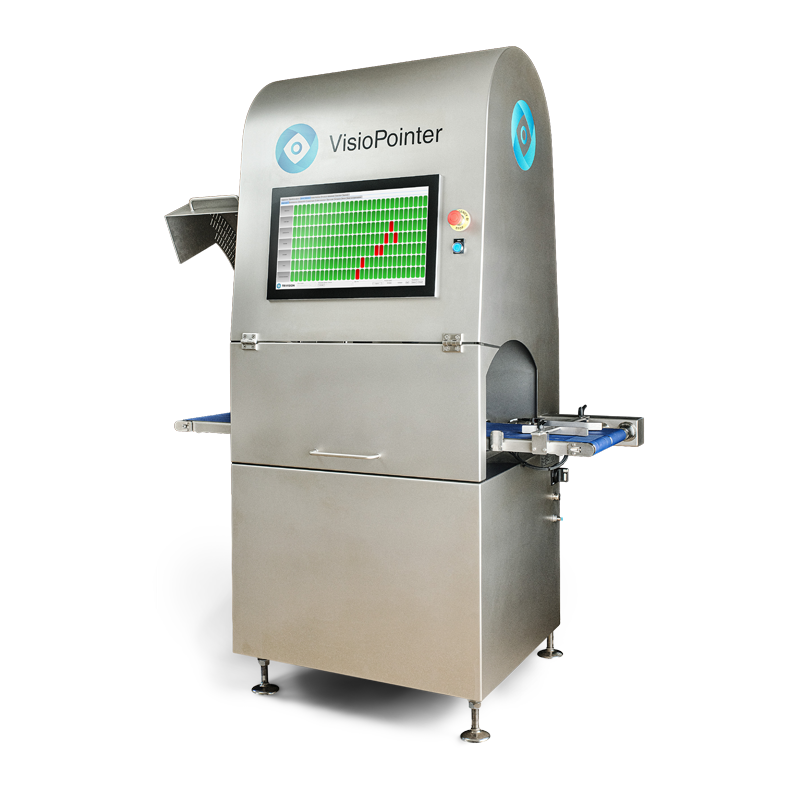

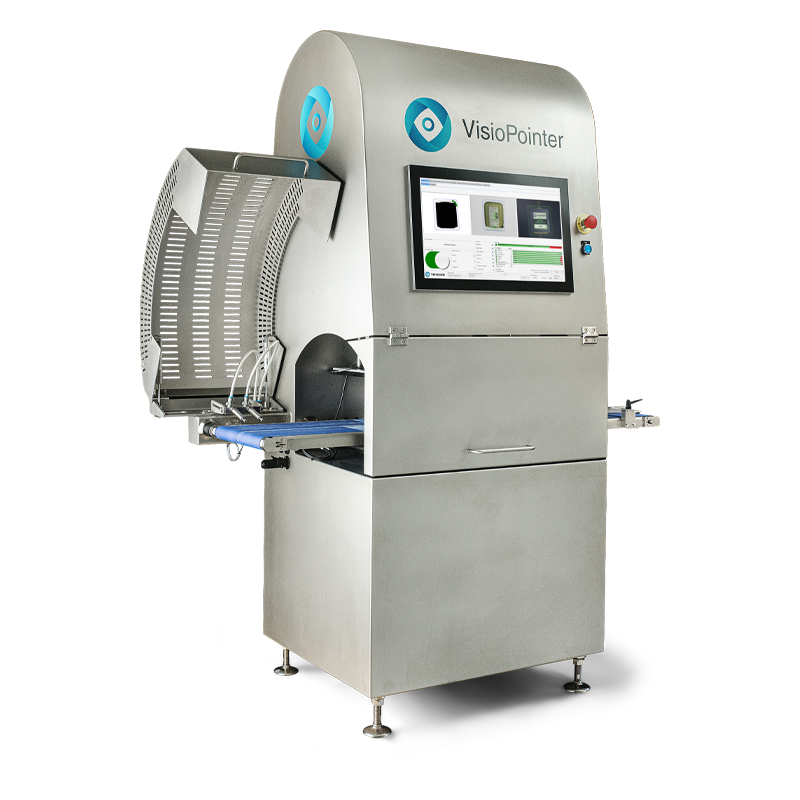

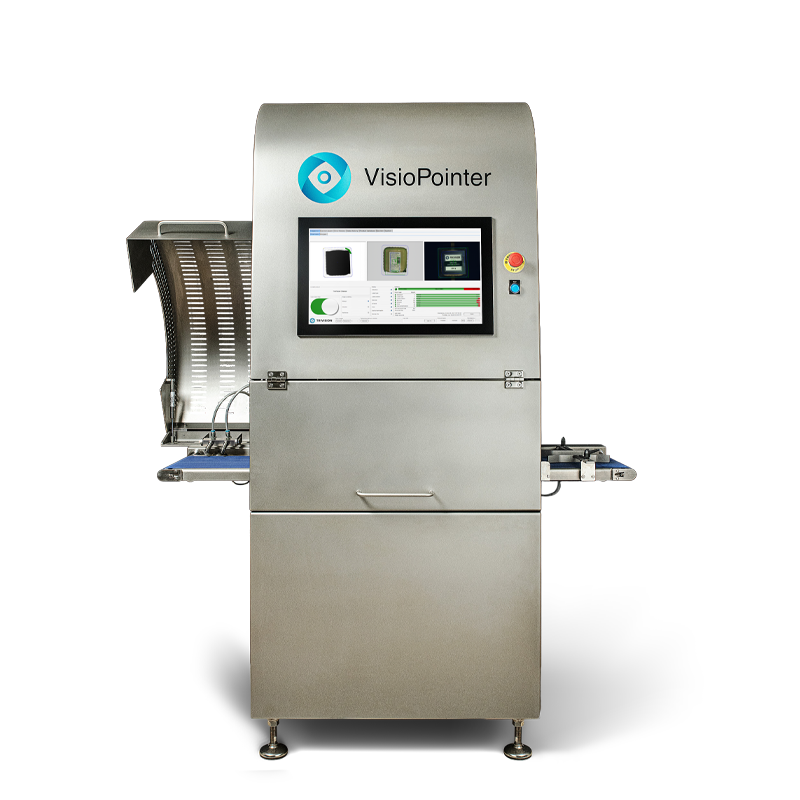

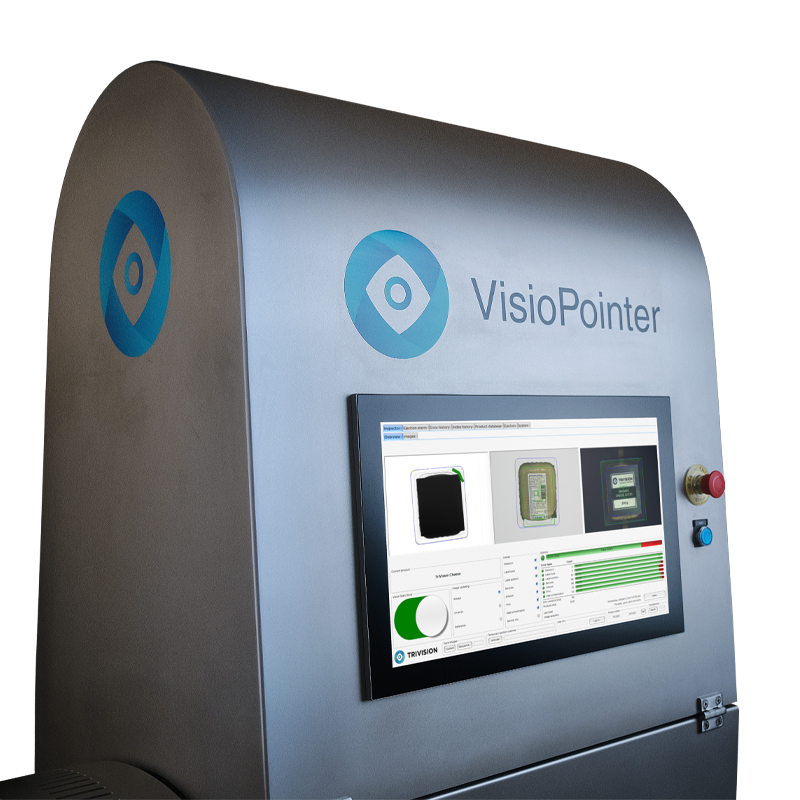

VisioPointer® delivers a complete turnkey installation comprising sensor, camera array, lighting, built-in conveyor, ejector mechanism, and operator panel in a single stainless steel enclosure. With an IP 65 rating and construction in AISI 316 and AISI 304 stainless steel, the system is suited to hygienic food and pharma environments and supports conveyor speeds up to 800 mm/s.

Industrial Computing and Open Connectivity

The built-in industrial PC running Windows 11 IoT Enterprise LTSC ensures stable, long-term operation. Gigabit Ethernet and Digital I/O connectivity, combined with OPC UA and REST communication protocols, enable seamless integration with existing factory data systems, MES platforms, and statistical process control software.

Optimise Quality Control Across Every Package

By consolidating multiple inspection functions into one compact platform and pairing them with TriVision's analytics toolset, VisioPointer® gives manufacturers the visibility and control to maintain consistent packaging quality, reduce waste, and meet the demands of regulated food and pharma production environments.
