Radwag PS R2.H Precision Balance

By Radwag

The Radwag PS R2.H series of precision balances takes the standard precision balance to a new level of durability and performance. Building upon the features of the R2 series, the R2.H series is specifically designed to operate reliably in challenging environments with dust and water splashes (IP54 rating)

Product Information

Features:

  • Hermetically Sealed Interfaces: The interfaces are housed in a hermetically sealed compartment, separate from the balance mechanism, for added protection.
  • IP54 Rating: Designed to withstand condensed dust and water droplets falling at various angles, making it suitable for demanding environments.
  • Enhanced LCD Display: The new, highly readable LCD display provides clear weighing results and includes a text information line for displaying additional messages and data, such as product name or tare value.
  • Pan Options: Available with two pan sizes (128x128 mm or 195x195 mm). Balances with the smaller pan include a draft shield.
  • Internal Mass Adjustment: Equipped with an automatic internal mass adjustment system.
  • Under-Pan Weighing: Offers the versatility of under-pan weighing for density determination or other specialised applications.
  • Durable Construction: Features a robust plastic housing and a stainless steel pan.
  • Multiple Interfaces: Includes 2 x RS 232, USB type A, USB type B, and optional wireless connectivity.
  • Computer Connectivity: Connect to a computer via USB using a downloadable driver from the RADWAG website.
  • Databases: Manage data with five integrated databases for users, products, weighments, tares, and ALIBI memory. Store up to 10 users, 1,000 products, 5,000 weighments, and 100 tares.
  • ALIBI Memory: Securely store up to 100,000 weighment records in the ALIBI memory, ensuring data integrity and long-term data retention.
  • Data Exchange: Quick USB interface allows for import and export of databases using USB pen drives.
  • Direct Access Keys: Dedicated keys provide quick access to databases, functions, and programmable function keys (F1-F4) for efficient navigation and operation.
Specification

Pan Dimensions:

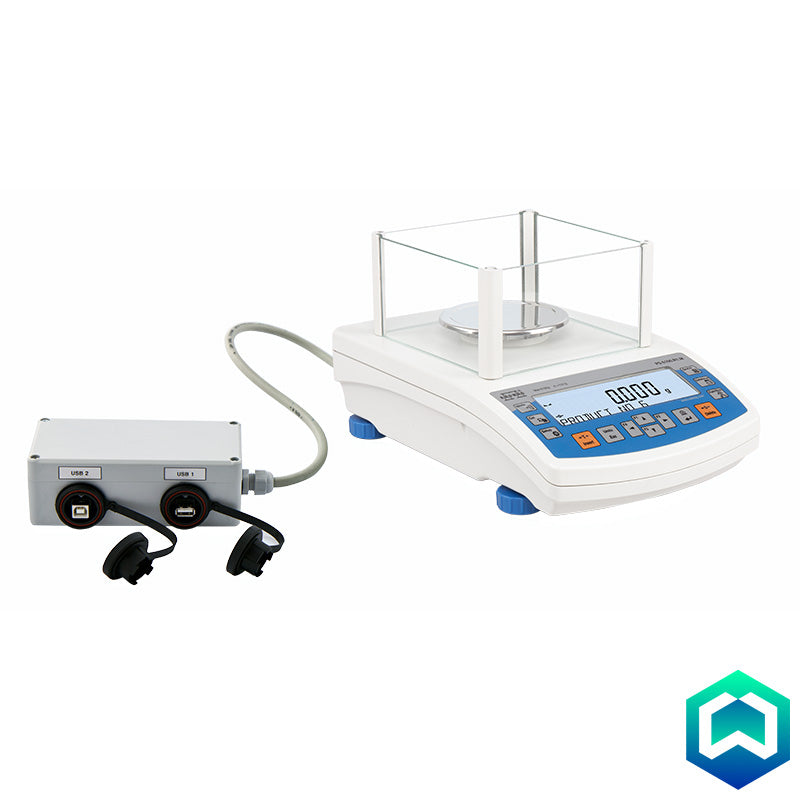

  • 200 / 2000g, 210g, 360g, 600g, 750g, 1000g, - ø100 mm

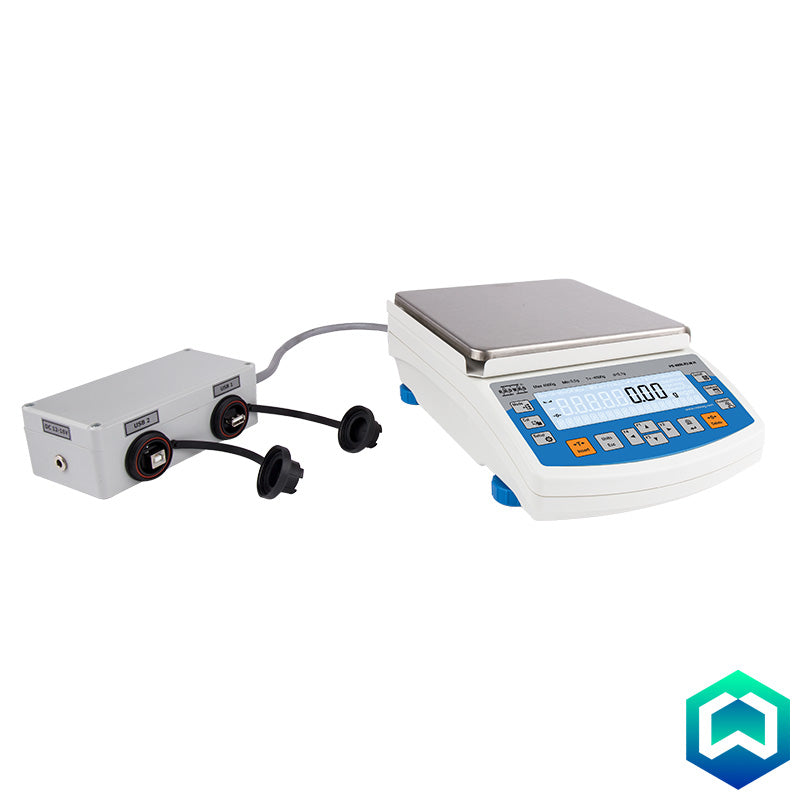

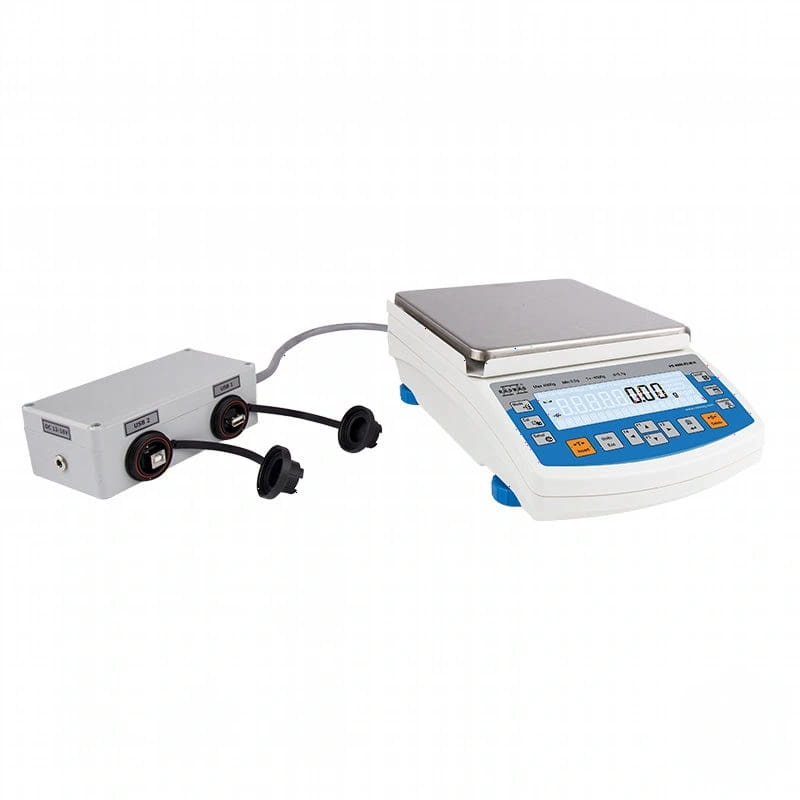

  • 600g, 2100g, 3500g, 4500g, 6100g - 195×195 mm

IP Rating: IP54

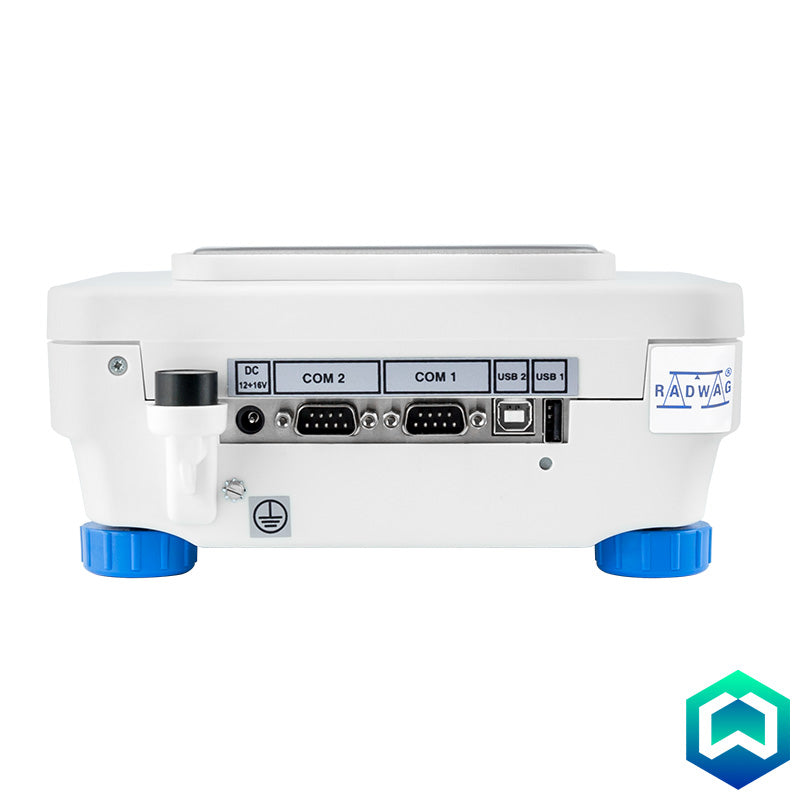

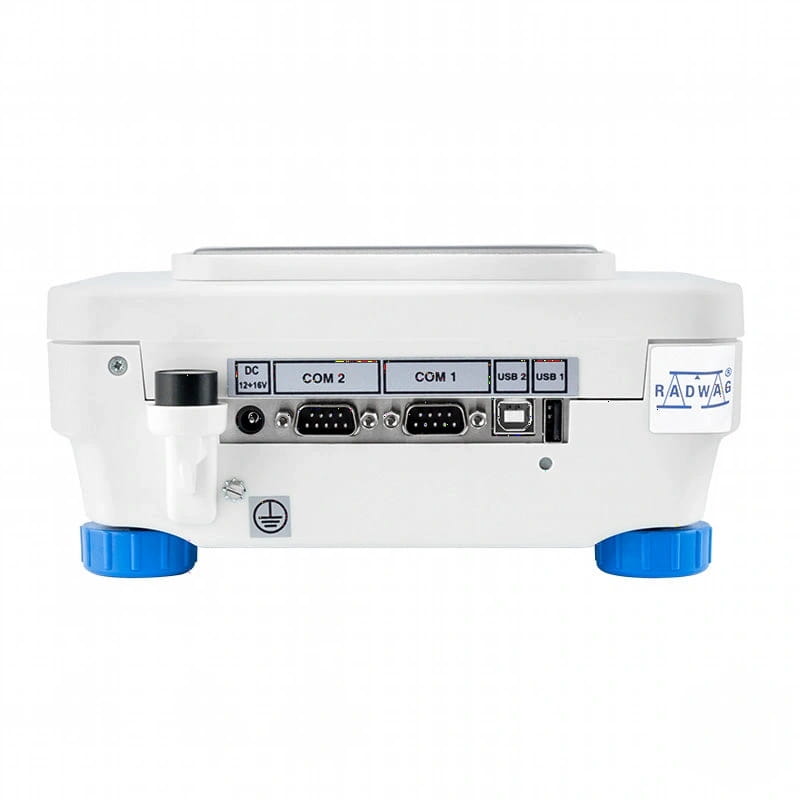

Communication: 2×RS232¹, USB-A, USB-B,
Wi-Fi (option)

Display: LCD (backlit)

Operating-Temperature: +10 — +40 °C

Power Requirements: Adapter: 100 – 240V AC
50/60Hz 0,6A; 12V DC 1,2A
Balance: 12 – 15V DC 0,4A max

Downloads

Please click here for the PS R2.H Precision Balance datasheet


£1,642.00
