Radwag DWT/RCHY Checkweigher

Radwag DWT RCHY Checkweigher

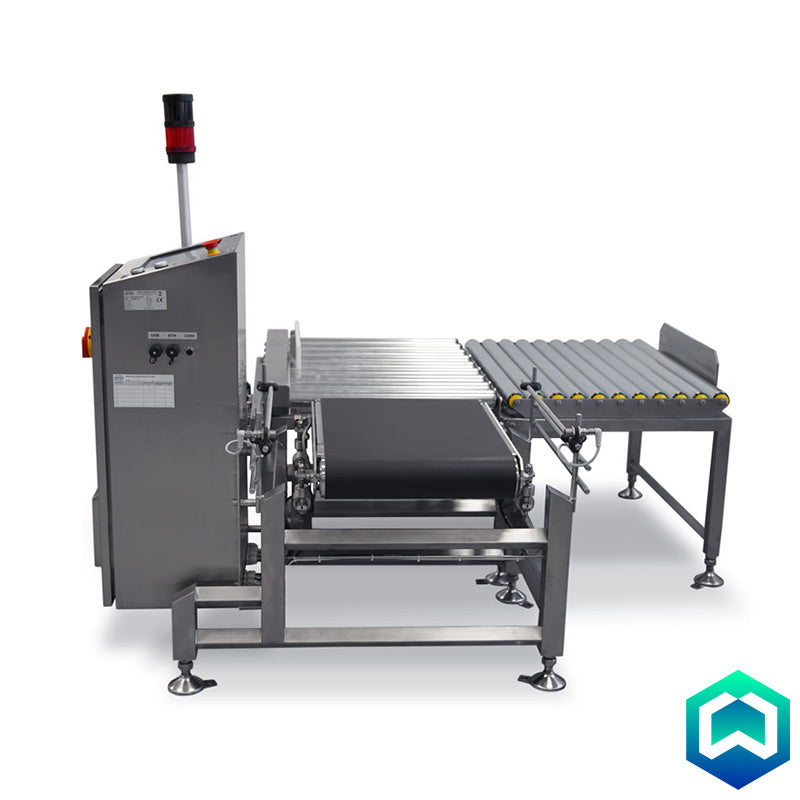

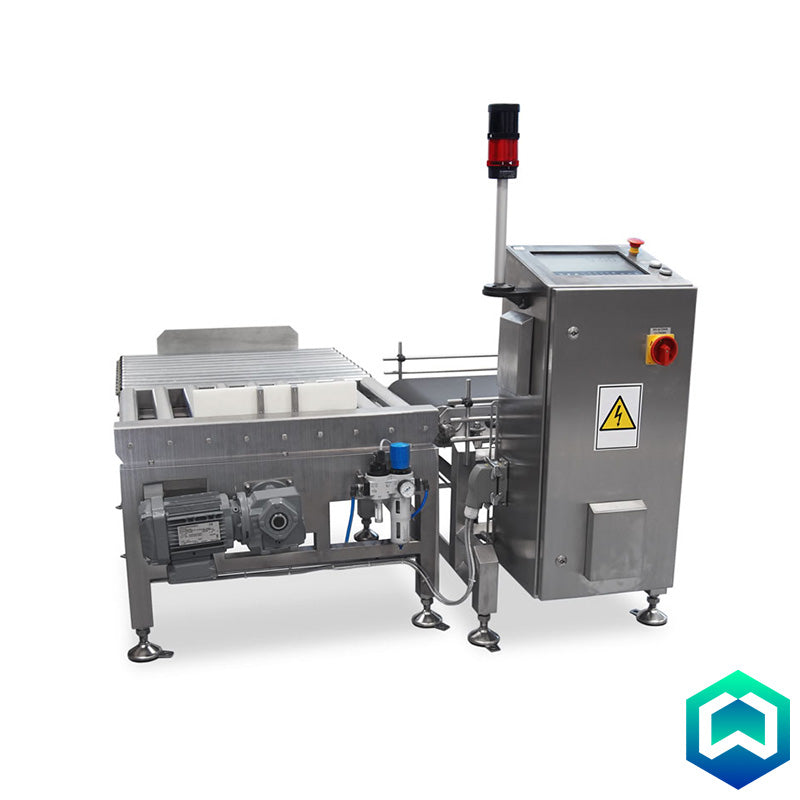

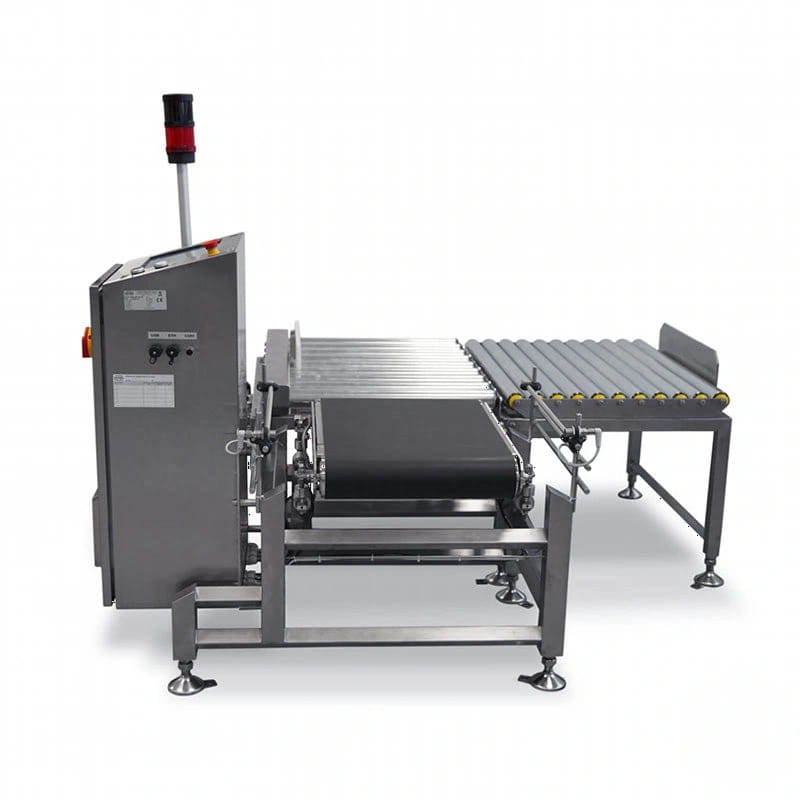

The DWT/RC series automatic checkweigher is a robust solution designed for precise weight control of heavy loads and cumulative products within processing lines. Constructed from durable stainless steel, this checkweigher ensures longevity and hygiene, making it ideal for demanding industrial environments.

Product Details

DWT/RC Series Automatic Checkweigher

Equipped with the HY series terminal, featuring a user-friendly touchscreen display and alphanumeric keyboard, operation is intuitive and efficient. The HY controller's advanced capabilities facilitate seamless integration with peripheral devices, providing comprehensive control and data acquisition.

Versatile Application and Compliance

This checkweigher is suitable for a wide range of industries, including agri-food, chemical, meat, tobacco, distilling, engineering, brewing, and transport/shipping. It facilitates control of single goods in accordance with both customer-defined regulations and current standards for Control of Packaged Goods. The DWT/RC series is attested by NIH, ensuring compliance and reliability. Operating in both dynamic and static modes, this versatile device provides accurate weight verification for diverse production needs.

Comprehensive Functionality and Data Management

The DWT/RC series offers an array of functions designed to streamline production and quality control. These include real-time statistics, automatic report generation, product and operator databases, definable access levels, and remote control capabilities. The system excels at acquiring detailed data on controlled goods, enabling thorough analysis and traceability. Additionally, it supports cooperation with computer software for comprehensive record keeping.

Seamless Integration and Peripheral Device Compatibility

The checkweigher is engineered for seamless integration into existing processing lines, with a flexible I/O set allowing for broad configuration possibilities. It supports cooperation with various peripheral devices, including thermal printers for immediate printouts, external computers for data storage, additional conveyors, and dosing devices with feedback for precise weight adjustments. Implementation options further enhance its adaptability, featuring feeding conveyors with package separation, discrimination of defective goods (with separate sets for "too light" and "too heavy"), sounder and warning tower lights, and dedicated software for managing weighing records.

Certifications

Specifications

Maximum Capacity [Max]: 10-600kg

Minimum Load: 0.1-4kg

Readability [d]: 5-200g

Tare Range: -10 - -600kg

Display: 5.7” Resistive Colour Touchscreen

Protection Class: IP66 / 67

Communication Interface: RS232, RS485

Operating Temperature: -10 – +40°C

Capacity: max 50 pcs/min

Conveyor Velocity: 0.1 – 0.5 m/s

Speed: 0.1 – 0.5 m/s
