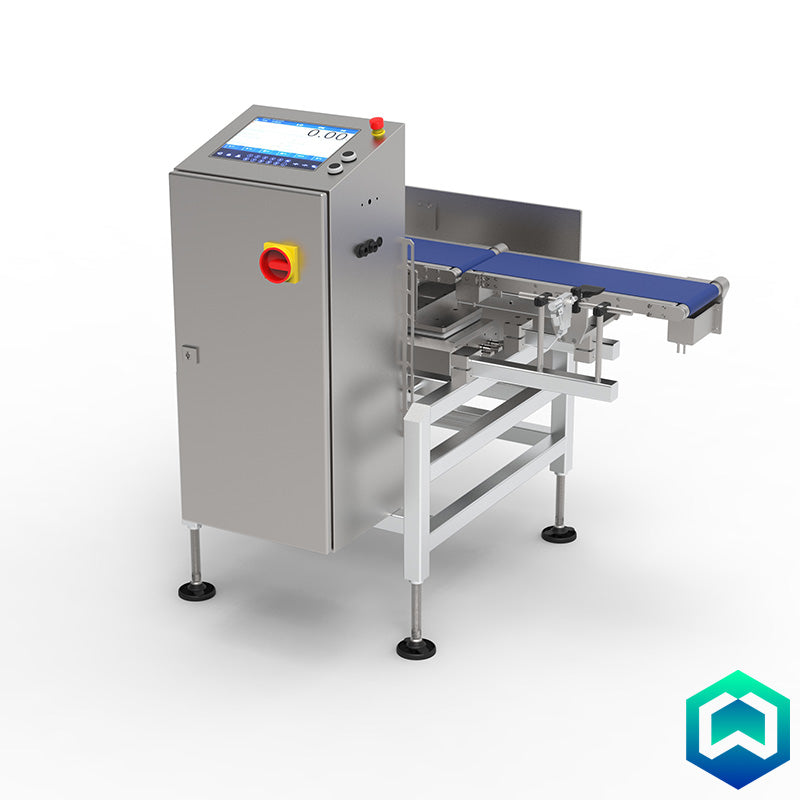

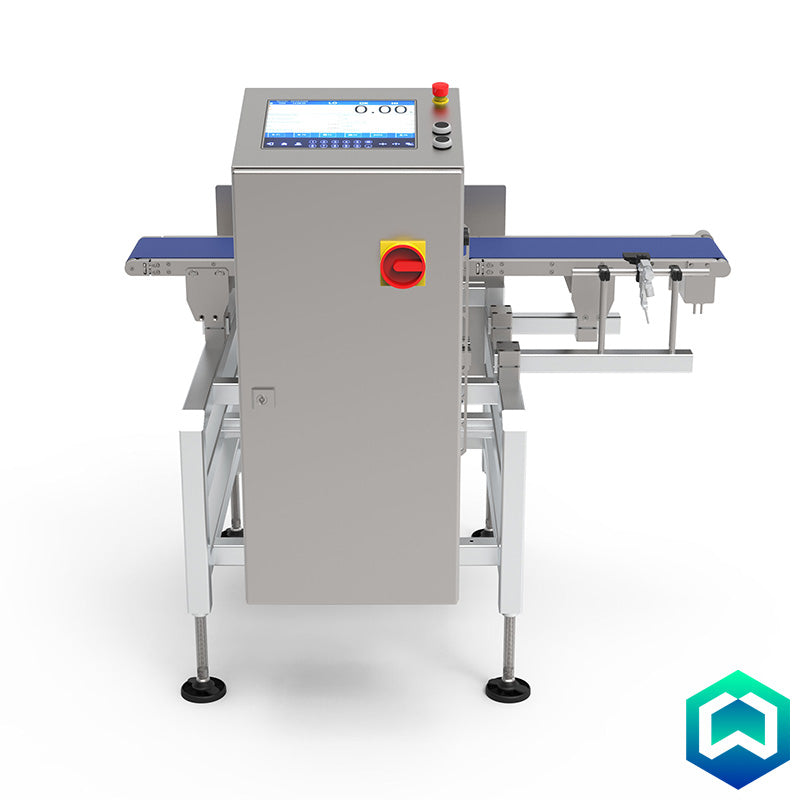

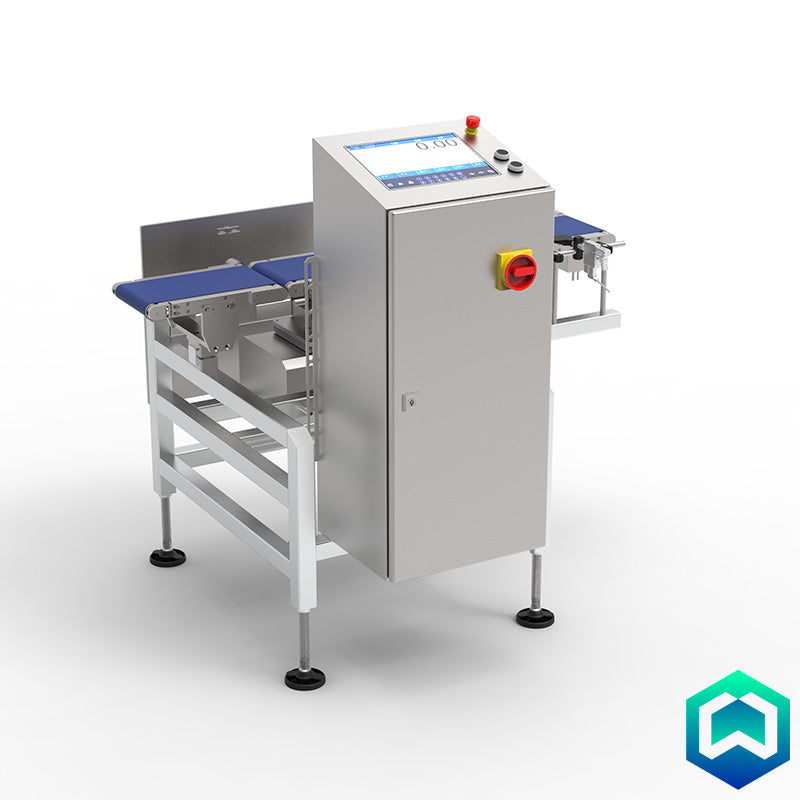

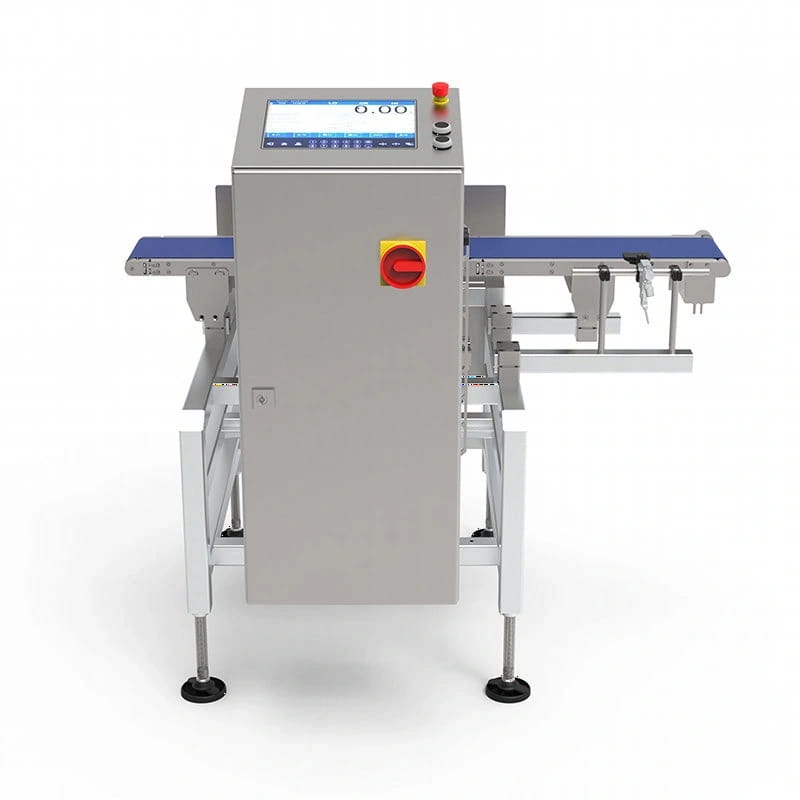

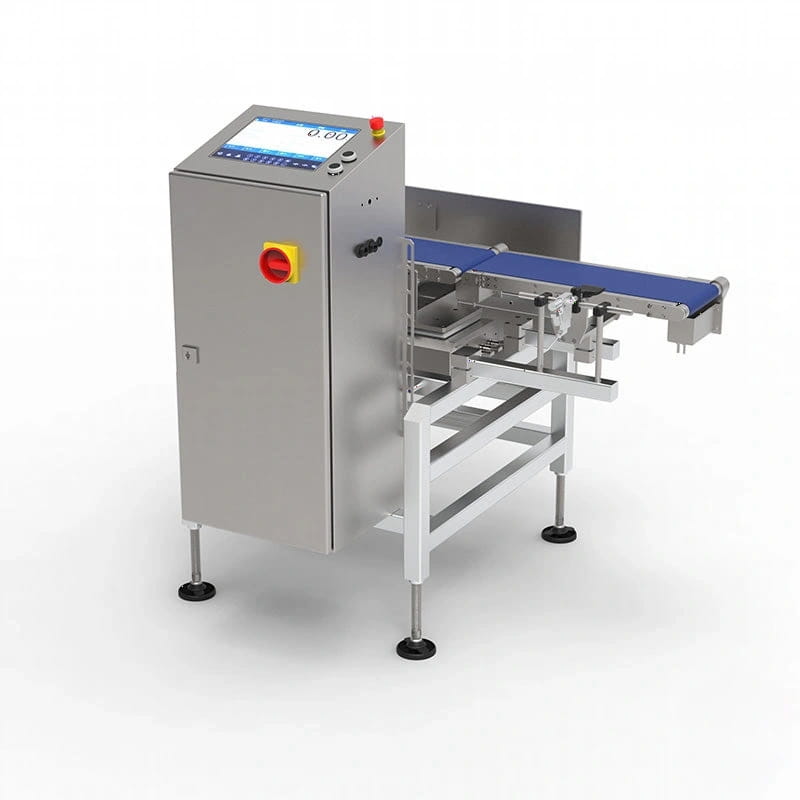

Radwag DWM HY10 Basic Checkweigher

Radwag DWM Basic Checkweigher

Experience unparalleled precision with our advanced inspection system. Featuring a vibrant 10.1-inch touchscreen, it delivers intuitive control over its high-accuracy magnetoelectric measurement, driven by reliable brushless motors. The integrated pneumatic sorting system ensures swift and accurate product categorisation. Built on a robust SQL database, it offers unlimited product and user capacity, while providing real-time statistical insights. Seamless integration with your existing production and control systems makes this the ultimate solution for efficient and reliable quality assurance.

Product Details

Precise Measurement and Effortless Operation

This device boasts a capacity of up to 150 pieces per minute, guaranteeing precise measurements every time. It automatically records data to a database, features an integrated rejecter for efficient removal of defective products, and generates detailed inspection reports.

Speed and Accuracy, That's Built to Last

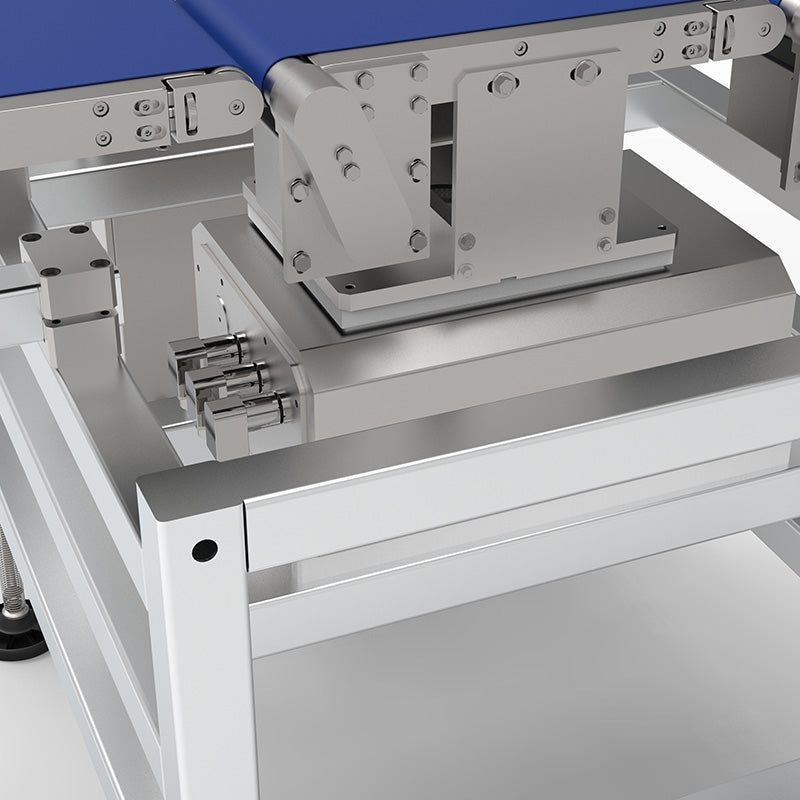

The DWM HY10 Basic Checkweigher features a reliable MWMH series magnetoelectric measuring unit, ensuring high speed, readability, and resistance to mechanical shock. Maintenance-free BLDC motors drive the scale, while the structure and control cabinet are constructed from durable stainless steel. Data recording and storage integrity are maintained by an SQL database system, offering a large capacity to register numerous operators and product types.

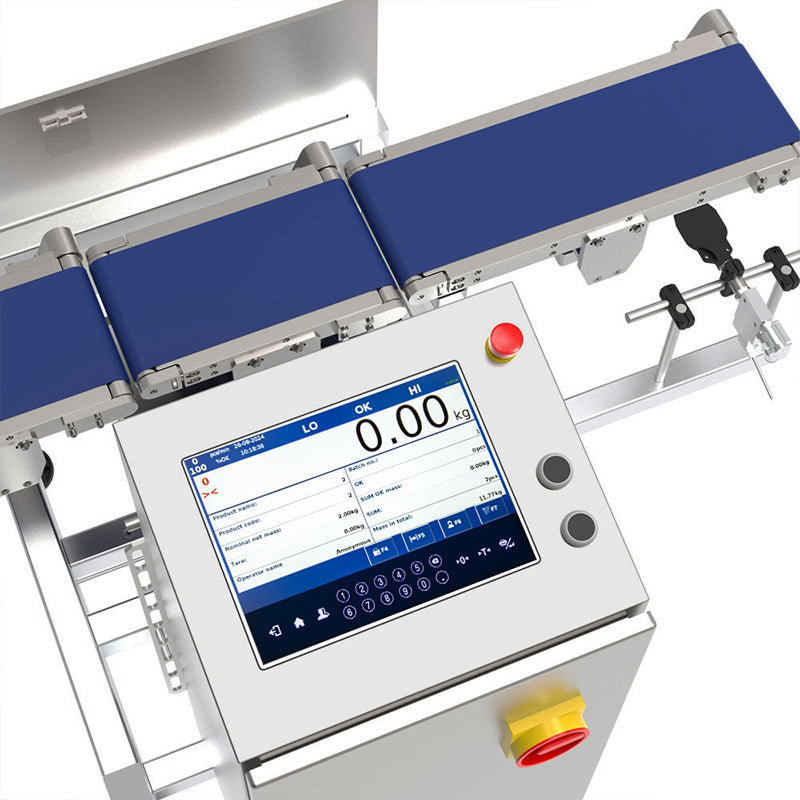

Large, Vibrant Touchscreen Display

Tired of endless scrolling? The 10.1-inch color touchscreen display maximizes efficiency by showing more information at a glance, even entire documents. The vibrant color display ensures clear menus, while the responsive touch panel provides a comfortable and intuitive user experience.

High-Speed, High-Readability Measurement

The MWMH module delivers unparalleled readability and exceptional repeatability for real-time results. Its high-speed measurement capabilities make it ideal for automated production lines. For rapid, dynamic processes, the module's transducer operates at a remarkable 3200 samples per second.

Durable, Quiet, and Efficient Motors

The DWM Basic checkweighers utilize maintenance-free BLDC motors, offering a longer lifespan, higher efficiency, and lower failure rate compared to traditional brushed motors. These quieter, lighter motors enable continuous operation at maximum torque, while providing a wide power range and precise speed control.

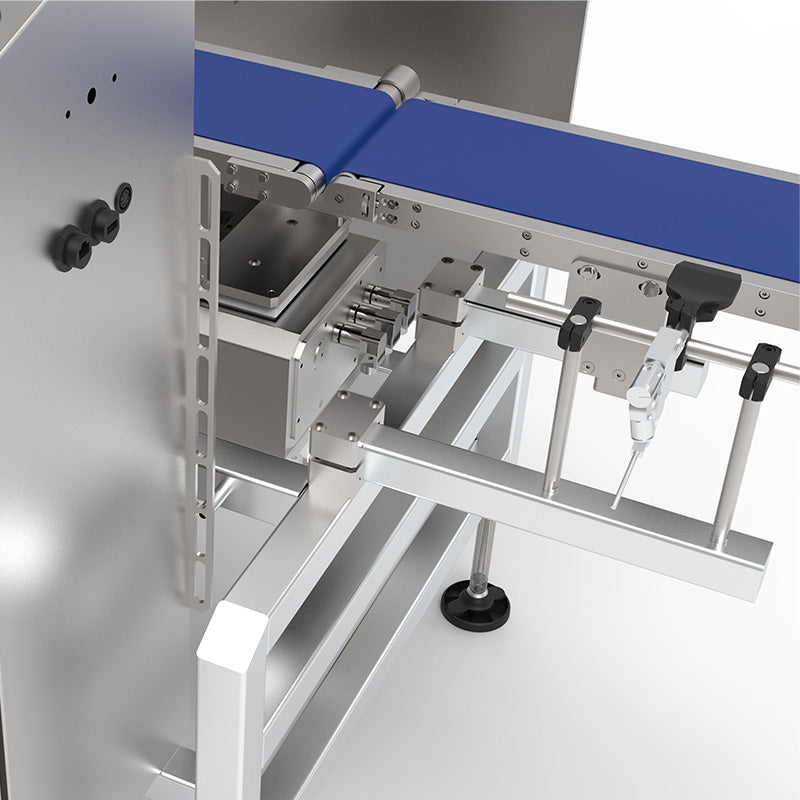

Reliable, Precise, and Simple Product Rejection

Our checkweighers feature a pneumatic discriminator system for reliable rejection of defective products. This system uses compressed air to quickly and accurately remove faulty items. Pneumatic systems are known for their inherent reliability, precise operation, and simple design.

Robust Data Management with SQL Database

Featuring SQL databases for seamless data management. These relational databases offer real-time data manipulation (add, delete, modify) without interrupting other users. They also minimize data redundancy, ensuring accuracy and efficient processing of large transaction volumes.

Certifications

Specifications

Maximum Capacity [Max]: 1500 – 6000g

Readability [d]: 0.5 – 2 g

Display: 10.1″ graphic colour touchscreen

Operating Pressure: 6 Bar

Protection class: IP55

Material: Stainless steel, aluminium anodowane

Communications: RS232, Ethernet, RS485

Optonal Interface: Profibus, Profinet, Ethernet IP, Modbus

Power Supply: 110 – 230 V AC 50 – 60 Hz

Power Consumption: 0.6kVA

Operating Temperature: +10 – +40 °C
