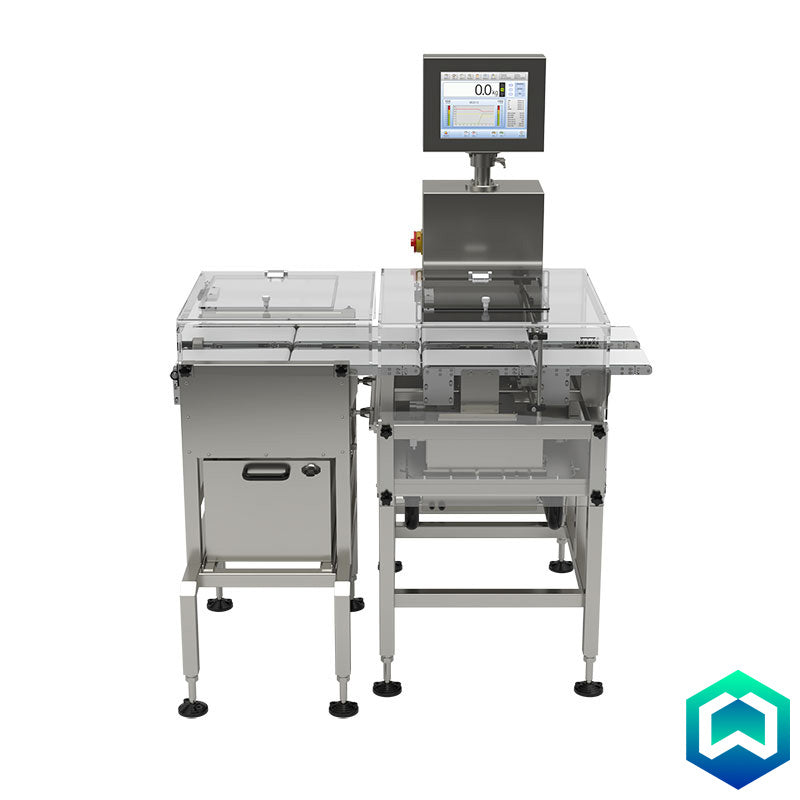

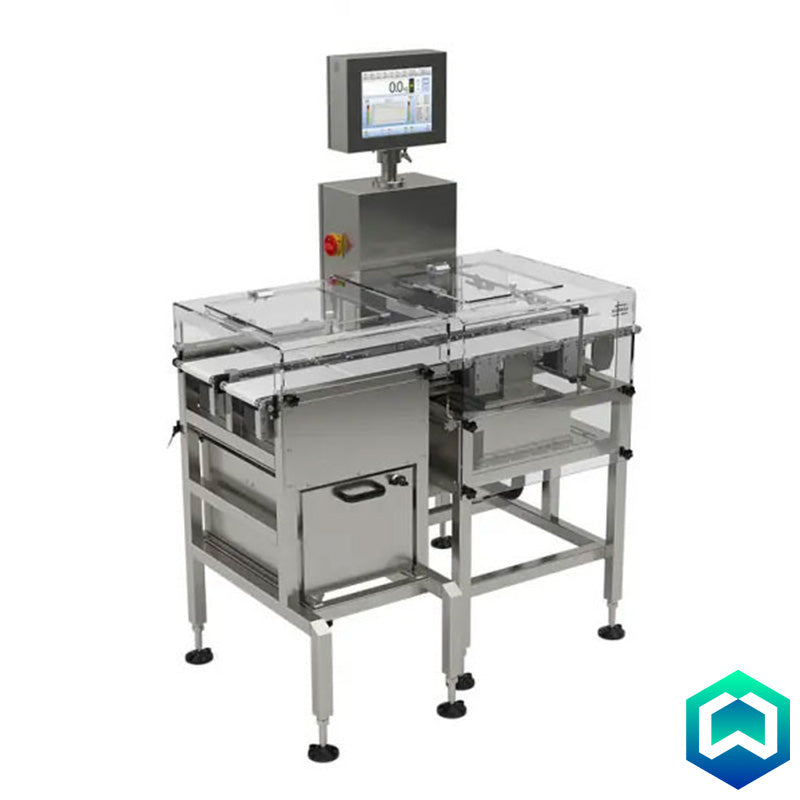

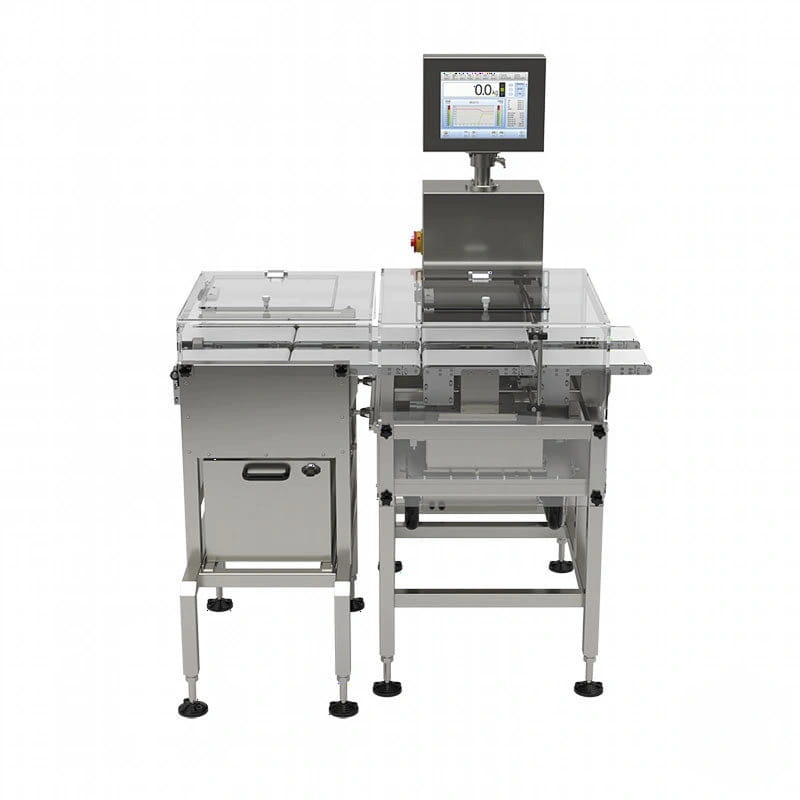

Radwag DWM H2 Multi Track Checkweigher

Radwag DWM H2 Multi Track Checkweigher

The Radwag DWM H2 checkweigher is a high-precision multi-track weighing solution designed for seamless integration with packaging machines. Its multi-track design maximises throughput, ensuring accurate weighing even at high speeds

Product Details

High-Throughput Multi-Track Weighing

Multiple checkweighers can be integrated for even higher throughput. Each track operates independently with its own weighing module and rejecter, all controlled from a single panel. This simplifies operation and consolidates reporting. The DWM H2 achieves up to 500 pieces per track, multiplied by the number of tracks.

Advanced Electronics and Seamless Integration

Advanced electronics simplify setup, operation, and reporting, generating comprehensive batch reports. The intuitive interface and integrated functions streamline use and record-keeping. Compliant with PGC Regulation, it ensures precise pre-packaged goods control. Robust communication modules enable seamless production line integration and remote monitoring. Connecting to an IT system provides real-time production overviews, weighing records, and detailed reports.

Flexible Product Control and Diverse Applications

Designed for loads up to 7500g, it offers flexible product control, adhering to user parameters or PGC Regulation. A "flexible limits" module caters to pharmaceutical needs. The device holds a PZH food approval certificate. Applications include pre-packaged goods control, production monitoring, dosing supervision, packaging verification, and pharmaceutical weighing. Features include static/dynamic weighing, databases, reporting, +/- control, automatic mass correction, rejecter verification, and conveyor speed regulation.

Intuitive Operation and Flexible Configurations

The DWM H2 uses an industry-standard computer with Windows Embedded for intuitive operation. Its Microsoft SQL Server database ensures secure data storage and easy IT system integration. Dual storage media enhances data protection. A real-time system manages all elements for reliable operation. Ethernet connectivity facilitates data exchange, remote configuration, and real-time visualization. Models offer various configurations including separate rejecters, swing conveyor rejecters, signaling, feeder control, printer/labeler operation, USB ports, Profibus compatibility, and archiving software.

Certifications

Specifications

Maximum Capacity [Max]: 1500-7500g

Minimum Load: 4 - 20g

Readability [d]: 0.2 - 1 g

Tare Range: -1500 – -7500 g

Max Readability of non-verified scale: 0.2-1g

Expanded Reading Unit: 0.01g - 0.5g

OIML Class: XIII (1), Y (a)

Protection class: IP55, IP65

Keypad: touch screen

Construction: mild steel / Stainless steel

Communications: Ethernet, USB, RS232, I / O, Modbus, ProfiNet (Option), ProfiBus (Option)

Power Supply: 100-240 V AC 50/60 Hz

Operation Temperature: +5 - +40 °C

Conveyor Velocity: 1.6 m/s
