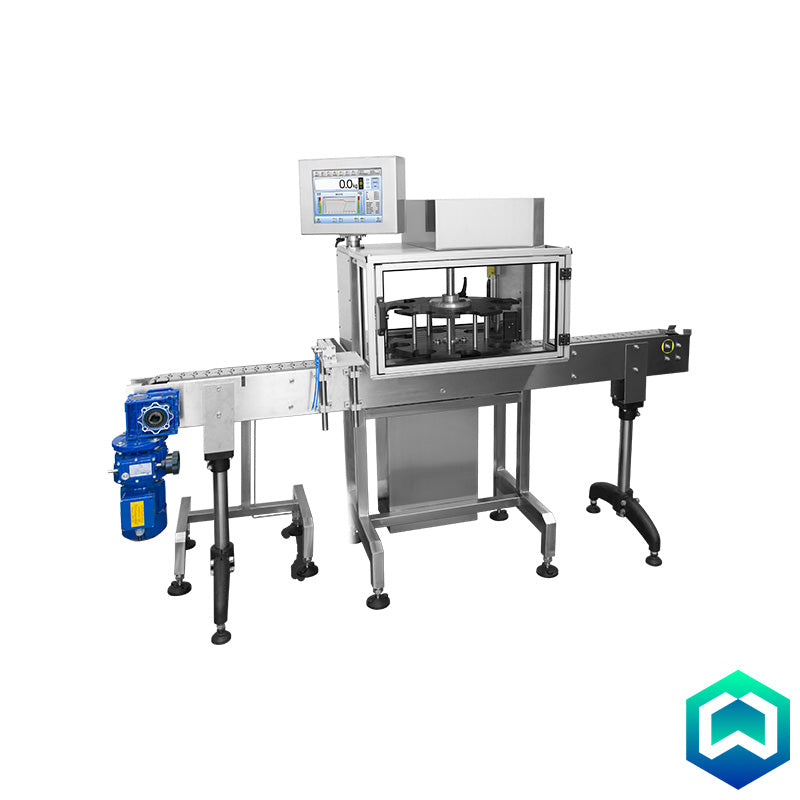

Radwag 1500 Automatic Rotational Checkweigher

Radwag DWR H Rotational Checkweigher

Designed for seamless integration into technological lines handling cylindrical packaged goods like aerosols, sprays, and bottles, the automatic rotational scale provides 100% control of product weight. Utilising an industrial computer running Windows Embedded software and an SQL database server, the system ensures stable and reliable operation even in harsh industrial environments. Its intuitive graphic touchscreen interface simplifies operation, while the pneumatically powered rotational mechanism, mounted over existing conveyor belts, guarantees durability and ease of installation.

Product Details

Targeted Application and Regulatory Compliance

This rotational scale is specifically designed for controlling cylindrically shaped single packages, typically with diameters between 35-66mm (with options for other diameters). It adheres to regulations on the Control of Prepacked Goods, making it ideal for industries such as chemical, pharmaceutical, distilling, and food processing. By ensuring accurate weight verification, the scale helps maintain product quality and compliance.

Advanced Functionality and Data Management

The automatic rotational scale offers a comprehensive suite of functions for efficient production monitoring and quality assurance. Key features include 100% in-line control, automatic discrimination of out-of-tolerance goods, real-time statistics, a built-in line performance meter, and automatic report generation with PDF export. Definable access levels enhance security, while remote start/stop functionality and line congestion/empty line detection optimise operational efficiency. The system also facilitates data acquisition, cooperation with computer software, and seamless integration with other processing line devices.

Robust Technical Specifications and Peripheral Device Integration

Built for industrial durability, the system features an industrial-grade computer, a graphic touchscreen, SQL database servers, and multiple interfaces (RS232, USB, Profibus, Ethernet). Its IP55 or IP65 rating ensures protection against dust and water. The scale is designed to integrate seamlessly with peripheral devices, including dosing devices with feedback, barcode scanners, and receipt printers. It supports remote control and data logging on external computers.

Flexible Implementation Options

To cater to diverse production needs, the rotational scale offers various implementation options. These include separate discrimination sets for "too light" and "too heavy" packages, sounder and warning tower lights, compatibility with printers and label printers, dual USB ports, Profibus and Modbus interface support, and a dedicated weighing record application.

Certifications

Specifications

Maximum Capacity: 1500 - 7500g

Readability [d]: 0.5 - 5g

Tare Range: -1500 - -7500g

Display: 12” graphic colour touchscreen

Operating Pressure: 6 - 8 bar

Protection Class: IP55, IP65

Operating Temperature: 0 – +40°C

Air Consumption: 1 liter/measurement

Capacity: max 80 pcs/min
