Minebea Dylight X-Ray Inspection System

Minebea Dylight X-Ray Inspection System

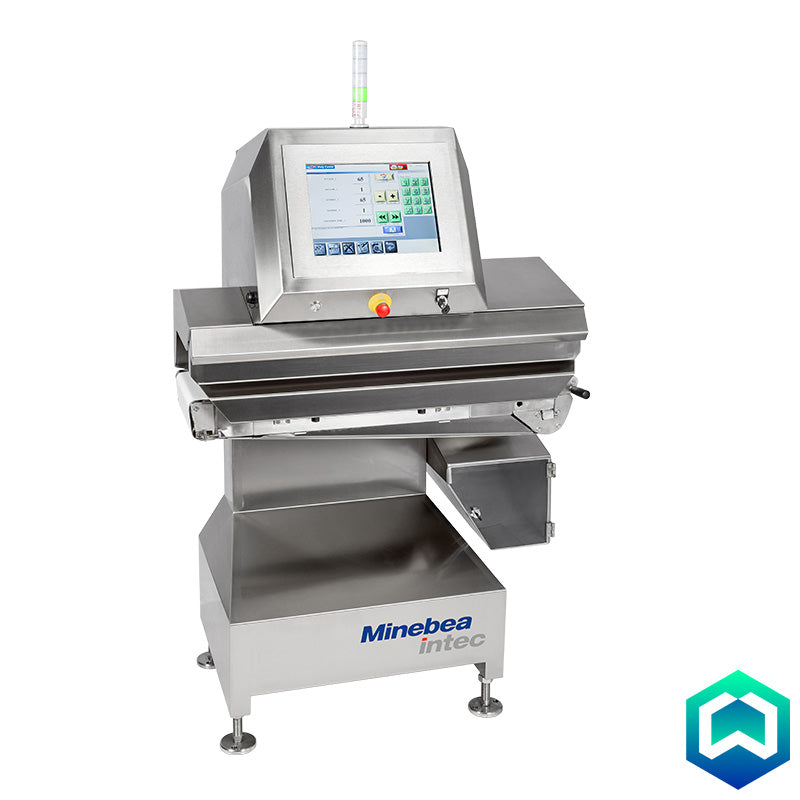

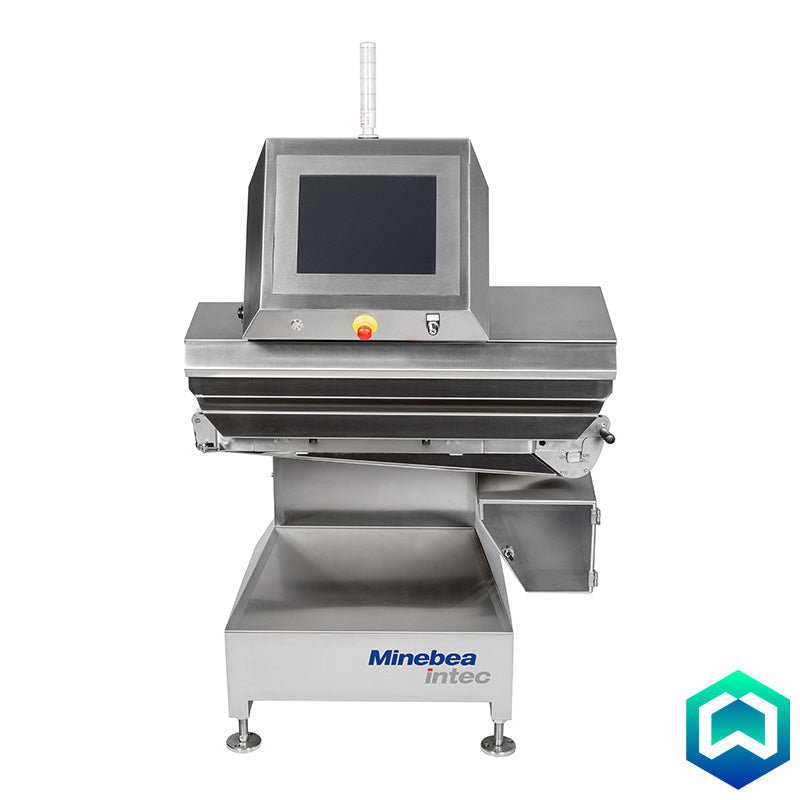

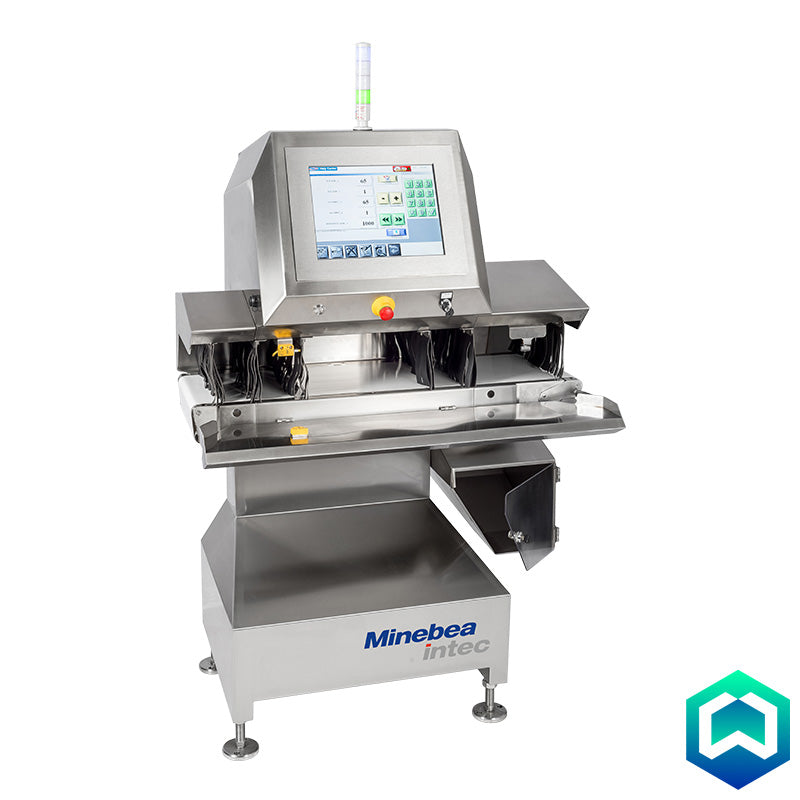

The Minebea Intec Dylight X-ray inspection system offers a revolutionary "Plug and Play" solution for manufacturers seeking to maximise product safety within limited production space. Designed for the inspection of small, lightweight foodstuffs like snacks, energy bars, sweets, and crisps, Dylight provides extremely high levels of product safety, reliably detecting metal, stone, plastic, bone, and glass foreign objects while efficiently removing imperfect or contaminated products.

Product Details

Compact Design and Integrated Functionality

Dylight's defining feature is its exceptionally compact design, requiring only one meter of linear space within the production line. This "all-in-one" unit integrates all necessary functions, including a separator and run-off container, eliminating the need for additional equipment and streamlining installation. This space-saving design makes Dylight ideal for integration into existing production environments, even those with tight spatial constraints.

User-Friendly Operation and Seamless Network Integration

Beyond its compact footprint, Dylight prioritises operational efficiency and ease of use. The intuitive user interface minimises operating errors, allowing for quick and convenient configuration of new products, thereby increasing overall operating time. Furthermore, the system is designed for seamless integration into existing networks via SPC@Enterprise, OPC-UA, ModBus, and Ethernet, facilitating data sharing and remote monitoring.

Uncompromising Product Safety

Finally, Dylight's core strength lies in its unwavering commitment to product safety. The system boasts the highest degree of detection sensitivity, ensuring that even the smallest foreign objects are reliably identified and removed. This commitment to quality and safety, combined with its compact design and user-friendly operation, makes Dylight a valuable asset for any food production line.

Certifications

Specifications

X-ray power: 65 kV 1 mA

Detector resolution: 0.8 mm (standard) | 0.4 (optional)

Belt speed range: 10 to 49 m/min (with drum motor)
Approvals: CE UL

Safety locks: SIL 3 Category IV PL e, magnetic

User interface: 15-inch touchscreen

Operating temperature: +5° to 35°C

Machine cooling: Air cooling IP 54

Relative air humidity: 20% to 90%, no condensation

Digital outputs: 16 available

Digital inputs: 16 available

USB port: Yes

Network connection: Ethernet

Compressed air: 5.5 to 6.9 bar

Radiation safety: FDA CFR 21 part 1020.40

International protection class: IP54 (complete system IP65 (in detection area)

Electrical supply: 230 VAC ± 10% 50/60 Hz (standard) / 190 to 240 VAC 50/60 Hz (optional)

Conveyor height: 800 mm (+200 mm)

Conveyor width: 275 mm

Conveyor belt: FDA approved

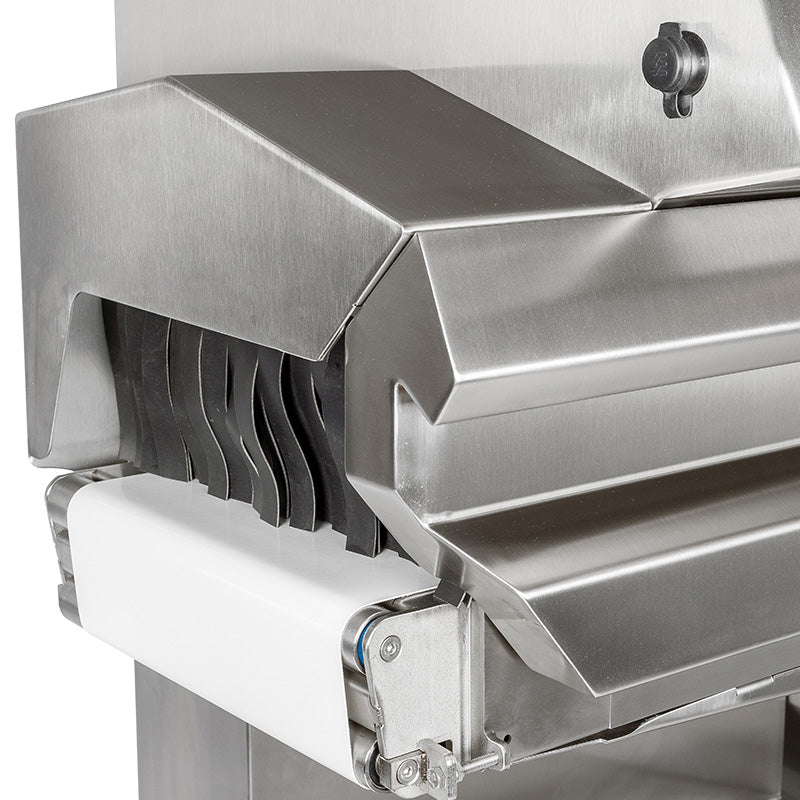

Safety curtains: Lead-free

Languages available: German, English, Italian, French, Polish, Spanish, Hungarian (Chinese and Korean on request)
