MCW09 Crane Scales - Dini Argeo Professional Series - Capacities up to 50,000kg

£1,302.00 £1,445.00

Model

MCW09 Crane scales from Dini argeo available in capacities up to 50,000kg. All models are available as standard or trade approved, please contact us for best prices on all models.

Main Features

  • Single security system, for the lifting and the weighing of the load.
  • In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.

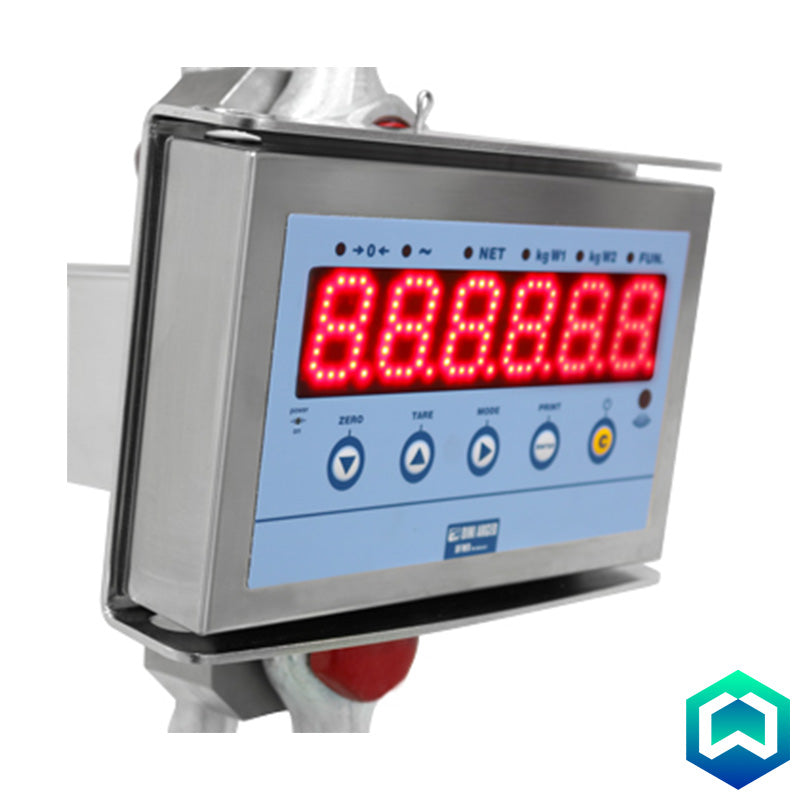

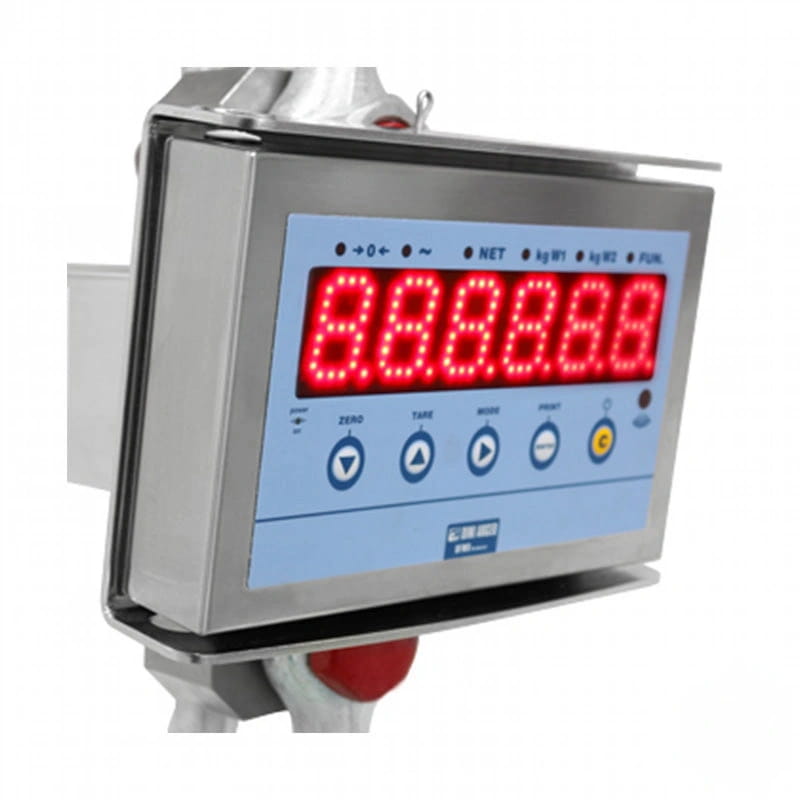

  • Extremely bright large red DOT LED 40mm display, which guarantees a perfect visibility of the weight from any angle, also from a long distance with direct sunlight.
    Usable indoors as well as outdoors, great visibility also in full sunlight.
  • Adjustable brightness intensity.
  • Sturdy STAINLESS steel structure, with IP67 protection degree of the load cell and the electronics, against dust and sprays.

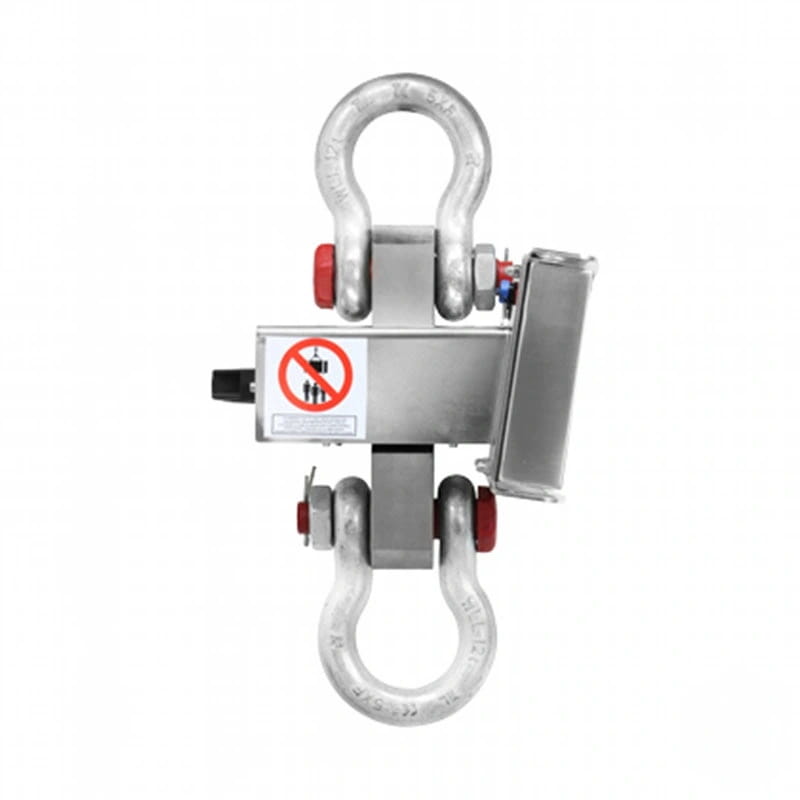

  • All MCW09 Crane Scales fitted with approved galvanised shackles:
    GR6 for MCW09T3
    GR6 for MCW09T6
    GR9 for MCW09T9
    GR12 for MCW09T12
    GR17 for MCW09T17
    GR25 for MCW09T25
    GR35 for MCW09T30
    GR55 for MCW09T50
  • Extremely reduced distance between upper and lower shackles.
  • Precision: +/- 0,05% on F.S. for 3T to 9T models
  • Precision: +/- 0,1% on F.S. for 12T to 50T models
  • 5-key waterproof keypad: ZERO, AUTOMATIC TARE, MODE, PRINT, and ON/OFF.
  • Programmable digital filter, for an excellent weight display in any working condition.
  • Programmable automatic switch-off function, either through keypad or remote control.
  • Fitted with radio-frequency 6-key remote control, configurable as simple automatic tare or as a remote keypad.
  • Configured for an 868MHz radio interface or WiFi, for connection to PC or to a remote terminal and printer.
  • Rechargeable battery, with an average life of about 30 hours.
  • Configured for a second optional extractable battery for 24/7 continuous use.
  • Fitted with 230Vac 50 Hz battery charger.
  • Programmable digital calibration and Set-Up directly from the keypad or from PC through Dinitools.
  • Operating temperature range: -10/+40 ºC.

Packing is Included in the Price
For complete protection against scratches and bumps during transportation. The MCW09 crane scales are shipped inside a sturdy wooden case which is custom made (MCW09T12-1, MCW09T17-1, MCW09T25-1, MCW09T30-1, MCW09T50-1 versions).

Selectable Functions

  • PEAK (maximum value read).
  • HOLD (lock of the displayed weight).
  • Weighing totalization.
  • lb/kg/N conversion (see DFW weight indicators for more functions).
  • +/- check-weighing.
  • Percentage weighing.
  • Counting.
  • Peer-to-peer.
  • High Resolution Weighing x 10.

Options (only available at time of placing order)

  • Radio frequency weight transmission to remote indicator, up to 70m indoors.
  • 868Mhz radio interface.
  • WI-FI interface.
  • Remote weight indicator connected in radio frequency, with the printer or other accessories.
  • ACCREDIA calibration certificate according to OIML/ASTM standards.

MCW09 Crane Scales - In Use
https://www.youtube.com/watch?v=5tlKPGYK_0o&t=1s
Remote Control Functions

  • The crane scale is fitted with a radio-frequency remote control which allows to do the Zeroing; the tare; enable / disable functions; printing; switching-off the crane scale.

Please click here for the MCW09 datasheet .....

For the Crane Scale Catalogue please click here
