"KMB4" Box With Passive Safety Zener Barriers, For ATEX Environments

By Dini Argeo

The KMB4 range provides ATEX-certified passive Zener barriers for the intrinsically safe connection of up to 4 × 350 Ω load cells in Zone 1 gas and Zone 21 dust hazardous areas. Available as a complete kit of three barriers in an IP65 ABS enclosure (KMB4), or as individual DIN rail barriers for the supply (ZBPW), signal (ZBSG), and sense (ZBSN) lines.

Model
£915.00
Product Information

KMB4 — Passive Safety Zener Barriers for ATEX Load Cell Connections

The KMB4 range provides ATEX-certified passive Zener barriers for the intrinsically safe connection of load cells to weighing systems in hazardous areas. Available as a complete kit of three barriers housed in a ready-to-install IP65 ABS enclosure (KMB4), or as individual DIN rail barriers for supply (ZBPW), signal (ZBSG), and sense (ZBSN) lines, the range offers flexible configuration for Zone 1 gas and Zone 21 dust environments.

Key Features

  • Supports connection of up to 4 × 350 Ω load cells per barrier set.
  • Three dedicated barriers protect the supply, signal, and sense lines independently for maximum signal integrity.
  • Individual barriers (ZBPW, ZBSG, ZBSN) are suitable for DIN rail mounting in a safe area or installation inside an explosion-proof enclosure.

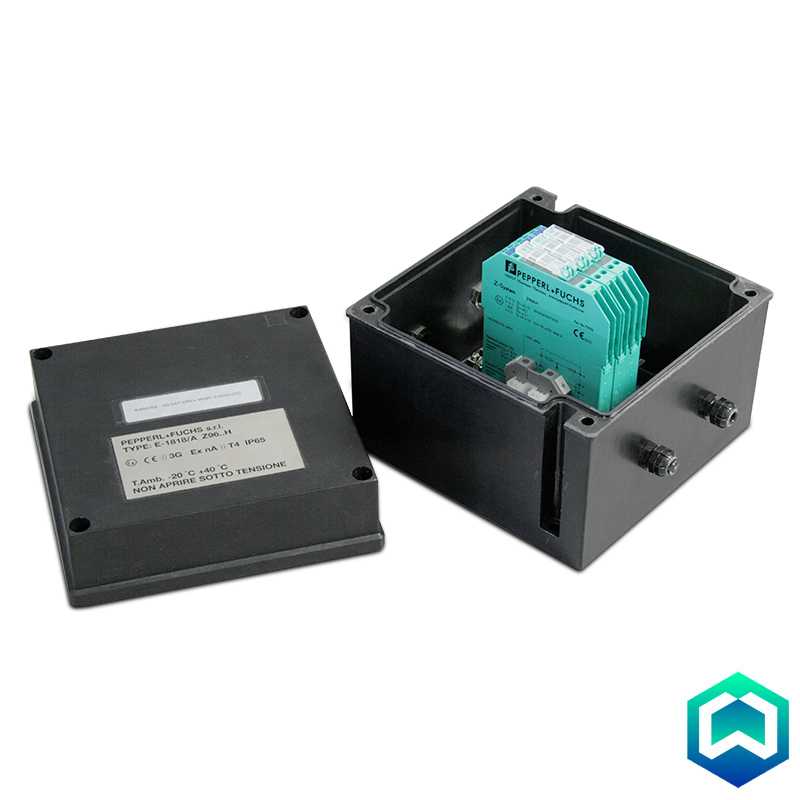

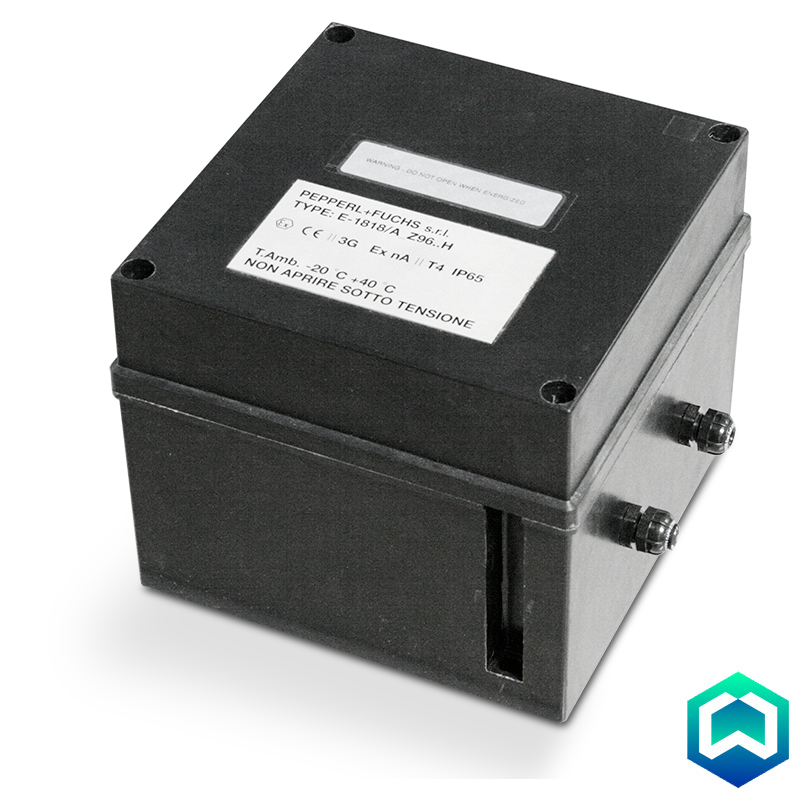

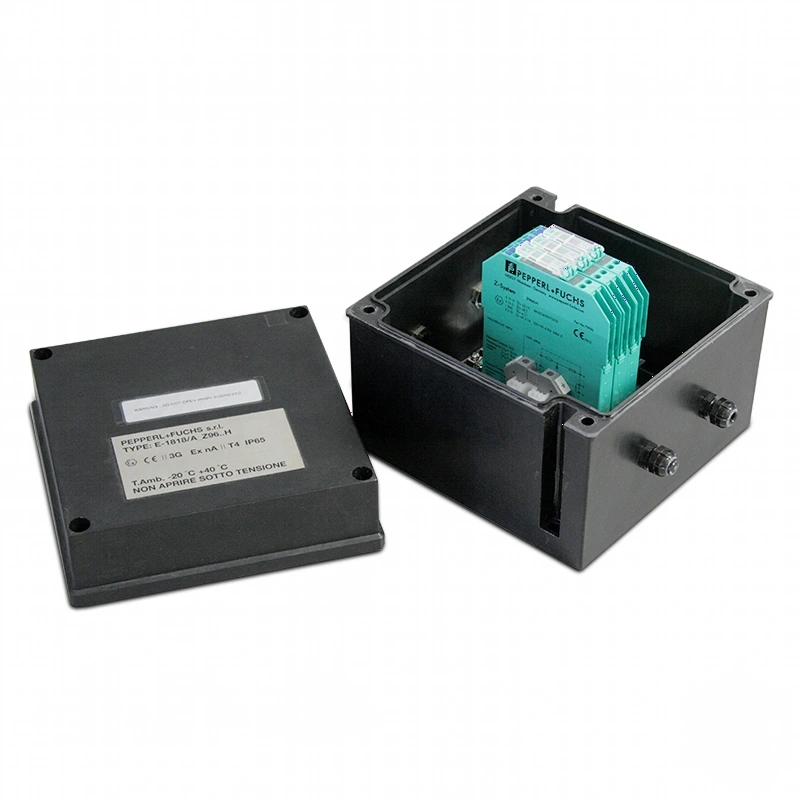

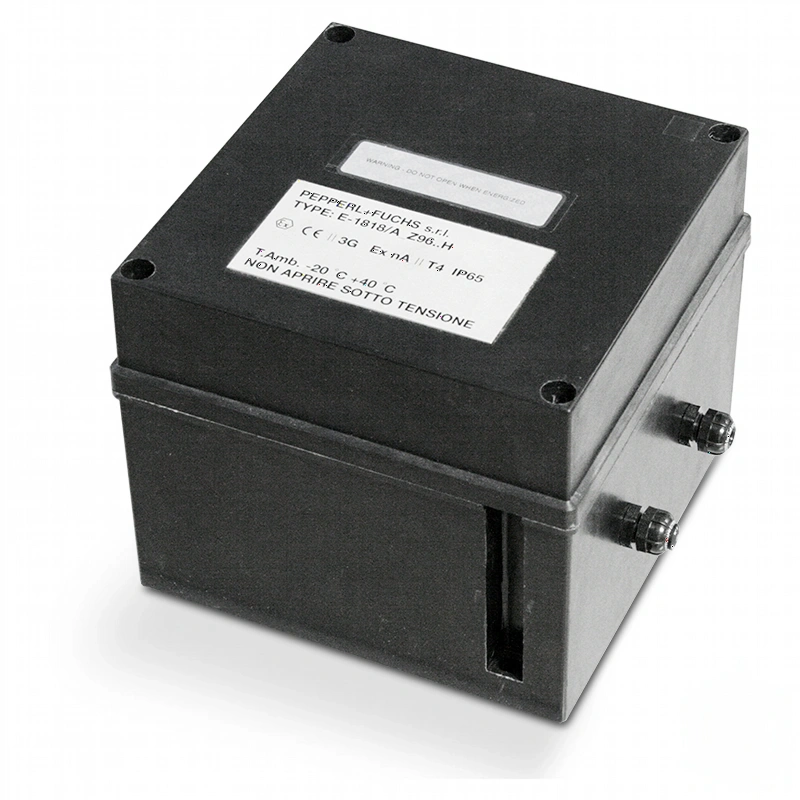

  • KMB4 kit provides all three barriers pre-installed in an ATEX-certified IP65 ABS enclosure — ready for direct field installation.
  • All barriers carry ATEX II (1) GD marking for Zone 1 gas and Zone 21 dust environments.

Available Models

  • KMB4 — Kit of 3 Zener barriers (ZBPW + ZBSG + ZBSN) in an IP65 ABS enclosure. ATEX marking: II 3(1)G Ex nA <ia Ga> IIC T4 Gc (−20 °C ≤ Ta ≤ +40 °C) for gas; II 3(1)D Ex tb <ia Da> IIIC T130 °C Dc IP65 (−20 °C ≤ Ta ≤ +40 °C) for dust.

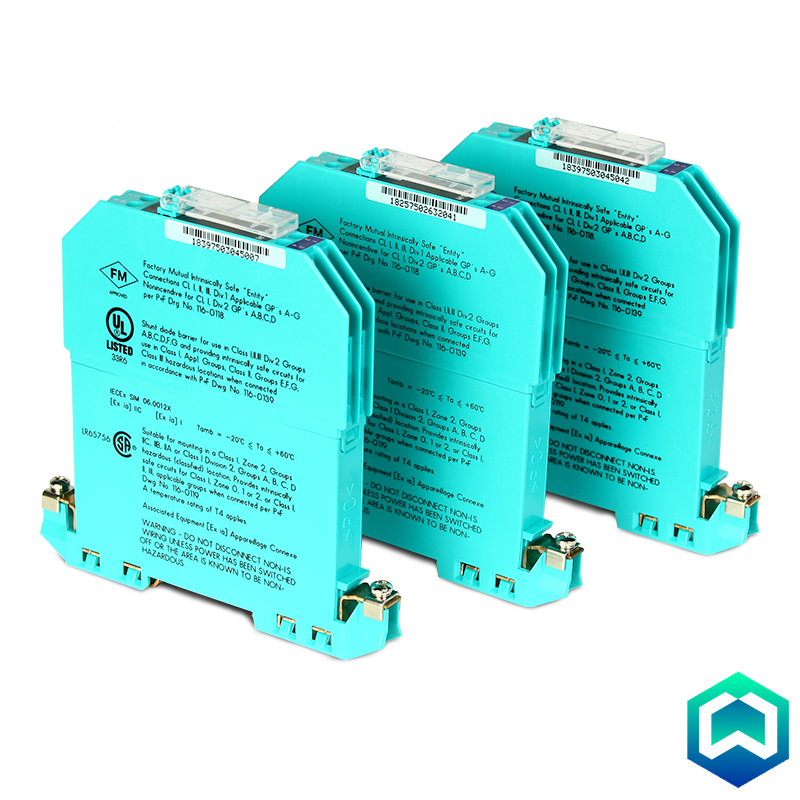

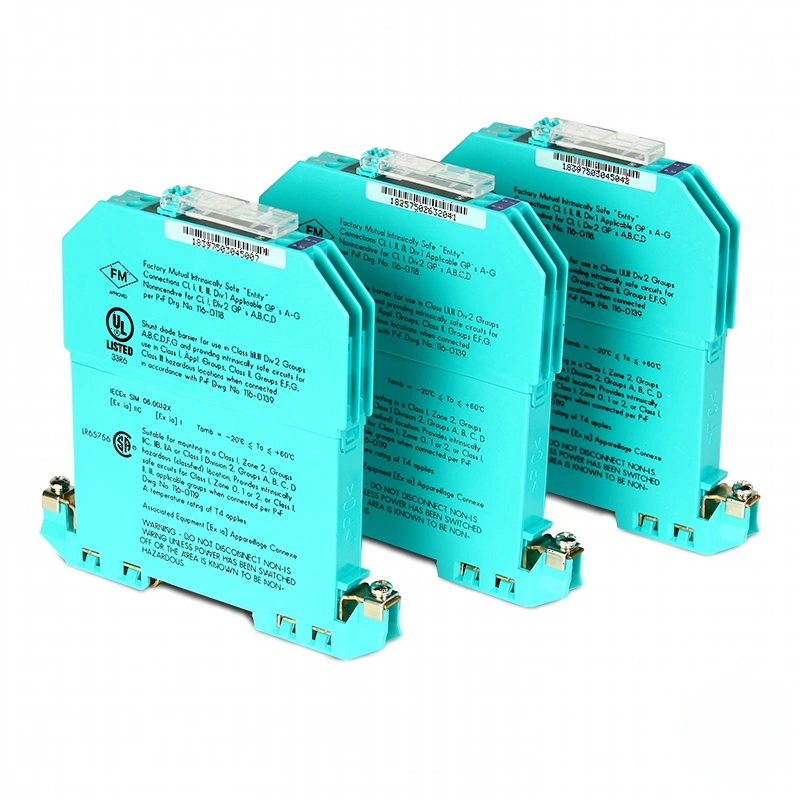

  • ZBPW — Single Zener barrier for load cell supply. DIN rail mount. ATEX II (1) GD <Ex ia Ga> IIC <Ex ia Da> IIIC.
  • ZBSG — Single Zener barrier for load cell signal. DIN rail mount. ATEX II (1) GD <Ex ia Ga> IIC <Ex ia Da> IIIC.
  • ZBSN — Single Zener barrier for load cell sense. DIN rail mount. ATEX II (1) GD <Ex ia Ga> IIC <Ex ia Da> IIIC.

Single Channel Electrical Parameters

Signal & Sense Barrier (ZBSG / ZBSN) — Um = 250 V:

  • Fuse: 50 mA  |  Uo: 17.4 V  |  Io: 25 mA  |  Po: 0.11 W
  • Co: 0.346 µF  |  Lo: 56.88 mH  |  Rmin: 705.6 Ω

Supply Barrier (ZBPW) — Um = 250 V:

  • Fuse: 100 mA  |  Uo: 24 V  |  Io: 164 mA  |  Po: 0.98 W
  • Co: 0.125 µF  |  Lo: 1.32 mH  |  Rmin: 147 Ω

Note: Combining two or more Zener barriers classified (1)GD <Ex ia> requires the overall assembly marking to be upgraded to (2)GD <Ex ib> in accordance with EN 60079-14.
Specification

Signal & Sense Barrier (ZBSG / ZBSN)

  • Maximum Security Voltage (Um): 250 V
  • Fuse: 50 mA
  • Uo: 17.4 V | Io: 25 mA | Po: 0.11 W
  • Co: 0.346 µF | Lo: 56.88 mH | Rmin: 705.6 Ω

Supply Barrier (ZBPW)

  • Maximum Security Voltage (Um): 250 V
  • Fuse: 100 mA
  • Uo: 24 V | Io: 164 mA | Po: 0.98 W
  • Co: 0.125 µF | Lo: 1.32 mH | Rmin: 147 Ω

Load Cell Compatibility

  • Maximum load cells: 4 × 350 Ω
  • Protected lines: Supply, Signal, Sense

ATEX Certification — Individual Barriers (ZBPW / ZBSG / ZBSN)

  • Marking: ATEX II (1) GD <Ex ia Ga> IIC <Ex ia Da> IIIC
  • Installation: DIN rail (safe area) or explosion-proof enclosure

ATEX Certification — KMB4 Enclosure Kit

  • Gas: ATEX II 3(1)G Ex nA <ia Ga> IIC T4 Gc | −20 °C ≤ Ta ≤ +40 °C
  • Dust: ATEX II 3(1)D Ex tb <ia Da> IIIC T130 °C Dc IP65 | −20 °C ≤ Ta ≤ +40 °C
  • Enclosure material: ABS | Protection: IP65
  • Weight: 2 kg

Standards & Compliance

  • EN 60079-14 (Electrical installations in hazardous areas)
  • ATEX Directive compliant
