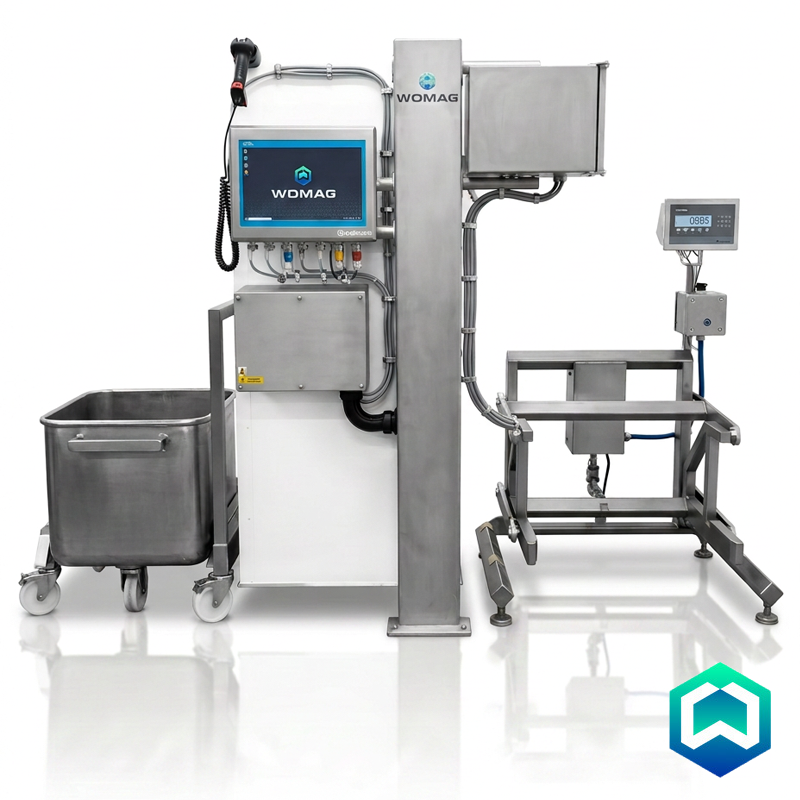

Eurobin Weighing Scale with Labelling and Traceability

Accurate Hygienic Weighing for Eurobin Environments

The Eurobin Weighing Scale is a purpose-built solution for accurate, repeatable bulk weighing in food processing, pharmaceutical, and chemical production environments. Designed to work directly with 200 and 300 litre Eurobins, the system integrates into existing workflows to minimise handling, improve throughput, and support compliance with hygiene and safety standards.

Manual and Pneumatic Configurations

The Eurobin Weighing Scale is available in two configurations to suit different operational requirements. The manual model is a freestanding unit available in 250 kg or 350 kg capacity, providing straightforward weighing of product in 200 or 300 litre Eurobins. The pneumatic model — suitable for a nominal capacity of up to 350 kg — improves on both hygiene and operator safety by eliminating manual lifting and reducing contamination risk during the weighing process.

DFWK HYGIENX Weight Indicator

Each system is paired with the Dini Argeo DFWK HYGIENX Multifunctional Weight Indicator — an IP68/IP69K-rated, AISI 316 stainless steel indicator built to withstand high-temperature, high-pressure washdown. Rugged and operator-friendly, the DFWK HYGIENX is well suited to demanding hygienic production environments.

Weight Indicator Functions

The DFWK HYGIENX supports a range of weighing and quality control functions suited to production line applications:

• Standard weighing mode
• Over/under checkweighing
• Parts counting with APW (average piece weight) function — accuracy increases with added weight
• Weight targets with easy configuration
• Standard USB host port for straightforward data collection
• Dosing for recipe mixing

Labelling, Traceability, and Multi-Application Capability

This variant of the Eurobin Weighing Scale integrates OCM-PRO labelling and traceability functionality, extending the system beyond simple weighing into full production management. It handles average weight, catch weight, ERP/traceability, and recipe management — making it suited to operations where compliance, audit readiness, and process control are essential.

Hygiene and Configuration

The OCM-PRO platform is built with hygiene as a top priority, featuring full stainless steel construction (AISI 304 standard, with optional 316), an open structure for effortless cleaning and rapid drying, and IP54 to IP69K protection ratings. The system supports a wide array of screen sizes, printers, scales, scanners, indicators, and software modules, allowing configuration to your specific requirements.

From Price Calculation to Full Traceability

The system excels across a range of food industry applications:

• Precise price calculation based on weight
• Best-by date calculation based on product type, packaging, and fresh or frozen status
• Cooking time calculation based on product, size, and weight
• Full traceability and audit trail for food safety compliance

Label Printing Options

The system supports both direct thermal (DT) printing for short-term labelling and thermal transfer (TT) printing for long-term label durability. It is compatible with any Ethernet printer with Windows drivers, with the Honeywell PM45 industrial printer offered as standard — featuring WWAN connectivity and a rugged all-metal design. Supported media specifications:

• Maximum media width: 152 mm
• Printable width: 108 mm
• Roll diameter: up to 152 mm
• Label core sizes: 38–76 mm

Factory Traceability and Software Integration

Factory traceability tracks products from raw materials to finished goods, supporting compliance with HACCP, BRCGS, and FSMA. The integrated software covers inventory and stock management, order processing, recipe and batch management, automated labelling, dispatch, and audit readiness. The system integrates with existing logistics and distribution platforms and supports advanced label design software including BarTender® and Dev Express.

Innovation and Reliability

The OCM range platform includes a number of features designed for long-term reliability and ease of maintenance:

• Dini battery backup as standard
• AISI 316 stainless steel as standard
• Standard Ethernet interface for network connectivity
• Customer-disconnectable weighing equipment for simplified maintenance
• Integrated Dini Tools for remote support and diagnostics
• "Stand for Life" design for simple upgrades and component exchange
• Fully sealed electrical panel with IP68-protected connections

Certifications and Support

UKCA/CE-M and Factory Trade Approved. Backed by a 2-year warranty, rapid service exchange, and 24/7 remote assistance. Comprehensive online user support and video guides are provided as standard.

WOMAG Support

Contact us to discuss your specific capacity, bin size, labelling, or traceability requirements. All WOMAG systems are backed by UK-based technical support to keep your operation running with minimal disruption.
