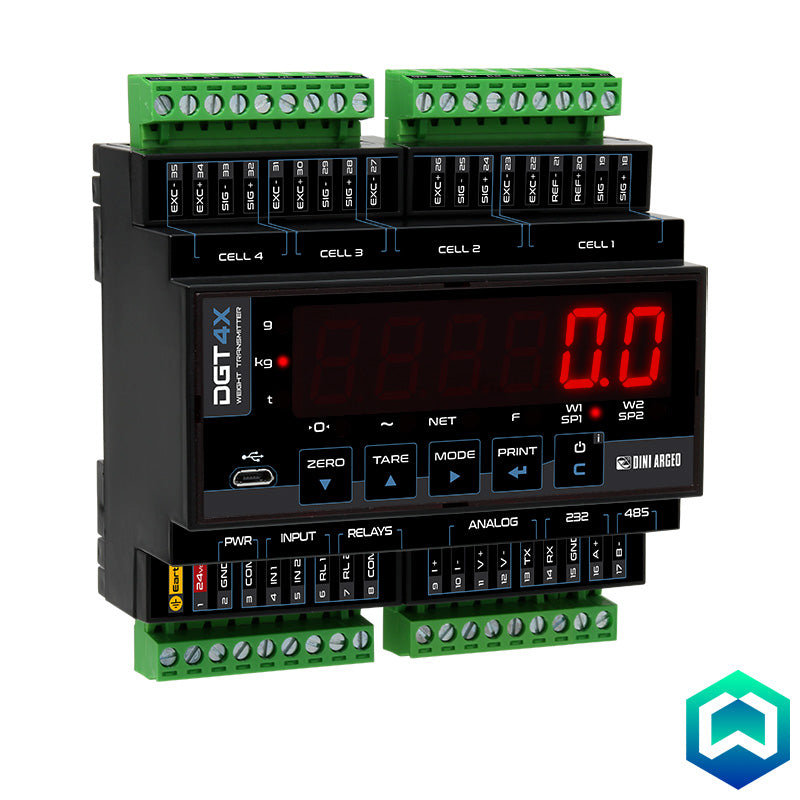

Dini Argeo DGT4X High Speed Weight Transmitter

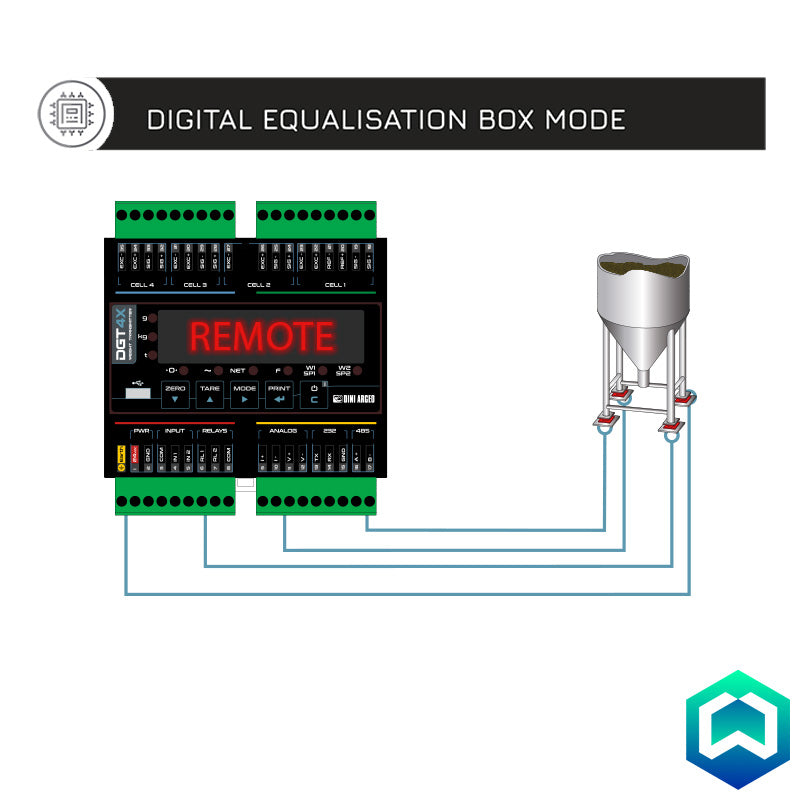

Dini Argeo DGT4X High Speed Weight Transmitter - Equalisation Box Mode

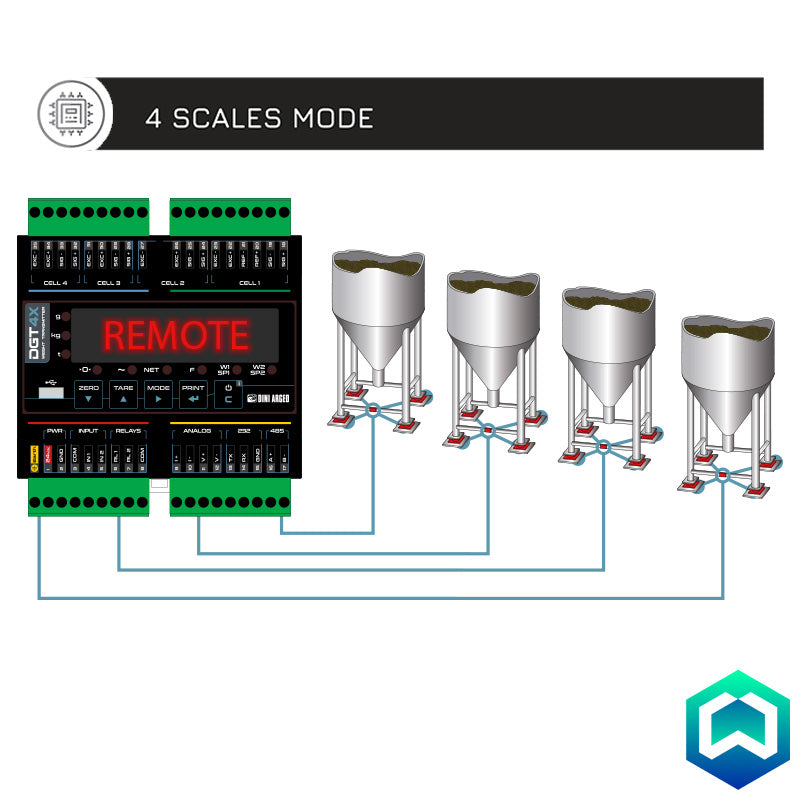

Dini Argeo DGT4X High Speed Weight Transmitter - 4 Scales Mode
Dini Argeo DGT4X High Speed Weight Transmitter - Interface

Dini Argeo DGT4X High Speed Weight Transmitter

By Dini Argeo

The Dini Argeo DGT4X high-speed weighing indicator offers exceptional versatility and speed, supporting numerous industrial protocols and processing up to 2600 weight readings per second. It features enhanced stability, simplified installation, and comprehensive diagnostics through a web server and PC software. With a clear display, intuitive menu, and individual load cell diagnostics, it ensures reliable and accurate weighing, complying with international standards.

Product Information

Features:

  • Versatile Connectivity: Supports PROFINET I/O, ETHERNET/IP, ETHERCAT, MODBUS TCP, CANOPEN, DEVICENET, PROFIBUS, ANALOG OUTPUT, and RS485, ensuring compatibility with diverse automation architectures.
  • High-Speed Processing: Powered by a new, advanced processor, capable of processing up to 2600 weight readings per second. This enables extremely precise weight filtering, even with millisecond-level weighing times, maximising accuracy and speed.
  • Enhanced Stability: Features a redesigned cell feed circuit for superior weighing stability and a robust power supply circuit with industrial-grade protections.
  • Simplified Installation and Maintenance: Removable terminal blocks simplify wiring within electrical panels. A frontal micro-USB port allows for easy configuration, diagnostics, and data backup.
  • Comprehensive Diagnostics and Configuration:

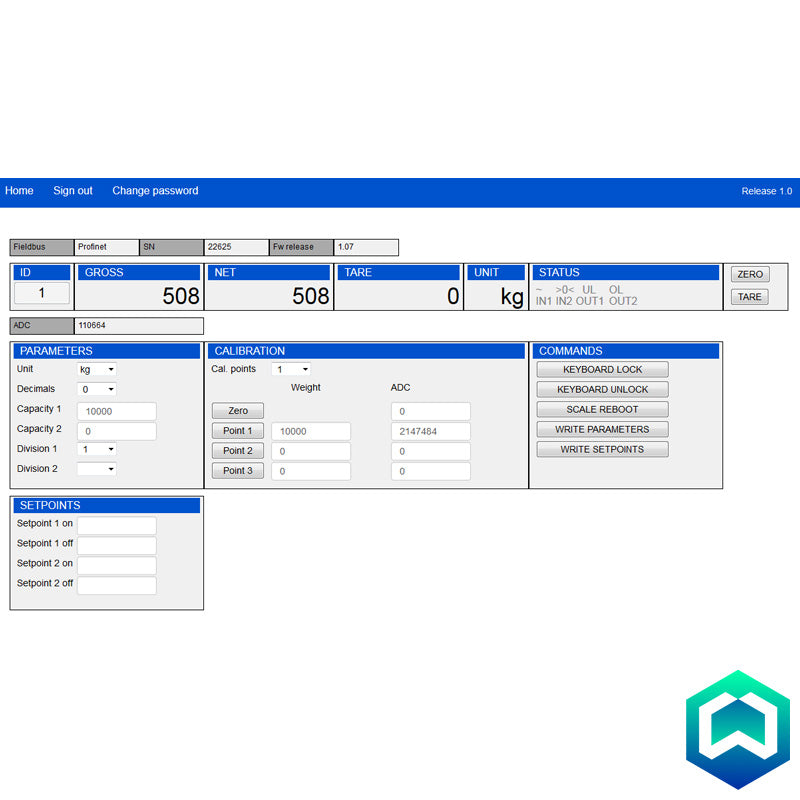

    • Integrated Web Server (PROFINET, ETHERNET/IP, MODBUS TCP/IP models): Enables remote diagnostics, calibration, and configuration via Ethernet.
    • XSPEED TOOL (PC Software): Provides an oscilloscope function for system diagnostics and allows for optimisation and customisation of weighing filters, maximizing speed and accuracy. Free download available.
    • 14.2 mm Display: Clear and easy-to-read display for local monitoring.
    • Simplified Configuration Menu: Streamlined menu for easy calibration and configuration.
  • Advanced Communication: RS485 communication port is standard across all versions. Supports up to 120 fieldbus updates per second.
  • Individual Load Cell Diagnostics: Allows for the reading and diagnostics of each connected load cell or scale, facilitating proactive maintenance.
  • Approvals: CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), Australian approval, ensuring compliance with international standards.

Applications:

  • Process control
  • Filling and dosing
  • Checkweighing
  • Dynamic weighing
  • Industrial automation
Specification

Power supply: 12-24Vdc

Converter: A/D 24 bit with 4 channel

Max scale number: 4

Load cells connection: 4 or 6 wires (with sense)

Operating modes:
- Digital junction box
- Multi-scale transmitter
- Single-scale transmitter

Selectable sampling rate: up to 2600 conv./sec

Fieldbus update rate: up to 120 Hz

Displaying: up to 800.000d

Signal sensitivity: 0,03 µV/d (0,3 µV/e)

Resolution: 3.000.000 counts

Linearisation: up to 8 points

Connectable load cells: up to 16 350 Ω cells

Fieldbus: Profibus, Profinet, EthernetIP, EtherCAT, EthernetIP, CANopen, DeviceNet, Modbus TCP/IP.

Serial ports:
- 1 Micro-USB port (device) for PC configuration with "Dinitools®" and "XSpeed Tool".
- 1 RS485 port
- 1 RS232 port (Mod. DGT4X / DGT4XAN)

Analog output: 16 bit (DGT4XAN Model) 4-20mA or 0-10Vdc.

Digital outputs: n. 2 configurable OUTPUTS

Digital inputs: n. 2 configurable INPUTS

Certifications:
- CE-M EN 45501
- OIML R76 (10000e or 3000 + 3000e) / R51 / R61 MID
- UL Listed (upon request)
- EU Type Examination Certificate (45501:2015)
- Australian legal for trade certificate of approval (NMI S788)

Case: ABS, for Din bar (106 x 56 x 118 mm)

Calibration:
- Theoretical (mV\V)
- With sample weights
- Remotely by WEB SERVER
- From the keyboard
- From PC with "Dinitools"

Keyboard functions:
Zeroing, Tare, Function mode, Manual data printing/sending, ON/Stand-by

Program functions:
Setpoint, High resolution, Peak, Alibi Memory, Unit of measure conversion, Unbalancing alarm, Broken load cell exclusion

Keyboard: mechanical with 5 keys

Display: 14,2mm red LED
Downloads

Please click here for the Dini Argeo DGT4X Weight Transmitter datasheet
