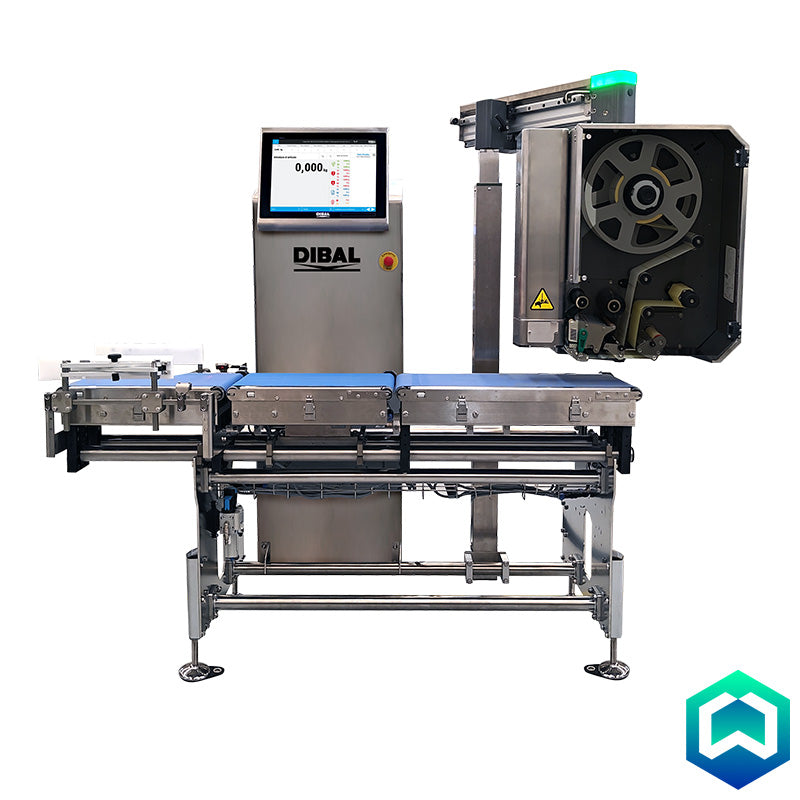

Dibal LS-5000 Automatic Weigh Price Labeller

Dibal LS5000 Automatic Weigh Price Labeller

The Dibal LS-5000 is a state-of-the-art weigh-labeling system engineered for high-speed, accurate weight control and labeling in industrial settings. Achieving speeds of up to 200 ppm, this system excels in efficiency and precision. It offers versatile labeling capabilities for fixed, variable weight, and price products, along with weight discrimination and generic traceability features. Compliant with EU Regulation 1169/2011 on food information, the LS-5000 ensures adherence to stringent labeling standards.

Product Details

Dibal LS-5000: High-Speed Weigh-Labeling System for Demanding Production Environments

The Dibal LS-5000 supports a wide range of barcodes, including EAN-8, EAN-13, EAN128, CODE 128, ITF-14, QR code, GS1 Datamatrix, and GS1 Databar, with the ability to print up to four barcodes per label. Equipped with a high-productivity air applicator and advanced PC electronics, the LS-5000 is MID-certified, guaranteeing approved equipment performance.

Precise Weighing and High-Speed Labeling

The LS-5000 offers both dynamic and static weighing options, with ranges tailored to various conveyor dimensions, from 1.5 kg/0.5 g to 15 kg/5 g. For other weight ranges, custom solutions are available upon consultation. The labeling system supports both Direct Thermal (DT) and Thermal Transfer (TT) printing, featuring a long-lasting 4” printhead with historical control. With resolution options of 8 or 12 dots/mm and a high printing speed of up to 300 mm/s, the LS-5000 ensures clear and efficient label production. The label applicator is a pneumatic piston type, with options for a 90º rotating applicator and “Air-jet®” air blowing for top labeling. The system supports top or side (front or back) label application, accommodating diverse production needs. Labels can range from L40 x W40 mm to L120 x W102 mm, with a maximum back paper width of 110 mm and a maximum label roll diameter of 300 mm.

Robust Construction and Advanced Connectivity

Constructed from high-quality AISI 304L stainless steel and anodised aluminium, the LS-5000 is designed for durability and hygienic operation. All belts are FDA-approved, with options for standard and high-speed, super-adherent belts, along with sliders for expulsion areas and guides made from stainless steel, anodised aluminium, and cestilene. The system features a 15” touch screen TFT console for intuitive operation, with adjustable height for the top labeller. Connectivity options include Ethernet TCP/IP, 2 RS-232, and 4 USB 3.0 ports, facilitating seamless data transfer and integration with other systems. The included PC software allows direct connection from any device on the network via Google Chrome, enabling data export to Excel or CSV formats.

Power and Integration Capabilities

The LS-5000 operates on electrical supplies of 230 V/50 Hz or 115 V/60 Hz, and requires compressed air with a maximum flow rate of 150 l/min at 6-8 bar. The system can be easily integrated with other Dibal equipment, including the LP-5000 manual weigh-price labeller, the GS-5000 batch collector (+LP-5000), and the MD-5000 metal detectors, creating a comprehensive and efficient production line.

Certifications

Specifications

Weighing type: Dynamic or static.

Ranges according to dimensions of the weighing conveyors:

  • 1,5 kg / 0,5 g with conveyors of 300 x W200 mm.
  • 3 kg / 1 g with conveyors of L300 x A200 mm and L400 x W280 mm.
  • 6 kg / 2 g with conveyors of L400 x W280 mm, L400 x W400 mm, L600 x W280 mm, L600 x W400 mm and L800 x W280 mm.
  • 15 kg / 5 g with conveyors of L600 x W400 mm, L800 x W280 mm and L800 x W400 mm.
  • For other weight ranges, please consult us.

Print type: Direct Thermal (DT) or Thermal Transfer (TT).

Printhead: Long-lasting 4” (historical control).

Resolution: 8 or 12 dots/mm.

High speed printing: Up to 300 mm/s.

Label applicator type: Pneumatic piston. In top labeller also possibility of 90º rotating applicator and “Air-jet®” air blowing.

Position of the label applicator:  Top or side (front or back, consult us).

Labels:

  • From L40 x W40 mm, up to L120 x W102 mm.
  • Maximum width of back paper: 110 mm.
  • Maximum label roll diameter: 300 mm.
  • Inside diameter of the label roll cardboard core: Ø76 mm (the cardboard joint must be the same width as the backpaper).

Structure: AISI 304L stainless steel and anodised aluminium.

Belts (all of them with FDA approval):

  • Standard.
  • High speed: super adherent.
  • Sliders: for expulsion areas.
  • Hygienic.

Guides: AISI 304L stainless steel, anodised aluminium and cestilene.

Console:

  • 15” touch screen TFT.
  • Adjusting the height of the top labeller from the console.

Communication:

  • Ethernet TCP/IP.
  • 2 RS-232.
  • 4 USB (3.0).

PC software:

  • Direct connection to the equipment from any device with access to the same network as the LS-5000 through the Google Chrome browser.
  • Data export to Excel or CSV.

Power supply & compressed air:

  • Electrical: 230 V and 50 Hz; 115 V and 60 Hz.
  • Air: max. 150 l/min (at 6-8 bar).

Possible integration with other equipment:

  • Dibal LP-5000 manual weigh-price labeller.
  • Dibal GS-5000 batch collector (+LP-5000).
  • Dibal MD-5000 metal detectors.
