360 Inspector® Vision Inspection System

360 Inspector®: Full-Surround Vision Inspection for Bottles, Cans, and Jars

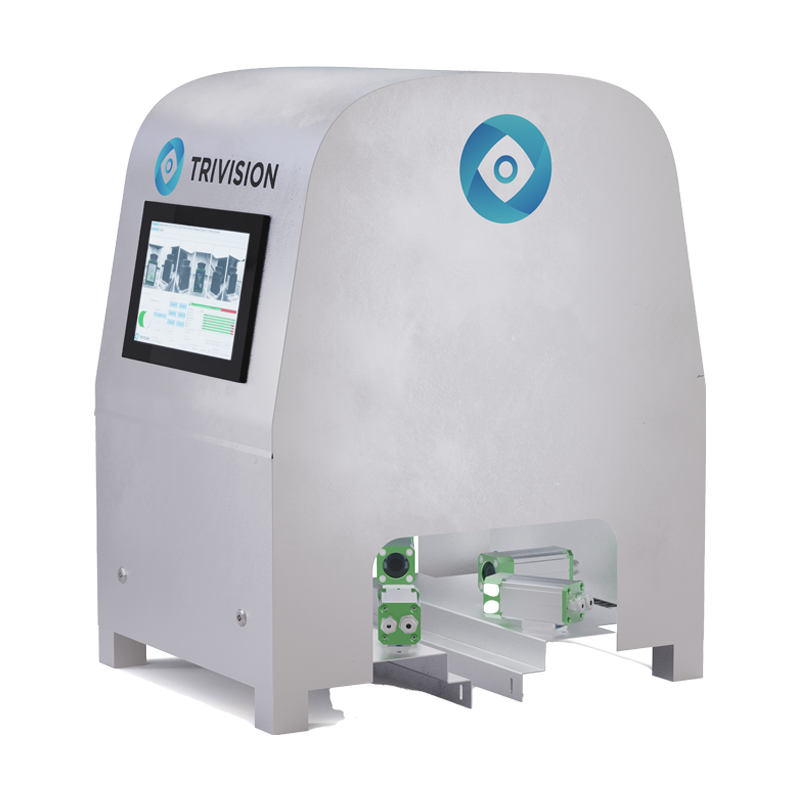

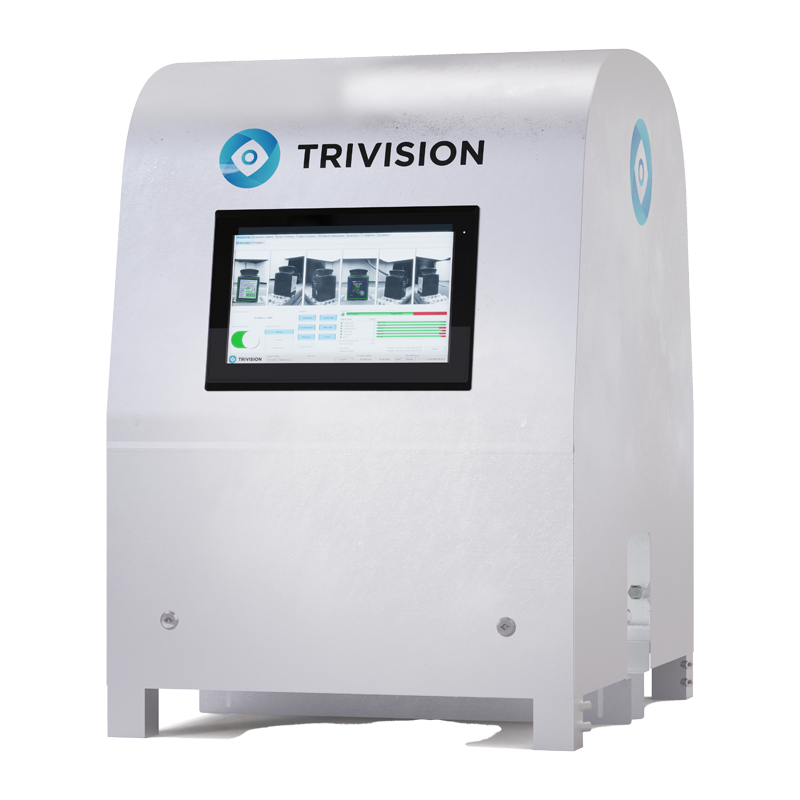

The 360 Inspector® from TriVision is a vision inspection system designed for products that require complete all-round coverage — including bottles, cans, and jars. Equipped with eight high-performance cameras, the system delivers six-camera 360-degree side coverage combined with dedicated top and bottom inspection in a single pass, enabling accurate, detailed quality assessment across the full surface of each product.

Complete 360-Degree and Top-to-Bottom Coverage

Six cameras provide seamless 360-degree inspection of the product body, while two additional cameras inspect from above and below. This eight-camera configuration eliminates blind spots and ensures that label defects, print errors, barcode failures, dents, seam irregularities, and expiry date issues are captured regardless of their position on the product. The result is a significant reduction in false positives and negatives, and consistent identification of every critical defect.

Wide Product Range and Configurable Design

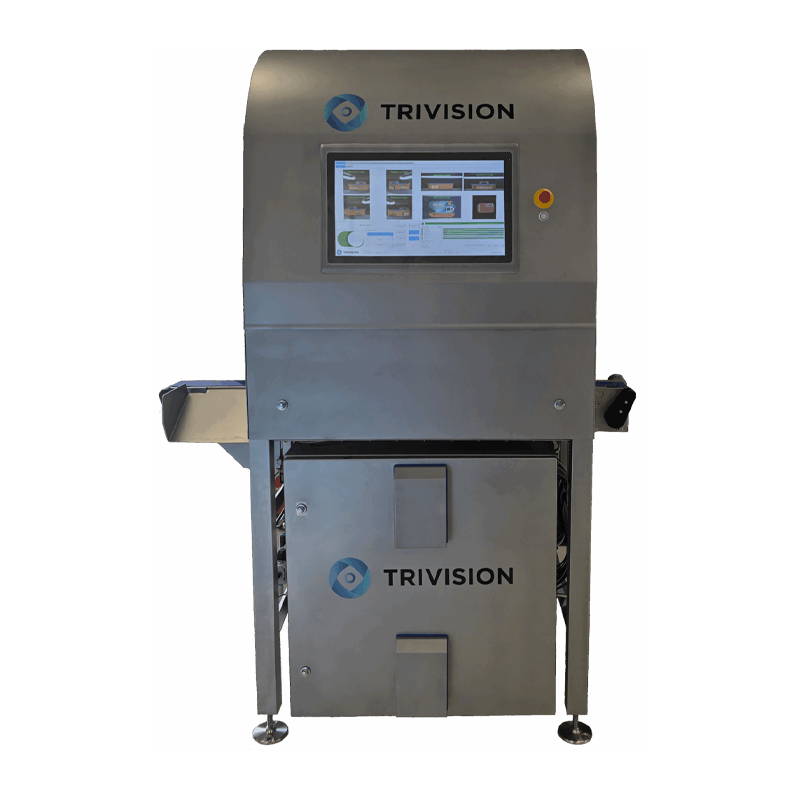

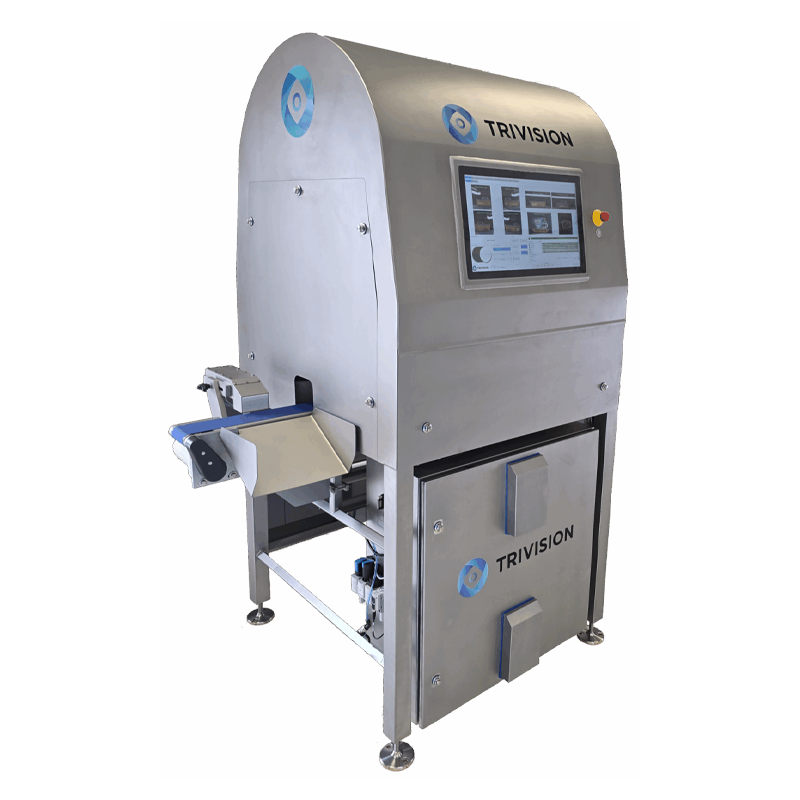

360 Inspector® is available in multiple configurations and can be supplied with or without a conveyor, providing flexibility to suit different production line layouts. The system handles a wide range of product formats — from label verification on marmalade jars to structural defect detection on metal cans — making it a versatile platform for food, beverage, and consumer goods producers.

Robust Construction for Demanding Environments

The camera housing is available in aluminium and PA as standard, with optional stainless steel AISI 316 for hygienic or washdown environments. The electrical cabinet is constructed from stainless steel AISI 304 or 316 and rated IP 66. Enclosure ratings of IP 65 as standard or IP 69K optionally ensure the system withstands demanding production conditions. Housing footprint is typically 1,000 × 1,000 mm, adjusted to suit the product range.

Industrial Computing with Cloud Intelligence

Running on Windows 11 IoT Enterprise LTSC with a compact industrial PC, 360 Inspector® provides intuitive operation via a 15.6-inch full HD multi-touch panel. OPC UA and REST communication protocols over Gigabit Ethernet enable integration with factory data systems, while cloud-based backup and Production Intelligence functionality deliver actionable quality data across production shifts and sites.

Maximum Efficiency for Round Product Inspection

By combining eight-camera all-angle coverage, configurable hardware, and cloud-connected production intelligence, 360 Inspector® reduces downtime, minimises false rejects, and provides manufacturers with the inspection data needed to maintain consistent product quality at production speed.
