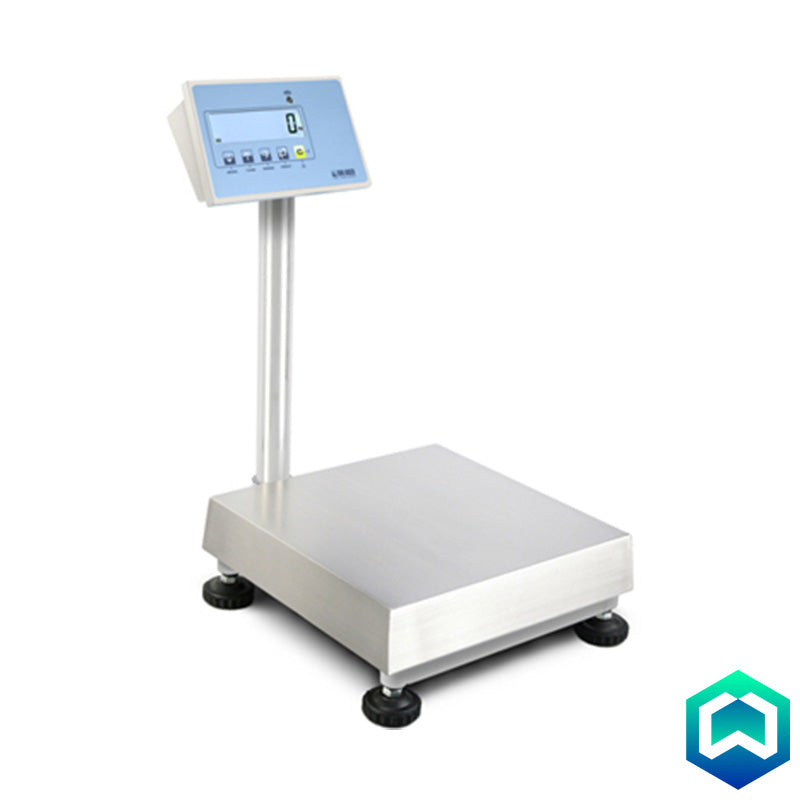

Dini Argeo "WALL-E INOX" Series Stainless Steel Bench And Floor Scales

The Dini Argeo WALL-E INOX is a high-precision, industrial-grade weighing scale designed for demanding environments. Its IP65-rated stainless steel construction ensures durability and easy cleaning, making it ideal for food processing, pharmaceutical, and laboratory applications.

Product Information

Features:

  • Precision Weighing: Equipped with an OIML R60 C3-certified load cell, the WALL-E INOX delivers accurate measurements with a 3000-division resolution.
  • Versatile Functionality: A wide range of functions, including net/gross weight, totalisation, formulation, counting, percentage weighing, and checkweighing, cater to diverse applications.
  • User-Friendly Interface: The backlit LCD display and intuitive keypad provide clear visibility and easy operation, even in challenging lighting conditions.
  • Customizable Settings: Configure the scale's settings and calibration parameters using the keypad or DINITOOLS software.
  • Robust Design: The stainless steel housing and adjustable feet ensure stability and durability in various settings.
  • Connectivity Options: RS232/RS485 ports enable seamless integration with computers, PLCs, and printers for data transfer and remote control.
  • Optional Features: Enhance the scale's capabilities with additional features like alibi memory and barcode printing.
  • Support column: height:
    • 350 mm in the "T" models;
    • 500 mm in the "Q" models;
    • 700 mm in the "X" models.

Selectable Functions:

  • X 10 high resolution visualization
  • Net/Gross or lb/kg conversion
  • Weighs totalisation
  • Formulation
  • Counting
  • +/- Check
  • Percentage weighing
  • Alibi (with optional interface)
  • HOLD (freezing the weight on the display)

Keyboard and Printing Functions:

  • KEYBOARD: Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching.
  • PRINTING: Configurable print layout with:
    - 4 heading lines
    - Gross-Tare-Net and ticket number
    - Date and time (only with DFCLK)
    - Print of bar-code 39.
Specification

Display: 25mm backlit LCD display with 6 high contrast digits and icons for showing the active functions

Construction: Stainless steel structure, with adjustable resting feet and level.

Platform Dimensions:

  • 300x300mm
  • 400x400mm
  • 600x600mm

Power Requirement: 110 - 240 VAC power supplier.

Downloads

Please click here for the Dini Argeo WALL-E INOX Bench and floor Scales datasheet.

Trade Approved
Model

£553.50
