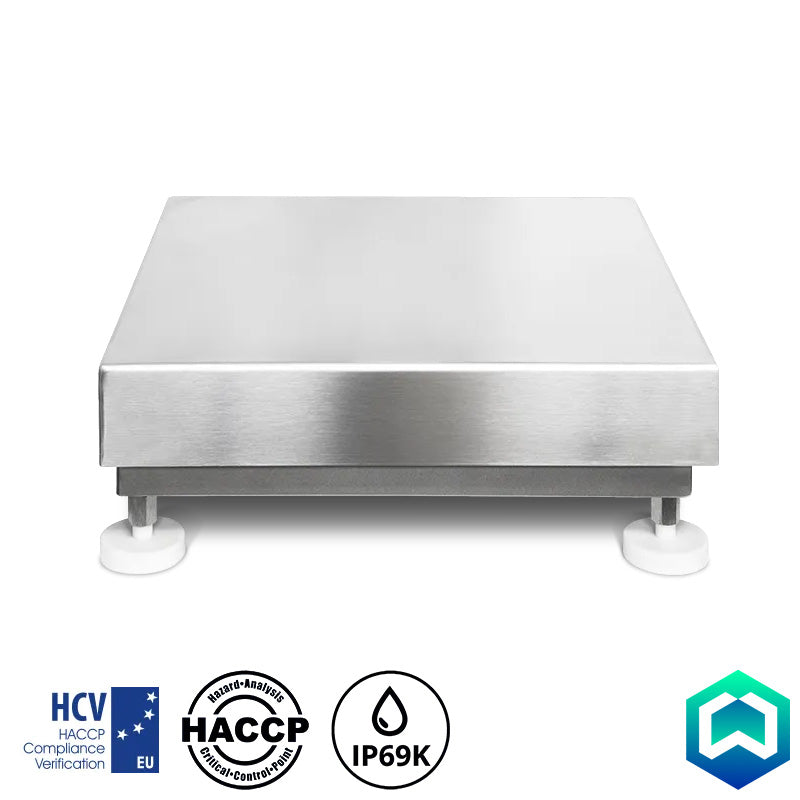

TE HygienX Stainless Steel Scale Base

£1,429.00 £1,585.00

Highlights:

  • An HCV-EU certified product for food environments compliant with the hygiene requirements of the HACCP standards.
  • IP68/IP69K rating, suitable for use in humid environments and for complete scale sanitisation using high-temperature and high-pressure water jets.
  • AISI 316L stainless steel structure designed to be opened for inspection with removable seals for easy sanitisation. Designed to prevent the accumulation of water and dirt residues.
  • Integrated bubble level.
  • Five limit switches for overload protection.
  • Non-slip feet for environments with high hygienic requirements, ideal for use on stainless steel counters even in the presence of water.

Technical Features:

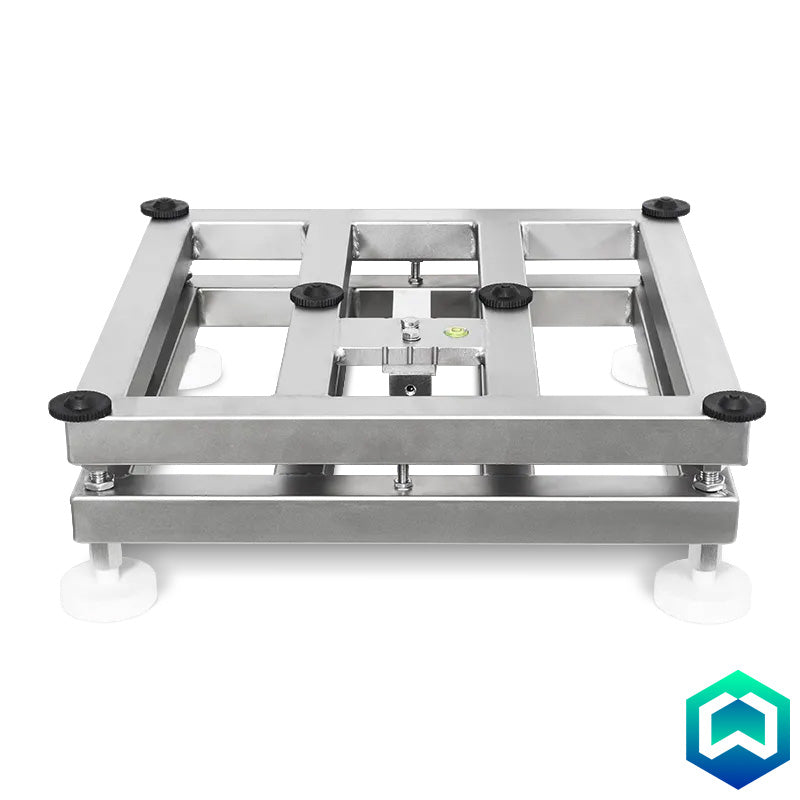

  • Tubular structure, mechanical parts, small parts and loading surface made of AISI 316L stainless steel.
  • Platform with continuous welding throughout.
  • Hermetically sealed stainless steel load cell with IP68/IP69K rating, suitable for use in wet environments. OIML R60 approved, with a 3-metre-long shielded cable. Note: The cable length is reduced to just 1 metre in combination with TCBI500-HGX column.
  • Direct connection of the load cell to the weight indicator, without connectors using a cable gland.
  • Sensitivity: 2mV/V +/- 10%.
  • Max. power supply: 15 Vdc.
  • Surface finish for food environments.
  • HCV laser marking for product identification.
  • HCV-EU certified loading surface for use in direct contact with food.

Main Options:

  • Optional column for Dini Argeo weight indicator, for integrated installation. Structure designed for easy cleaning, with comfortable support foot and ergonomic carrying handle. Shorter cell cable reduced from 3 metres to 1 metres.
  • Raising frames made of AISI 304 stainless steel.
  • AISI 304 stainless steel trolleys for mobile weighing stations.
  • Weight indicators made of AISI 316L stainless steel with IP69K rating.

Please click here for the Dini Argeo TE-HGX scale base datasheet …..

Please click here for the Dini Argeo HygienX Solutions datasheet …..
